Eicher 2070 E AC Chassis

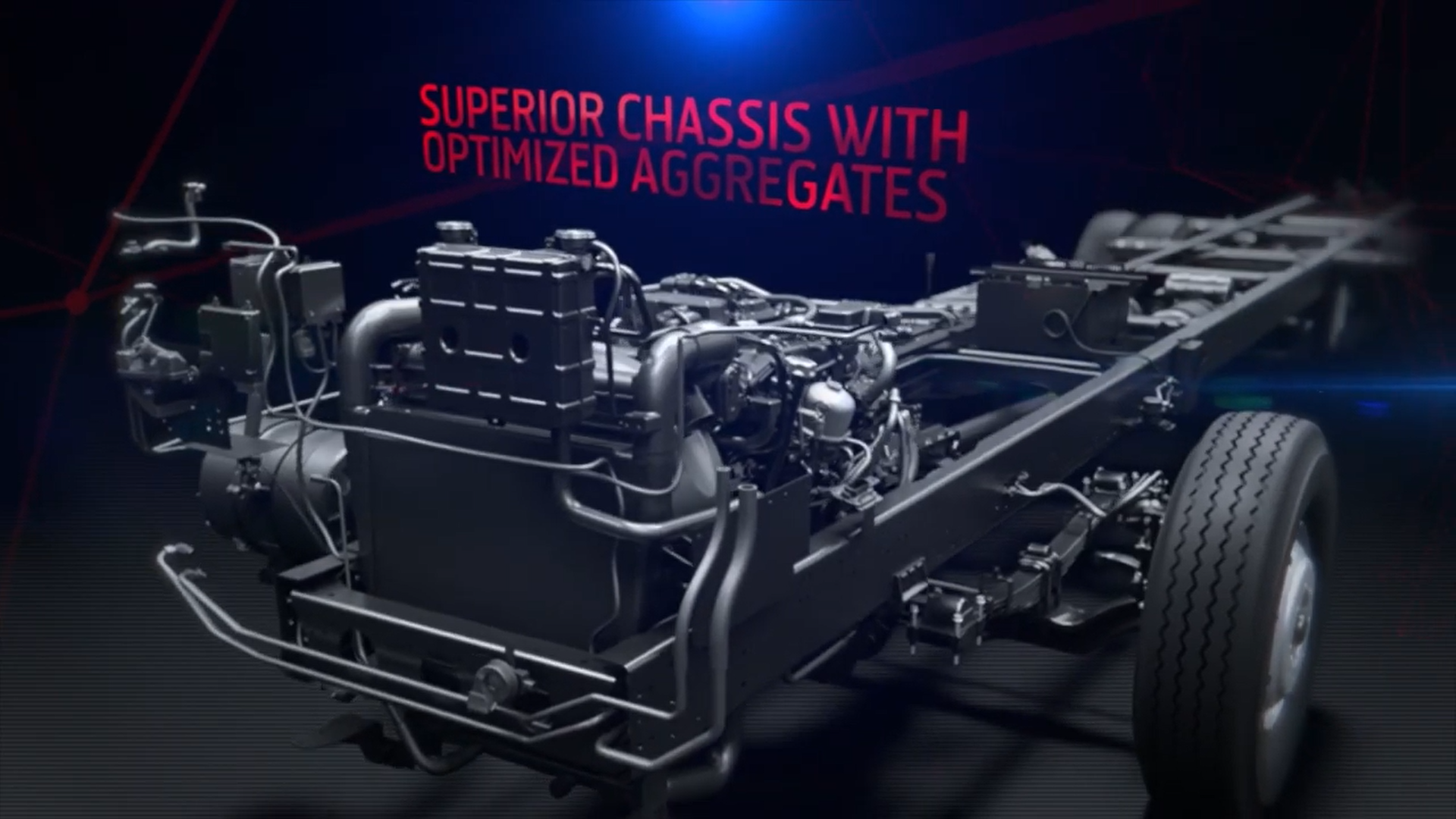

The all-new 2000 series chassis is designed to deliver best in class operating economics and superior on road performance, coupled with a lower maintenance costs leading to high profitability for its owners. Powered by advanced new E474 engine, Eicher chassis is smartly designed to deliver powerful performance without compromising on fuel efficiency.
GVW7.5 t
EngineE474
Power 105 kW
Torque400 Nm
Fuel TypeDiesel
- Specification
- Technology
| SPECIFICATIONS | 2070 E |
|---|---|
| Wheelbase | 3515 mm |
| Overall Length | 6534 mm |
| Overall Width | 1990 mm |
| Overall Height | 2480 mm |
| Ground Clearance | 187 mm |
| Front Overhang | 1024 mm |
| Rear Overhang | 1995 mm |
| Turning Circle Diameter | 13.1 m |
| Engine Make | E474 |
| Displacement (cc) | 2960 |
| Power | 105 kW @ 3200 Rpm |
| Torque | 400Nm @ 1200-2500 Rpm |
| Clutch | 310 mm |
| Transmission Make | ET35S5 |
| Transmission Type | Synchromesh (5SPeed+1Rev) |
| GVW | 7.5 t |
| Chassis Type | Domex 650 |
| Chassis dimension | 200X75X5 mm |
| Fuel Tank Capacity | 100 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 7.50 X 16 -16 PR |
| Suspension | Semi elliptic |
| Steering | Power steering |
| Battery | 12V, 130Ah |
| Alternator | 2 x 110A |
| DEF Tank Capacity | 19 litres |
