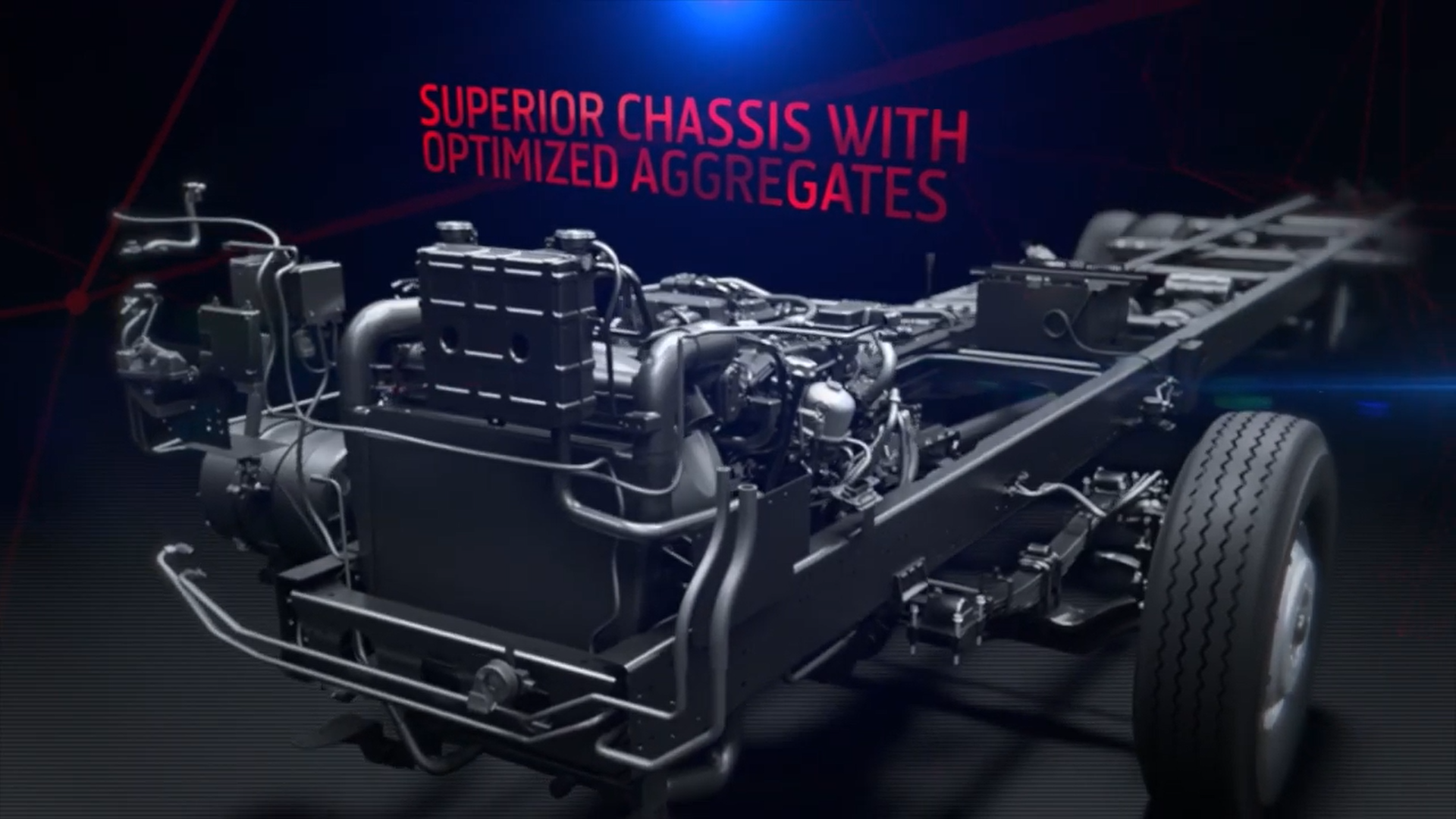

Know your Eicher BSVI Vehicle – Eicher Bus Chassis Range

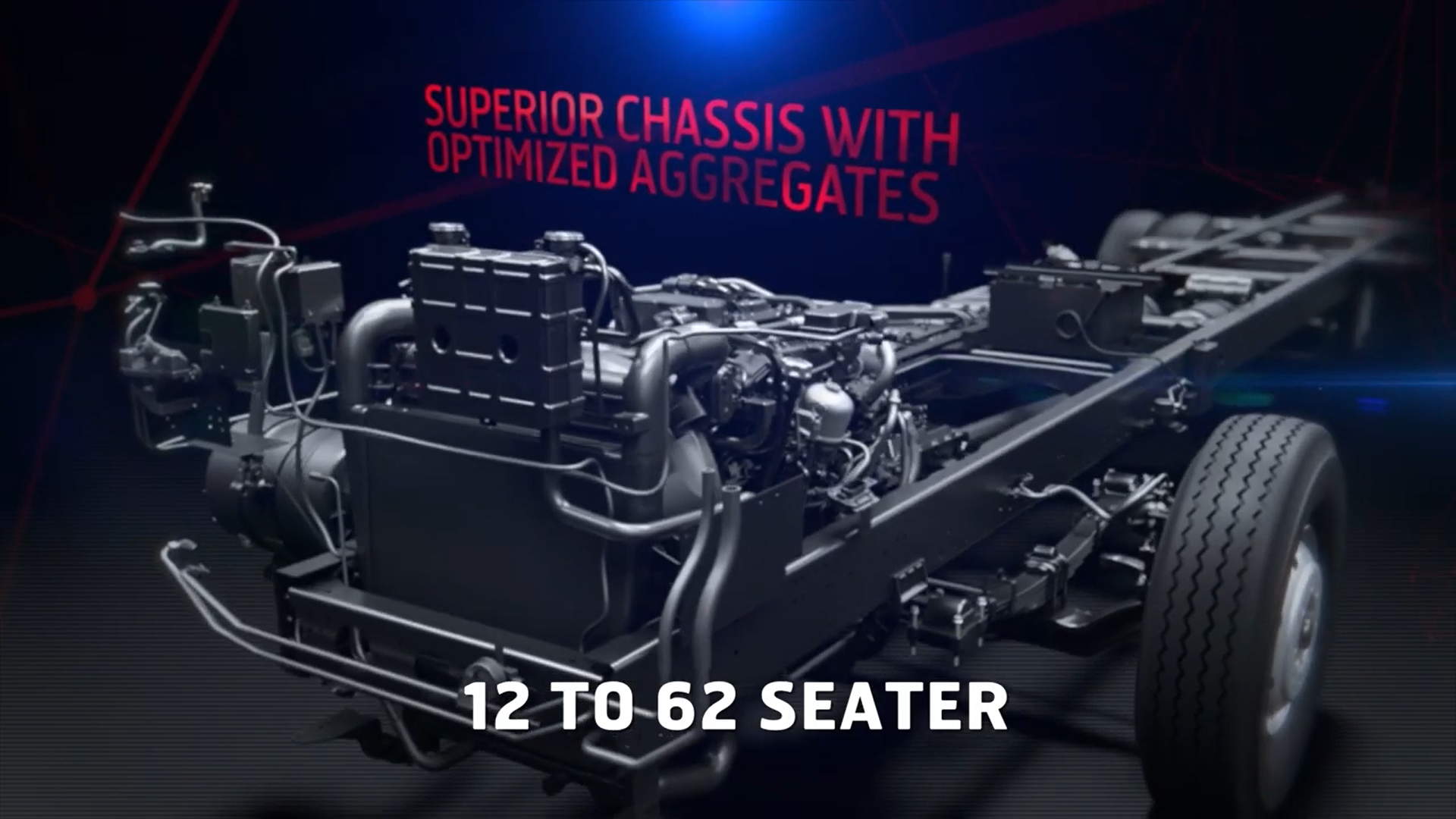

Know your Eicher BSVI Vehicle – Eicher Bus Chassis Range (hindi)
Know your Eicher BSVI Vehicle – Eicher Bus Chassis Range
Know your Eicher BSVI Vehicle – Eicher Bus Chassis Range (hindi)

Eicher 2090 L AC Chassis

The all-new 2000 series chassis is designed to deliver best in class operating economics and superior on road performance, coupled with a lower maintenance costs leading to high profitability for its owners. Powered by advanced new E474 engine, Eicher chassis is smartly designed to deliver powerful performance without compromising on fuel efficiency.

Download BrochureGet PriceFind Dealer
  • GVW
    GVW9.8 t
  • Engine
    EngineE474
  • Power
    Power 105 kW
  • Torque
    Torque400 Nm
  • Fuel Type
    Fuel TypeDiesel

SPECIFICATIONS 2075 L
Wheelbase 5240 mm
Overall Length 9284 mm
Overall Width 1990 mm
Overall Height 2511 mm
Ground Clearance 187 mm
Front Overhang 1024 mm
Rear Overhang 3020 mm
Turning Circle Diameter 19.4 m
Engine Make  E474
Displacement (cc) 2960
Power  105 kW @ 3200 Rpm
Torque  400Nm @ 1200-2500 Rpm
Clutch 310 mm
Transmission Make ET35S6 ,ET35S5
Transmission Type  Synchromesh (6SPeed+1Rev) ,Synchromesh (5SPeed+1Rev)
GVW 9.8 t
Chassis Type  Domex 650
Chassis dimension  200X75X5 mm
Fuel Tank Capacity 160 litres
Brakes  Dual Circuit 'S' Cam Full Air brakes
Tyres 8.25x16 - 16 PR
Suspension Semi elliptic
Steering  Power steering
Battery  12V, 130Ah
Alternator  2 x 110A
DEF Tank Capacity19 litres

Dynamic Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

MBooster+

MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

IDIS 2.0

Intelligent Driver Information System 2.0 keeps the driver informed of all the key parameters through an easy to read display and tell-tales.

BSVI E 474 Engine

The new E 474 BSVI engine delivers higher power and torque while remaining true to the promise of best in class fuel efficiency.
