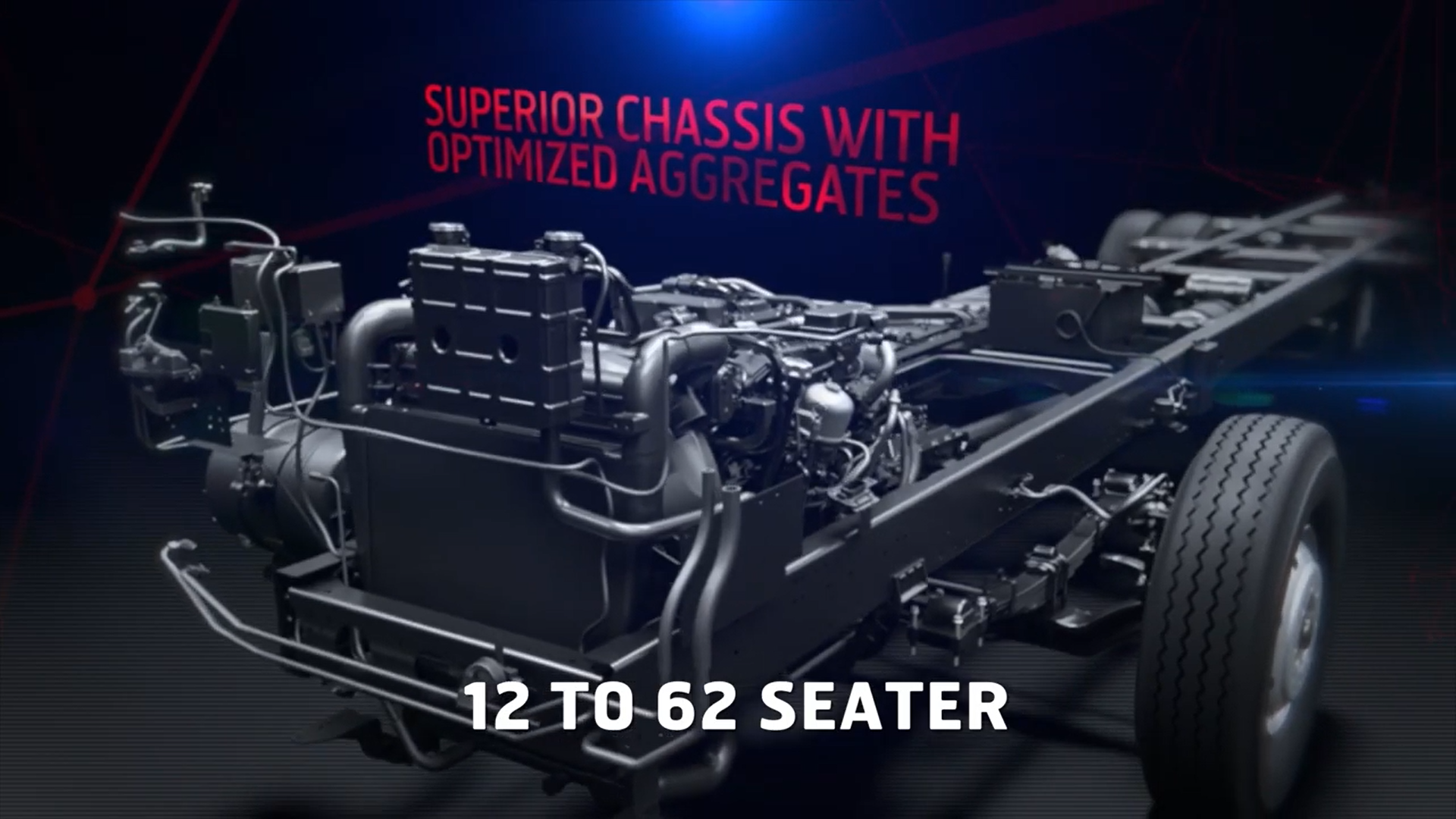

Know your Eicher BSVI Vehicle – Eicher Bus Chassis Range (hindi)
Know your Eicher BSVI Vehicle – Eicher Bus Chassis Range
Know your Eicher BSVI Vehicle – Eicher Bus Chassis Range (hindi)

Eicher 2112 M AC Chassis

The all-new 2112 M AC chassis is built strong with domex® material, silent and low maintenance suspension, radial tyres and many other advance features making it an ideal options for any application. BSVI chassis is driven by state-of-the-art E494 engine which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability for its stakeholders.

Download BrochureGet PriceFind Dealer
  • GVW
    GVW13.1 t
  • Engine
    EngineE494
  • Power
    Power 120 kW
  • Torque
    Torque500 Nm
  • Fuel Type
    Fuel TypeDiesel

SPECIFICATIONS 2112 M AC
Wheelbase 5330 mm
Overall Length 9856 mm
Overall Width 2413 mm
Overall Height 2785 mm
Ground Clearance 232 mm
Front Overhang (mm) 1370
Rear Overhang 3156 mm
Turning Circle Diameter 19.4 m
Engine Make  E494
Displacement (cc) 3770
Power  120 kW @ 2600 Rpm
Torque  500 Nm @ 1200-1800 Rpm
Clutch 330 mm
Transmission Make ET40S6
Transmission Type  Synchromesh (6SPeed+1Rev)
GVW 13.1 t
Chassis Type  Domex 650
Chassis dimension  210 X 76 X 6 mm
Fuel Tank Capacity 190 litres
Brakes  Dual Circuit 'S' Cam Full Air brakes
Tyres 9R20-16PR
Suspension Wevellar Suspension
Steering  Power steering
Battery  2X12V 130AH
Alternator  2 x 120A
DEF Tank Capacity 27 litres

Dynamic Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

MBooster+

 MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

 Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

IDIS 2.0

Intelligent Driver Information System 2.0 keeps the driver informed of all the key parameters through an easy to read display and tell-tales.

BSVI E 494 Engine

The upgraded EUTECH6 E494 Engine comes with higher power of 160 hp and uncompromised fuel efficiency that is expected for the engine.
