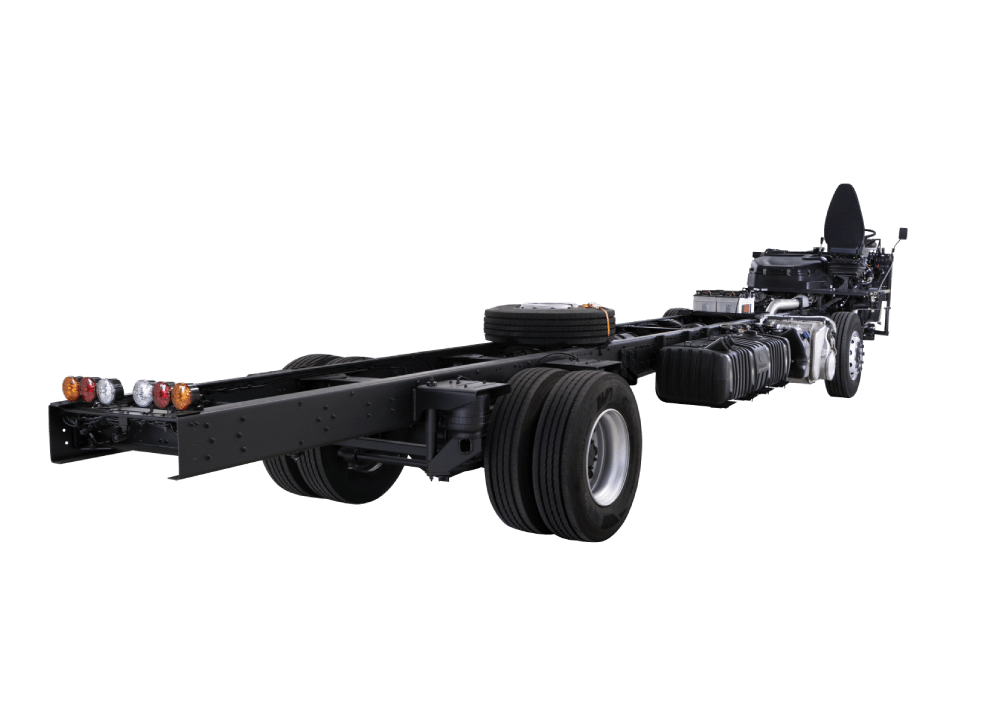

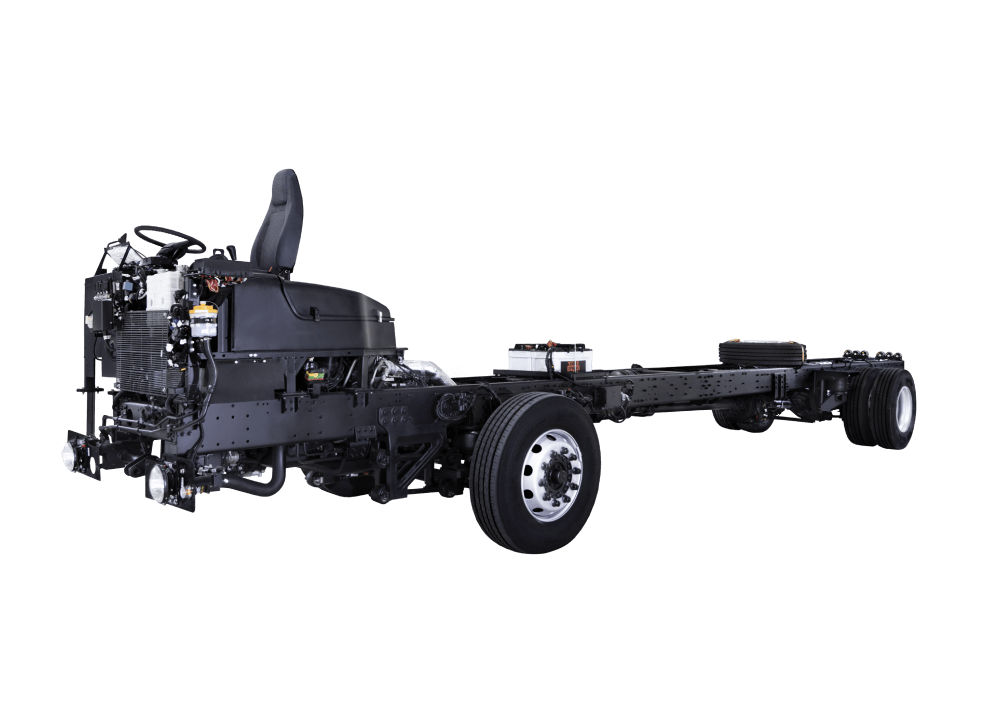

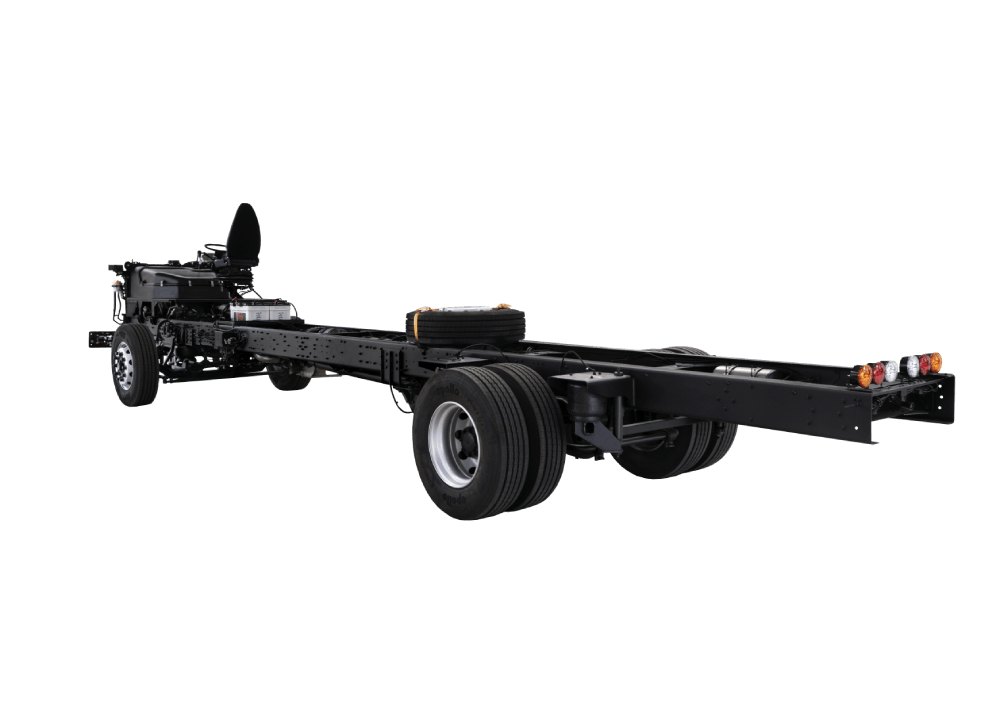

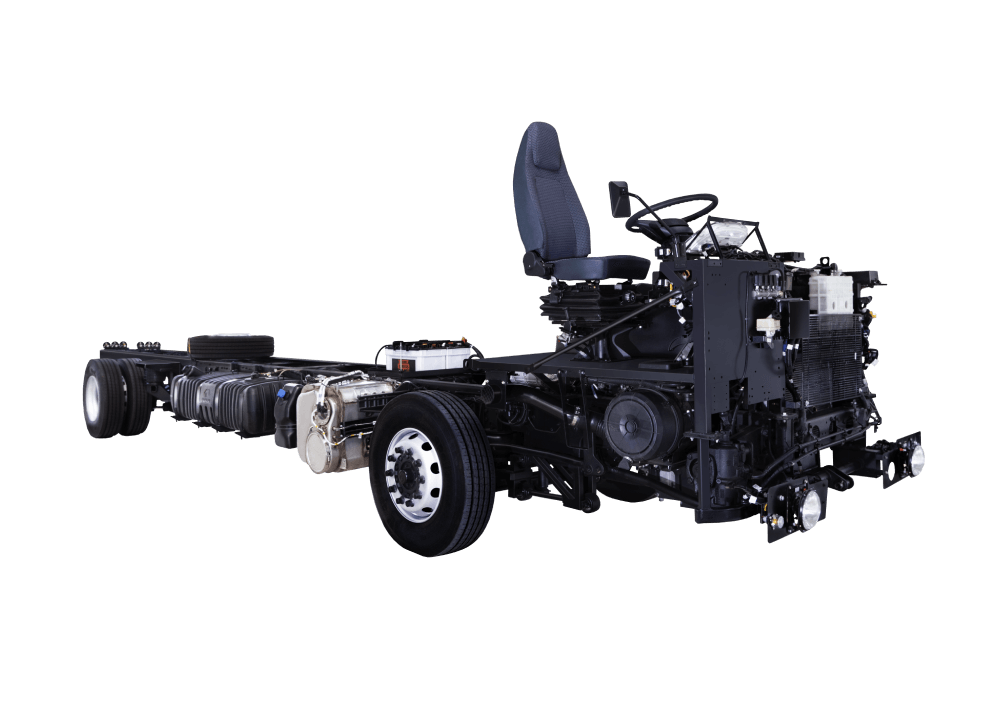

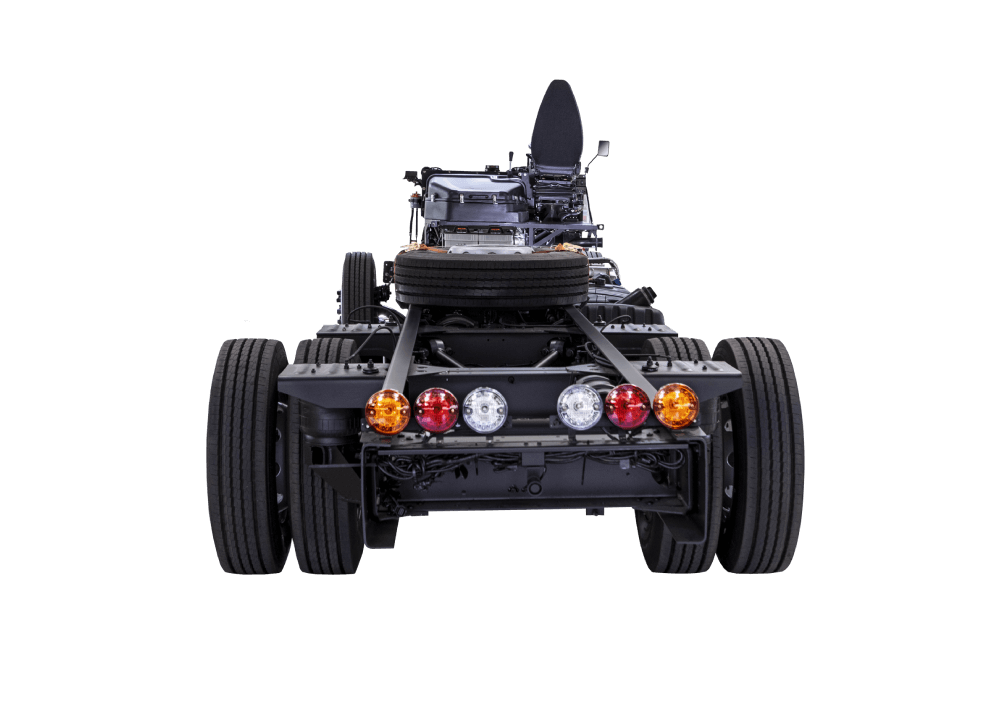

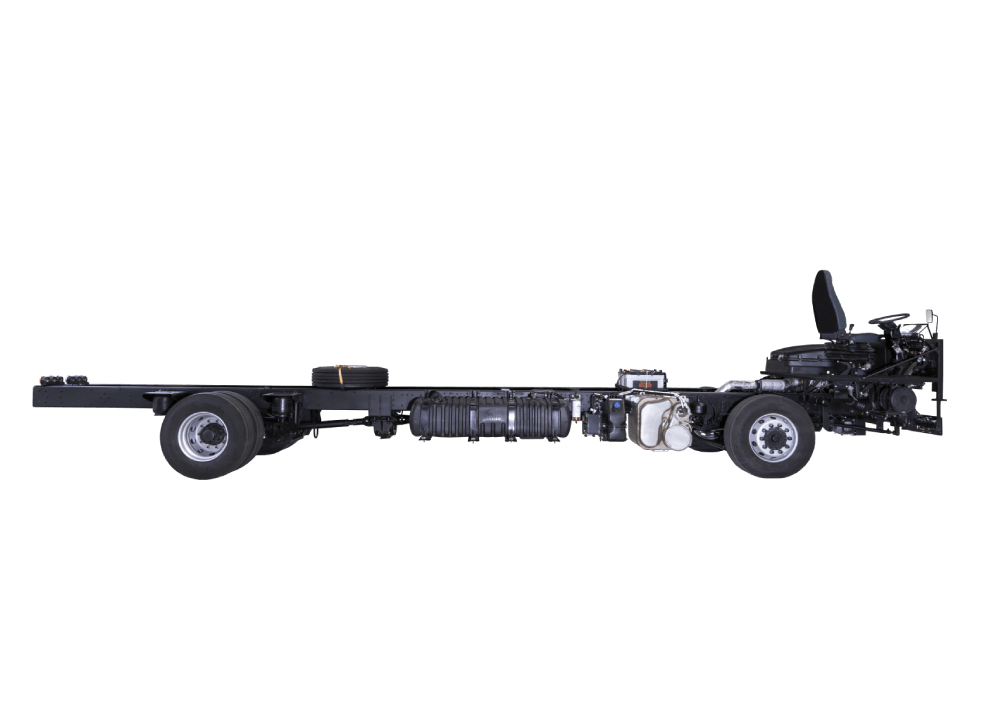

- Exterior
Eicher Pro 6019

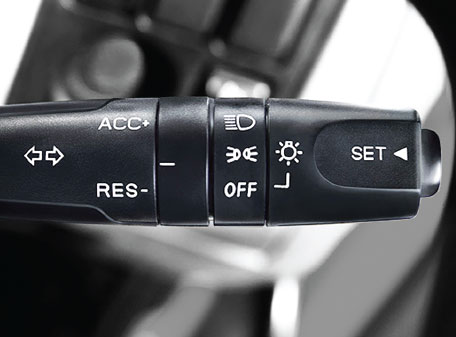

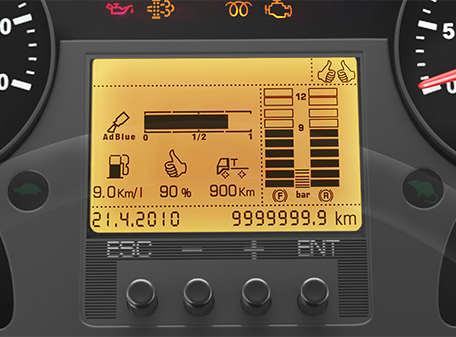

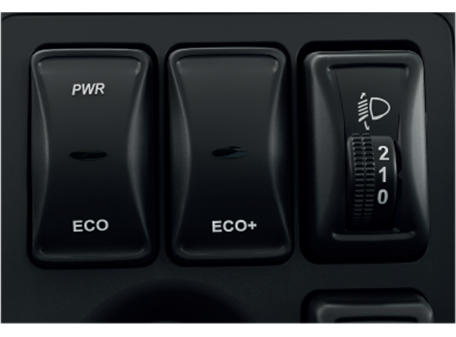

Eicher 6019, is the hallmark of Performance, Reliability and Fuel Efficiency. The new 6000 range is equipped with VEDX5 engine and world class Engine Management System (EMS) based on Volvo group’s global platform, high pressure Denso FIE system and reinforced Domex® chassis to make it the most reliable product in its class. Features like cruise control, Fuel Coaching, Mbooster+ and intelligent Engine Protection System (EPS) make the Eicher 6019 a preferred choice for intercity, Route Permit and staff applications.
GVW19.5 t

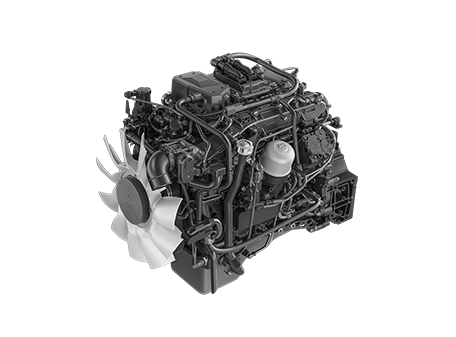

EngineVEDX5
Power 176 kW
Torque900 Nm
Fuel TypeDiesel
- Specification
- Technology
| Features | 6019 S LPO | 6019 R LPO |
|---|---|---|
| Wheelbase | 6900 mm | 6200 mm |
| Overall length | 11745 mm | 10629 mm |
| Overall width | 2540 mm | 2540 mm |
| Overall height | 2783 mm | 2783 mm |
| Ground clearance | 227 mm | 227 mm |
| Front overhang | 2255 mm | 2255 mm |
| Rear overhang | 2590 mm | 2174 mm |
| Turning circle diameter | 22.2 m | 23.7 m |
| Engine make | VEDX5 | VEDX5 |
| Power | 176 kW @ 2200 RPM | 176 kW @ 2200 RPM |
| Torque | 900 Nm @ 1200-1600 RPM | 900 Nm @ 1200-1600 RPM |
| Clutch diameter | 395 mm | 395 mm |
| Transmission make | ET90S6 | ET90S6 |
| Transmission type | Synchromesh 6-speed + 1 Rev | Synchromesh 6-speed + 1 Rev |
| GVW | 19.5 (Tonne) | 18.5 (Tonne) |
| Chassis type | Domex® 650 | Domex® 650 |
| Chassis dimension | 285x76x6 mm | 285x76x6 mm |
| Fuel tank capacity | 425 litre | 425 litre |
| Brakes | Front - Disc / Drum brakes Rear - Drum brakes |
Front - Disc brakes Rear - Drum brakes |
| Tyres | 295/80R22.5 | 295/80R22.5 |
| Suspension | Front - Weveller/ Air Rear- Air |
Front & Rear - Air with ARB |
| Steering | Power Steering | Power Steering |
| Battery | 2 x 24V-180Ah | 2 x 24V-180Ah |
| Alternator | 2 x 150 A (with engine mounted AC compressor) 2 x 90 A (Others) |
2 x 150 A (with engine mounted AC compressor) 2 x 90 A (Others) |
| DEF tank capacity | 33 litre | 33 litre |
