Eicher Pro 3009 H AC Chassis

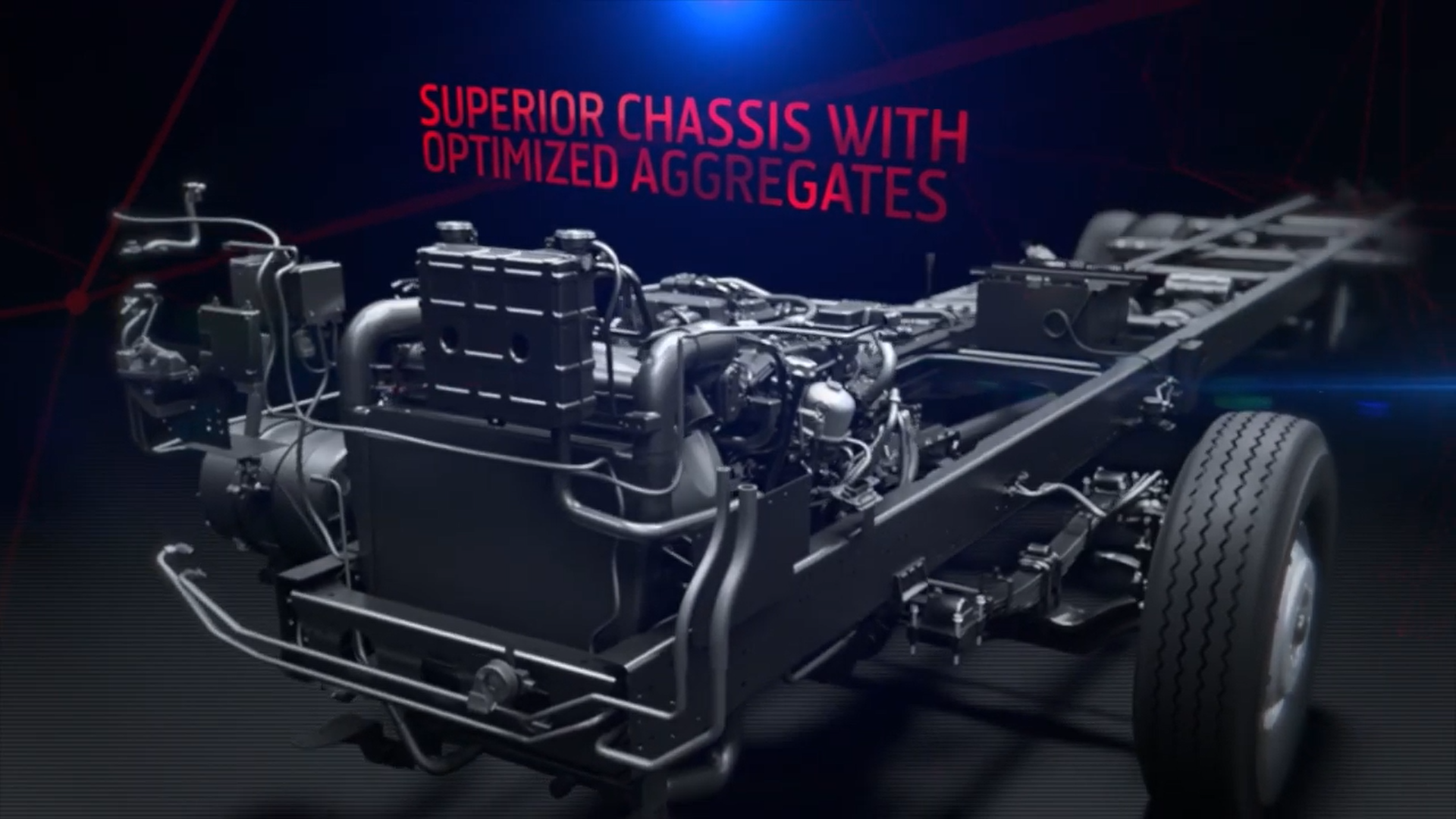

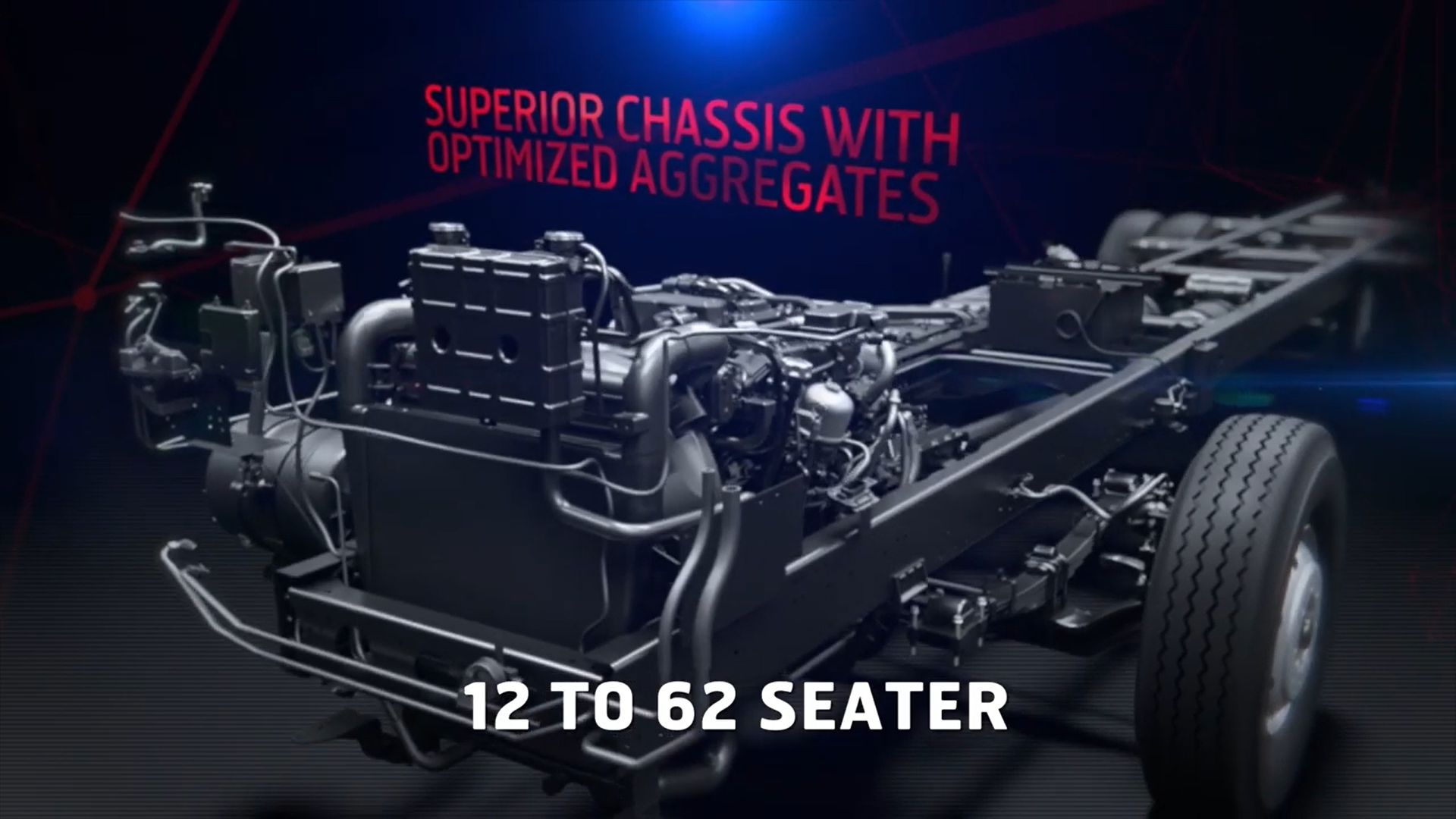

The all-new Eicher Pro 3009 H AC chassis is built strong with domex® material, silent and low maintenance parabolic suspension with Anti roll bar, radial tyres and many other advance features making it an ideal options for any application. BSVI chassis is driven by state-of-the-art E494 engine which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability for its stakeholders.
GVW9.8 t
EngineE494
Power 120 kW
Torque500 Nm
Fuel TypeDiesel
- Specification
- Technology
| SPECIFICATIONS | Pro 3009 H AC |
|---|---|
| Wheelbase | 4320 mm |
| Overall Length | 8693 mm |
| Overall Width | 2226 mm |
| Overall Height | 2470 mm |
| Ground Clearance | 185 mm |
| Front Overhang | 1918 mm |
| Rear Overhang | 2455 mm |
| Turning Circle Diameter | 15.2 m |
| Engine Make | E494 |
| Displacement (cc) | 3770 |
| Power | 120 kW @ 2600 Rpm |
| Torque | 500 Nm @ 1200-1800 Rpm |
| Clutch | 330 mm |
| Transmission Make | ET40S6 |
| Transmission Type | Synchromesh 6SPeed+1Rev |
| GVW | 9.8 t |
| Chassis Type | Ladder - Joggle trype |
| Chassis dimension | 210 X 76 X 6 mm |
| Fuel Tank Capacity | 100 litres |
| Brakes | dual circuit 'S' cam full air brakes |
| Tyres | 235/75 R17.5 - 14PR |
| Suspension Front | Parabolic With ARB |
| Suspension Rear | Parabolic |
| Steering | Power steering |
| Battery | 24V(2x12V) 130Ah |
| Alternator | 2x 120A |
| DEF Tank Capacity | 27 litres |
