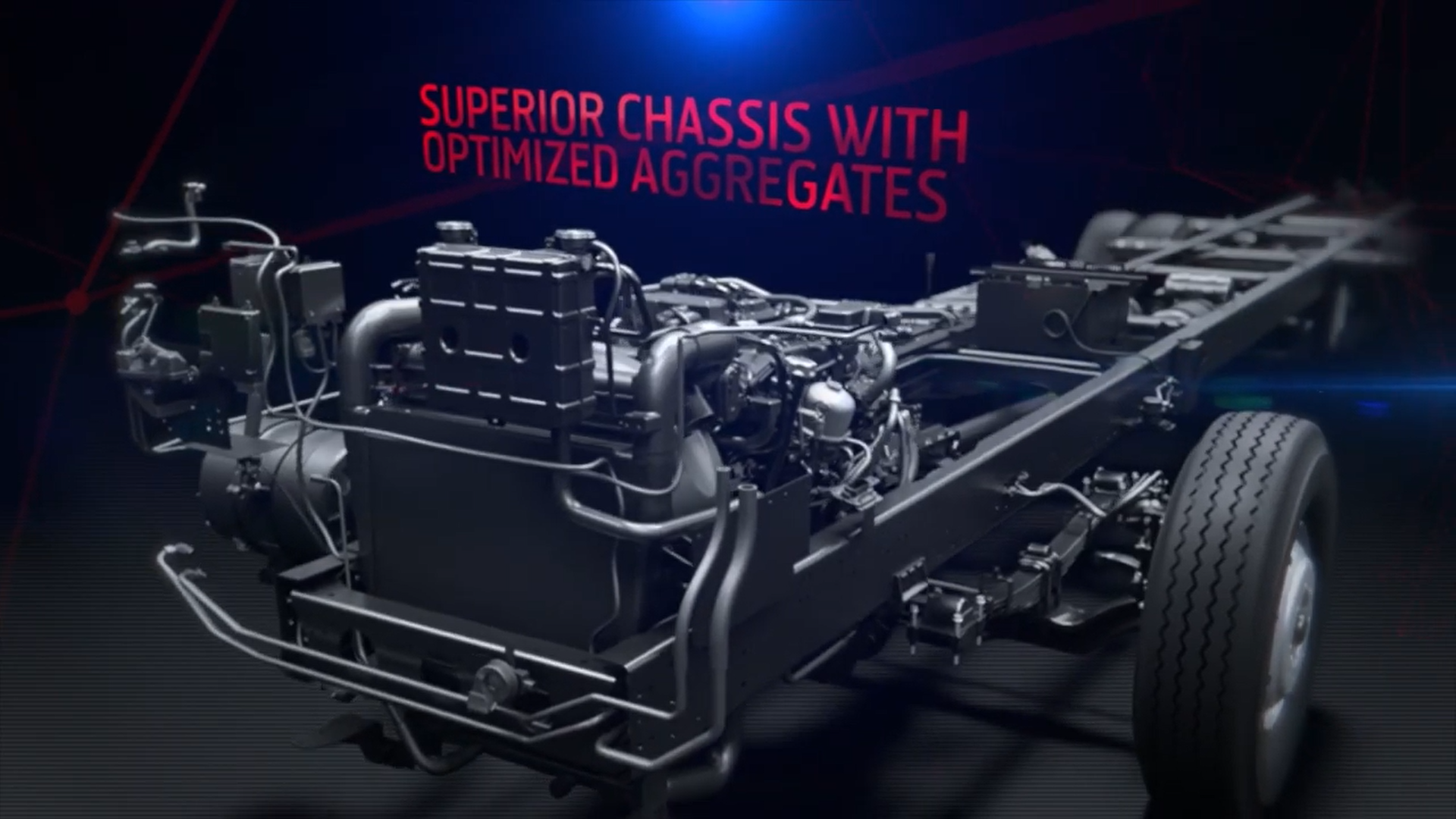

Eicher Pro 3010 L Chassis

The all-new Eicher Pro 3010 L chassis is built strong with domex® material, silent and low maintenance parabolic suspension with Anti roll bar, radial tyres and many other advance features making it an ideal options for any application. BSVI chassis is driven by state-of-the-art E494 engine and ET40S6 transmission which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability for its stakeholders.

GVW10.7 t
EngineE494
Power 120 kW
Torque500 Nm
Fuel TypeDiesel

Specification
Technology

SPECIFICATIONS	Chassis 3010
Wheelbase	5260 mm
Overall Length	10159 mm
Overall Width	2226 mm
Overall Height	2470 mm
Ground Clearance	185 mm
Front Overhang	1918 mm
Rear Overhang	2981 mm
Turning Circle Diameter	18.5 m
Engine Make	E494
Displacement (cc)	3770
Power	120 kW @ 2600 Rpm
Torque	500 Nm @ 1200-1800 Rpm
Clutch	330 mm
Transmission Make	ET40S6
Transmission Type	Synchromesh 6SPeed+1Rev
GVW	10.7 t
Chassis Type	Ladder - Joggle trype
Chassis dimension	210 X 76 X 6 mm
Fuel Tank Capacity	160 litres
Brakes	dual circuit 'S' cam full air brakes
Tyres	235/75 R17.5 - 14PR
Suspension Front	Parabolic With ARB
Suspension Rear	Parabolic
Steering	Power steering
Battery	12V 130Ah
Alternator	110A
DEF Tank Capacity	27 litres

Dynamic Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

MBooster+

MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

IDIS 2.0

Intelligent Driver Information System 2.0 keeps the driver informed of all the key parameters through an easy to read display and tell-tales.

BSVI E 494 Engine

The upgraded EUTECH6 E494 Engine comes with higher power of 160 hp and uncompromised fuel efficiency that is expected for the engine.
