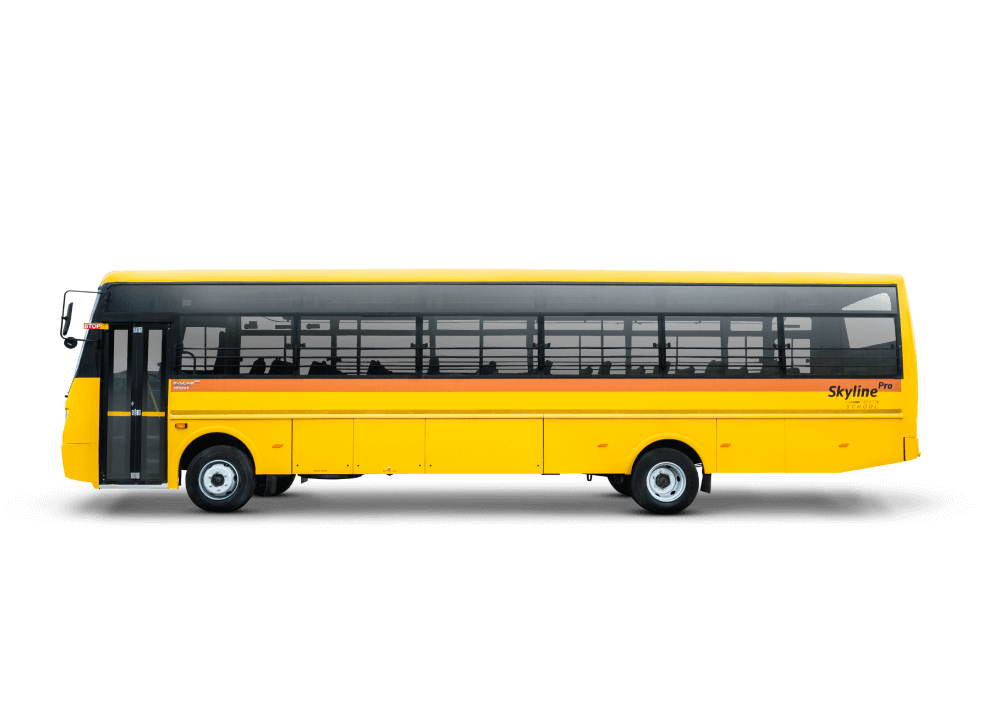

Eicher Skyline Pro 3011 L School

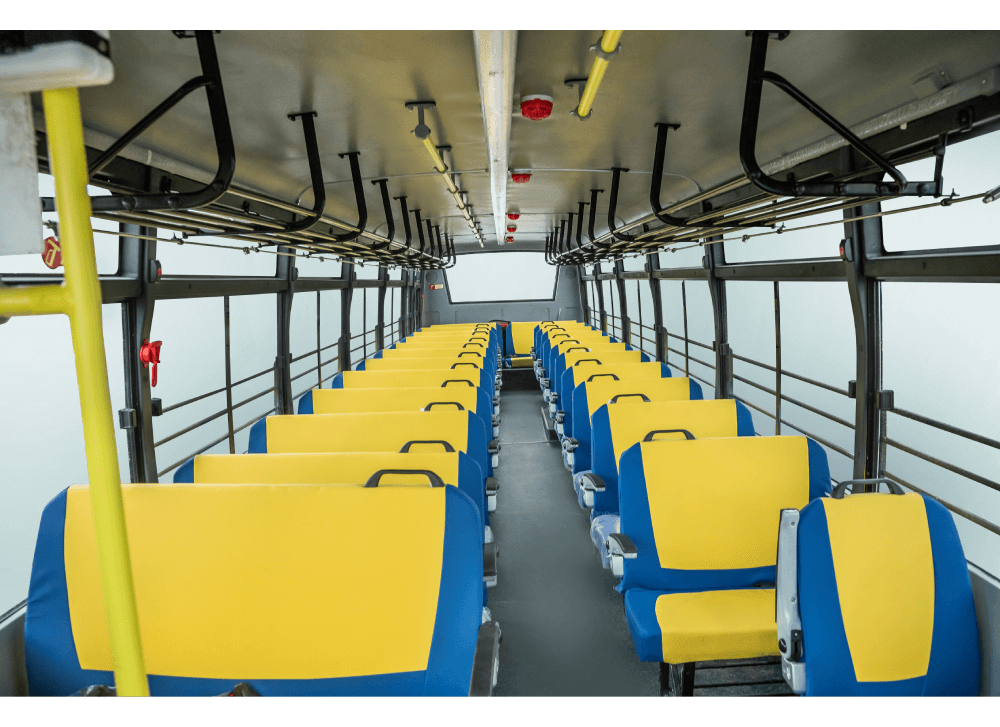

The new Skyline Pro School 3011 L is designed to provide class leading performance with better comfort and dynamic seating options. The premium 3011 School bus is built on the reliable 3000 series platform. It offers a wider bus body that improves interior ambient space, wide gangway and comfortable seats that give a definite edge and new level of comfort to our wider Skyline Pro.
Seating Capacity72+D
EngineE474
Power 105 kW
Torque400 Nm
Fuel TypeDiesel
| SPECIFICATIONS | Skyline Pro 3011 L School |
|---|---|
| Seating Capacity High headrest seats (HHR) | 72+D (3X3) |
| Wheelbase (mm) | 5260 |
| Overall Length (mm) | 10439 |
| Overall Width (mm) | 2590 |
| Overall Height (mm) | 2956 |
| Ground Clearance (mm) | 185 |
| Front Overhang (mm) | 2045 |
| Rear Overhang (mm) | 3134 |
| Turning Circle Diameter (m) | 18.5 |
| Engine Make | E474 |
| Displacement (cc) | 2960 |
| Power | 140 hp (105 kW) @ 3200 Rpm |
| Torque | 400 Nm @ 1200 - 2500 Rpm |
| Clutch (mm) | 310 |
| Transmission Make | ET40S5 |
| Transmission Type | Synchromesh 5Speed + 1Rev |
| GVW (Tonnes) | 11.8 |
| Chassis Type | Domex® 650 |
| Chassis dimension (mm) | 210 X 76 X 6 |
| Fuel tank Capacity (L) | 160 |
| Brakes | Air Brakes - Drum with APDA |
| Tyres | 235/75 R17.5 - 14PR (Tubeless) |
| Suspension Front | Parabolic With Anti-roll bar(ARB) |
| Suspension Rear | Parabolic |
| Steering | Power steering | Tilt & Telescopic |
| Battery | 12V 130 Ah |
| Alternator | 110 A |
| Flooring | Silicon embeded Vinyl |
| Ad Blue Tank Capacity (l) | 19 |
Dynamic Fuel Coaching
Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy
MBooster+
MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency
Improved Engine Power
The modernized Eicher E474 engine offers unmatched power of 105kW. With dual benefits of high power and enhanced fuel efficiency, this next-gen engine is well suited for any application
Eicher Live
Eicher Live, an innovative and intelligent Telematics-based system, facilitates in keeping track of fuel consumption, maintenance needs and movement of buses
IDIS
Intelligent Driver Information System keeps you aware of all the runtime information of the bus
