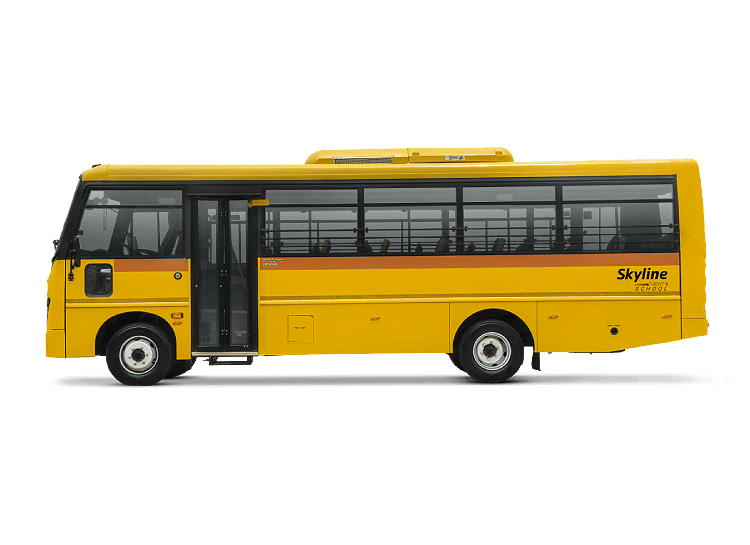

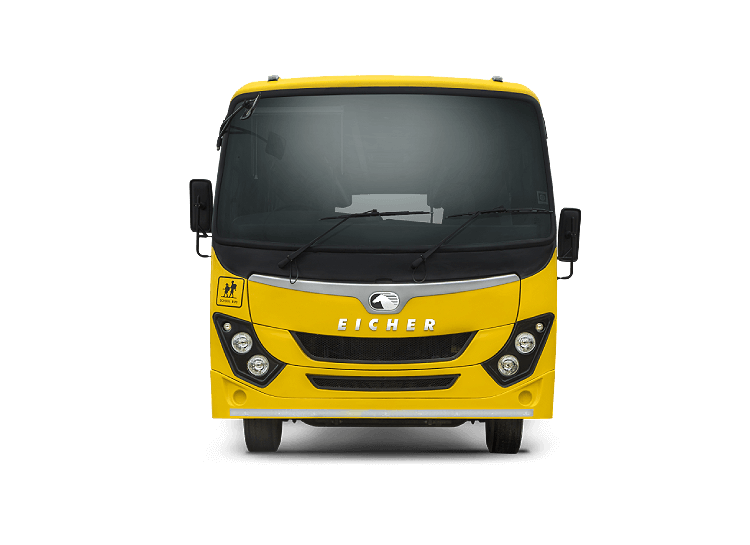

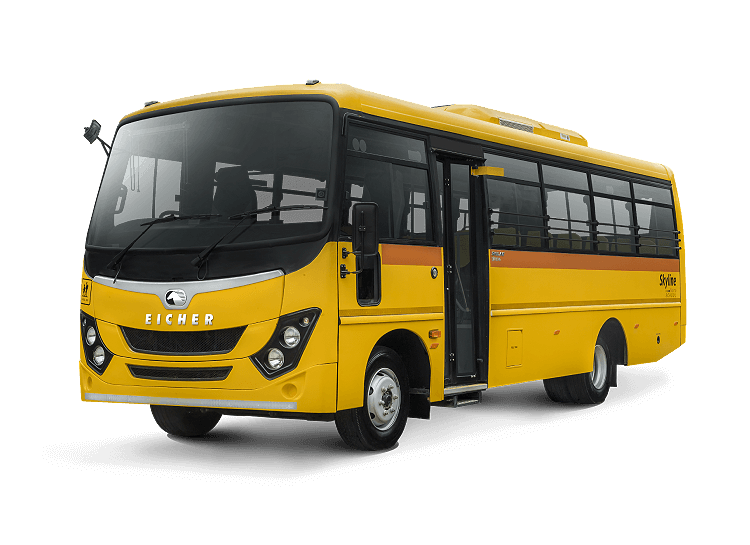

Eicher Skyline 2075 H

Distinctively premium and supremely safe, the Eicher Skyline 2075 H school bus has a 2350 mm wide bus body, silent and grease free parabolic suspension and radial tubeless tyres. This bus helps deliver safety and comfort for a joyful journey to students. It is driven by the power-packed E474 engine for the performance you desire. With its superior fuel efficiency and lower maintenance cost, it gives your business profitability an edge.

Download BrochureGet PriceFind Dealer
  • Seating Capacity
    Seating Capacity43
  • Engine
    EngineE474
  • Power
    Power 90 kW
  • Torque
    Torque350 Nm
  • Fuel Type
    Fuel TypeDiesel
SPECIFICATIONS 2075 H
Seating Capacity 41+1+D (3X2)
Wheelbase 4320 mm
Overall Length 8112 mm
Overall Width 2350 mm
Overall Height 2765 mm
Min Ground Clearance 187 mm
Front Overhang 1200 mm
Rear Overhang 2592 mm
Turning Circle Diameter 16 m
Engine Make  E474
Displacement (cc) 2960
Power 90kW @ 3200 Rpm
Torque  350Nm @ 1200-2500 Rpm
Clutch 310 mm
Transmission Make ET35S5
Transmission Type  synchromesh (5 Speed,1 Rev)
GVW 8.4 t
Chassis Type  Domex 650
Chassis C frame dimensions  200x65x5 mm
Fuel Tank Capacity 100 litres
Brakes  Dual Circuit 'S' Cam Full Air brakes
Tyres 235/75 R17.5- 14PR  (Radial Tubeless )
Suspension Front Parabolic with Anti-Roll Bar
Suspension Rear Parabolic
Steering  Power Steering
Battery  12V 130Ah
Alternator  110A
Flooring  Vinyl
DEF Tank Capacity 19 litres
Dynamic Fuel Coaching

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

MBooster+

MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

Eicher Live

An innovative and intelligent telematics system, Eicher Live facilitates in keeping a track of fuel consumption, maintenance needs, and monitoring the movement of buses.

IDIS

Intelligent Driver Information System keeps you aware of all the runtime information of the bus

BSVI E474 Engine

This engine offers dual benefits of high power and high fuel efficiency
