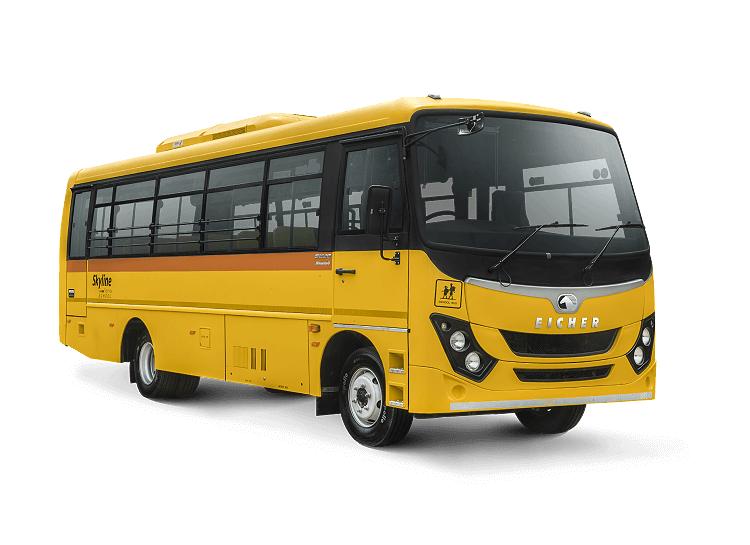

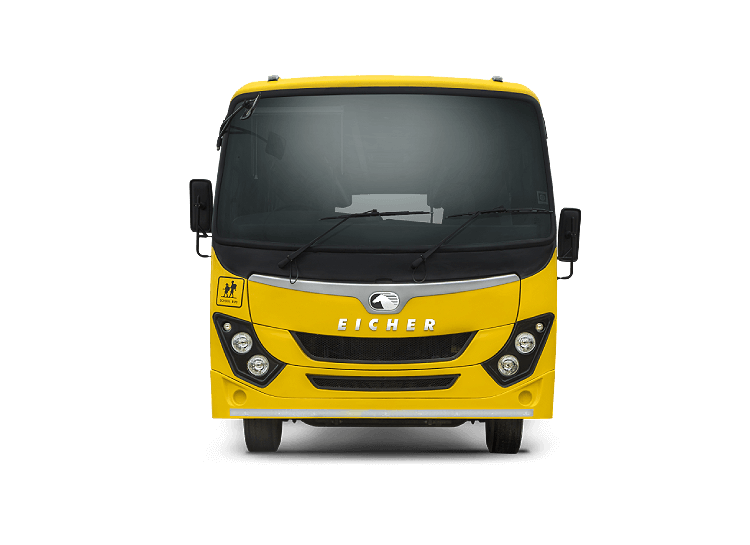

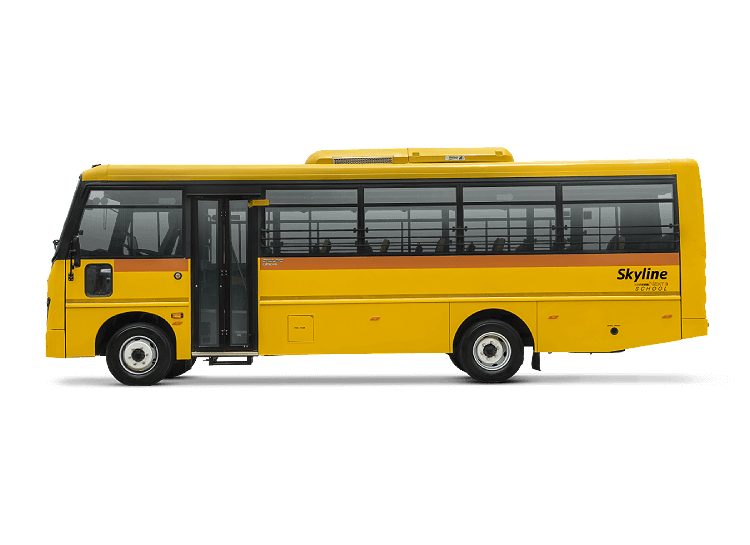

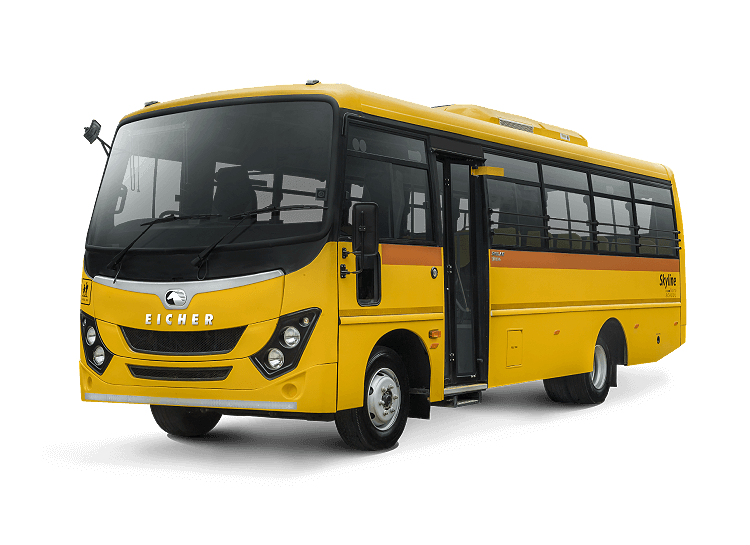

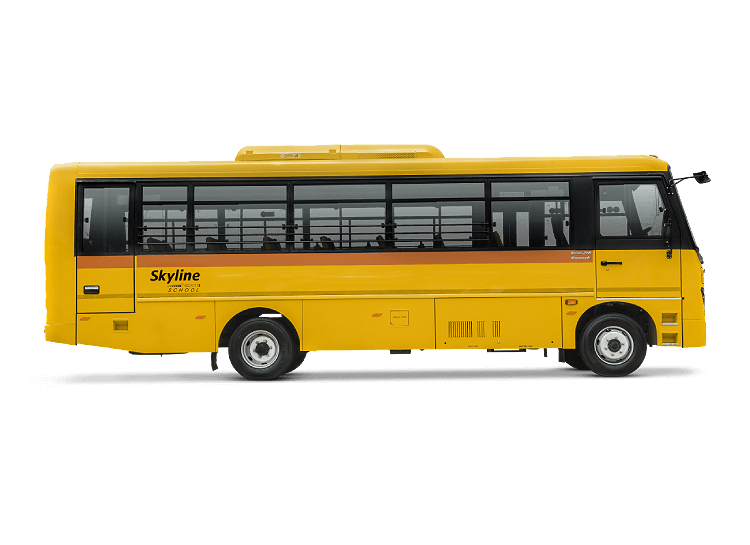

Eicher Skyline 2090 L Exterior
Eicher Skyline 2090 L Exterior
Eicher Skyline 2090 L Exterior
Eicher Skyline 2090 L Exterior
Eicher Skyline 2090 L Exterior
Eicher Skyline 2090 L Exterior
2
3
4
5
6
7
Eicher Skyline 2090 L Interior
Eicher Skyline 2090 L Interior
Eicher Skyline 2090 L Interior
Eicher Skyline 2090 L Interior
Eicher Skyline 2090 L Interior
Eicher Skyline 2090 L Interior
Eicher Skyline 2090 L Interior
1
2
3
4
5
6
7
Know your Eicher BSVI Vehicle – Eicher School Bus Range
Know your Eicher BSVI Vehicle – Eicher School Bus Range (Hindi)
Know your Eicher BSVI Vehicle – Eicher School Bus Range
Know your Eicher BSVI Vehicle – Eicher School Bus Range (Hindi)

Eicher Skyline 2090 L

Provide a pleasant and secure journey with the Eicher Skyline 2090 L school bus. It features a wide 2350 mm bus body, silent and grease free parabolic suspension, and radial tubeless tyres. This premium bus, with a 2350 mm wide bus body, exhibits unmatched performance with its state-of-the-art E474 engine. This BSVI Skyline school bus combines safety, comfort and performance for the success of your business. It enhances your profitability through its superior fuel efficiency and lower maintenance cost.

Download BrochureGet PriceFind Dealer
  • Seating Capacity
    Seating Capacity53,37
  • Engine
    EngineE474
  • Power
    Power 105 kW
  • Torque
    Torque400 Nm
  • Fuel Type
    Fuel TypeDiesel
SPECIFICATIONS 2090 L
Seating Capacity 51+1+D (3X2), 35+1+D(AC) PB 2X2
Wheelbase 5240 mm
Overall Length 9584 SKYLINE 2090 L
Overall Width 2350 mm
Overall Height 2860 mm
Min Ground Clearance 187 mm
Front Overhang 1200 mm
Rear Overhang 3144 mm
Turning Circle Diameter 19.4 m
Engine Make  E474
Displacement (cc) 2960
Power 105kW @ 3200 Rpm
Torque  400Nm @ 1200- 2500 Rpm
Clutch 310 mm
Transmission Make ET35S6
Transmission Type  synchromesh (6 Speed,1 Rev)
GVW 9.9 t
Chassis Type  Domex 650
Chassis C frame dimensions  200x65x5 mm
Fuel Tank Capacity 160 litres
Brakes  Dual Circuit 'S' Cam Full Air brakes
Tyres 235/75 R17.5- 14PR  (Radial Tubeless )
Suspension Front Parabolic with Anti-Roll Bar
Suspension Rear Parabolic
Steering  Power Steering
Battery  12V 130Ah
Alternator  110A
Flooring  Vinyl
DEF Tank Capacity 19 litres
MBooster+

MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency

Cruise Control

Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy

Eicher Live

An innovative and intelligent telematics system, Eicher Live facilitates in keeping a track of fuel consumption, maintenance needs, and monitoring the movement of buses.

IDIS

Intelligent Driver Information System keeps you aware of all the runtime information of the bus

BSVI E474 Engine

This engine offers dual benefits of high power and high fuel efficiency
