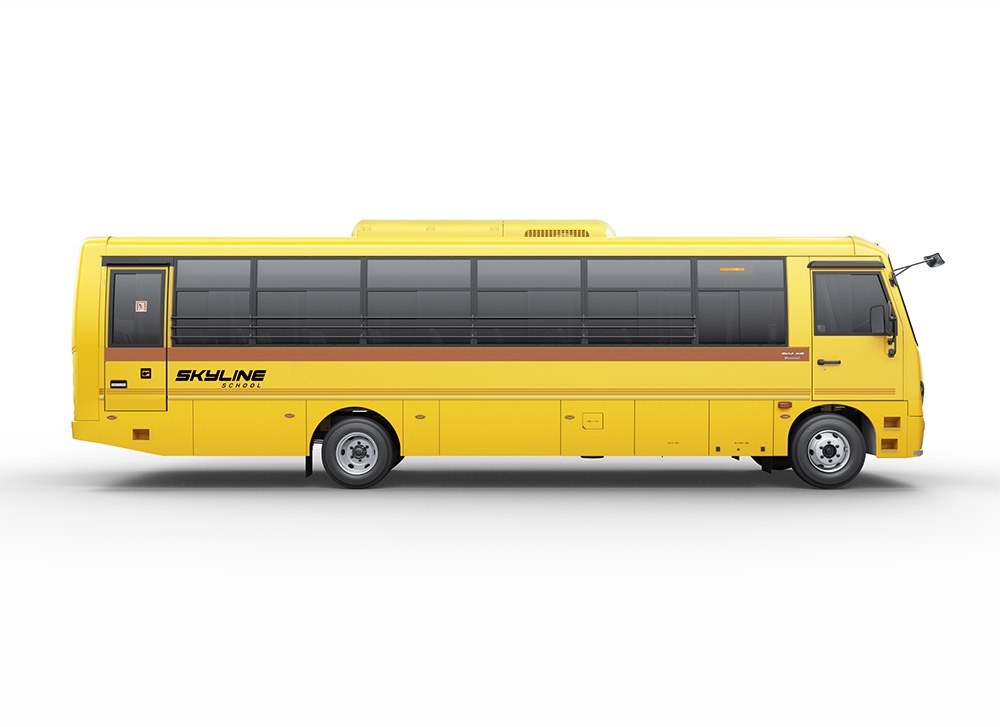

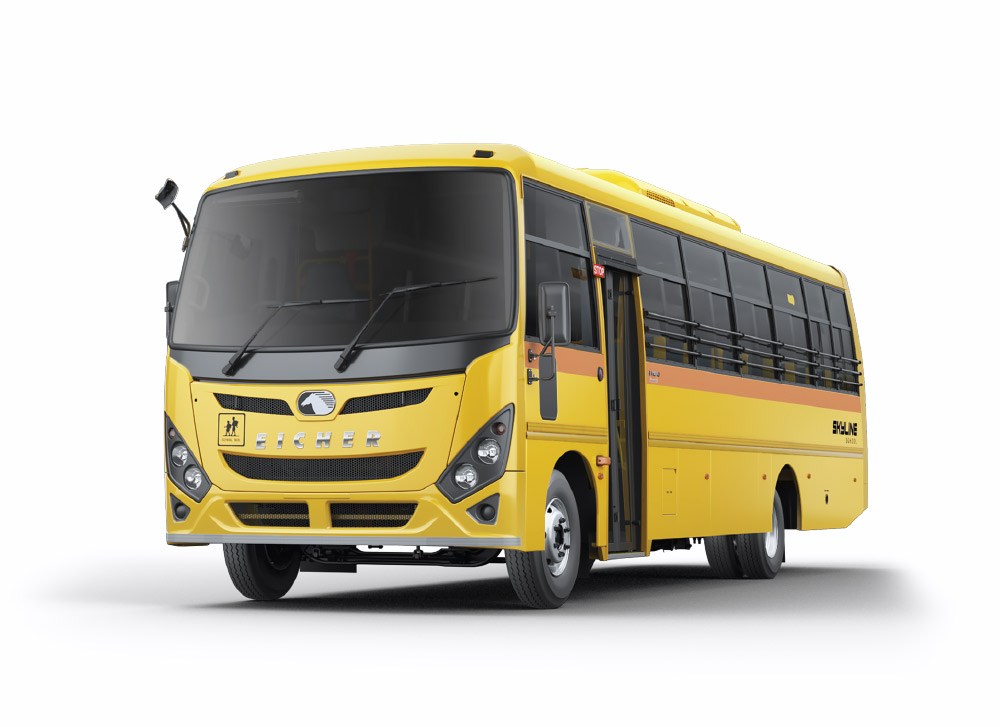

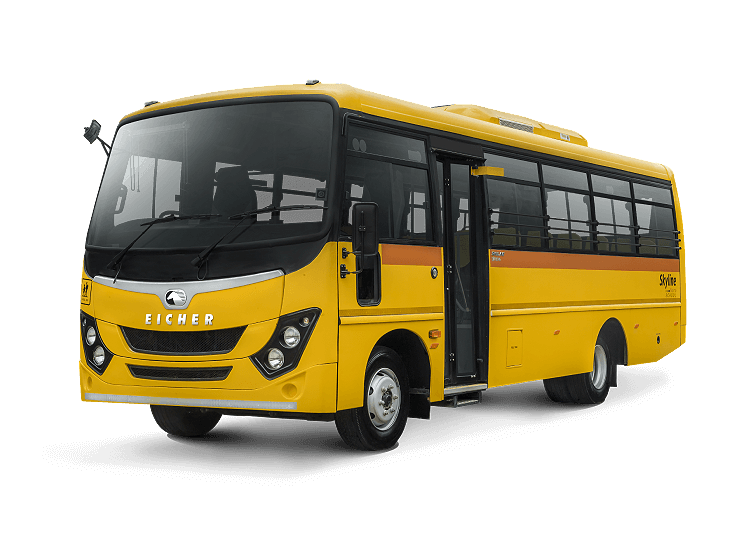

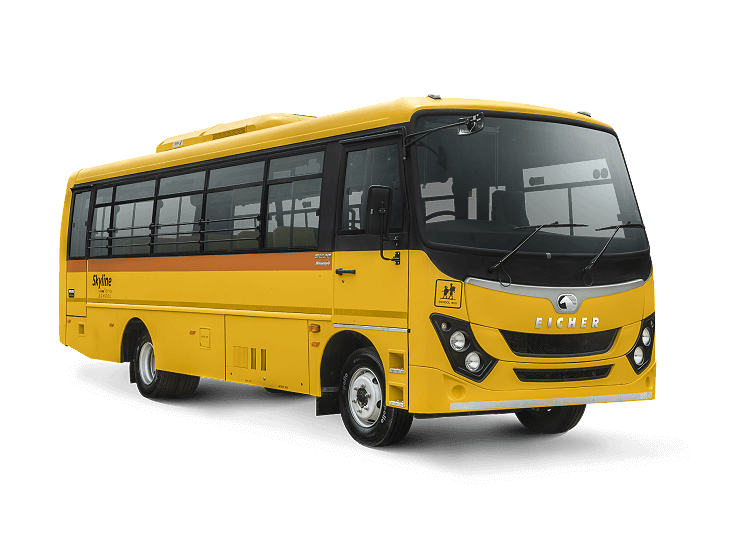

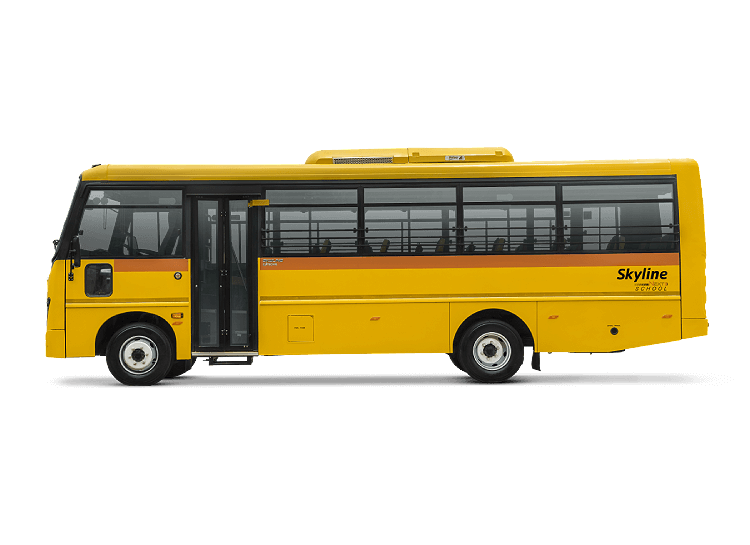

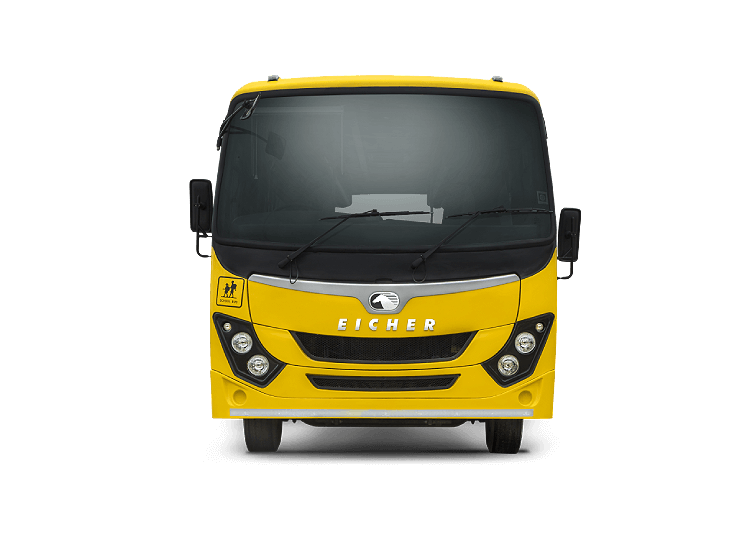

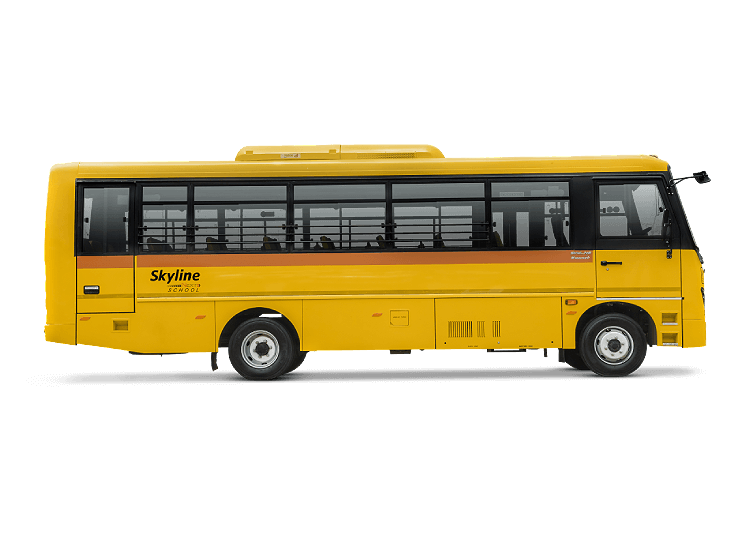

Eicher Skyline 2090 L AC
The Eicher Skyline 2090 L AC school bus epitomises safety, comfort, and performance within its spacious 2350 mm wide bus body. Loaded with advanced safety features such as silent and grease-free parabolic suspension, and radial tubeless tires, it ensures maximum safety and security. Powered by the cutting-edge BSVI E474 engine, this bus guarantees robust performance. Its excellent fuel efficiency and minimal maintenance costs significantly enhance your profitability.
Seating Capacity53,37
EngineE474
Power 105 kW
Torque400 Nm
Fuel TypeDiesel
- Specification
- Technology
| SPECIFICATIONS | 2090 L AC |
|---|---|

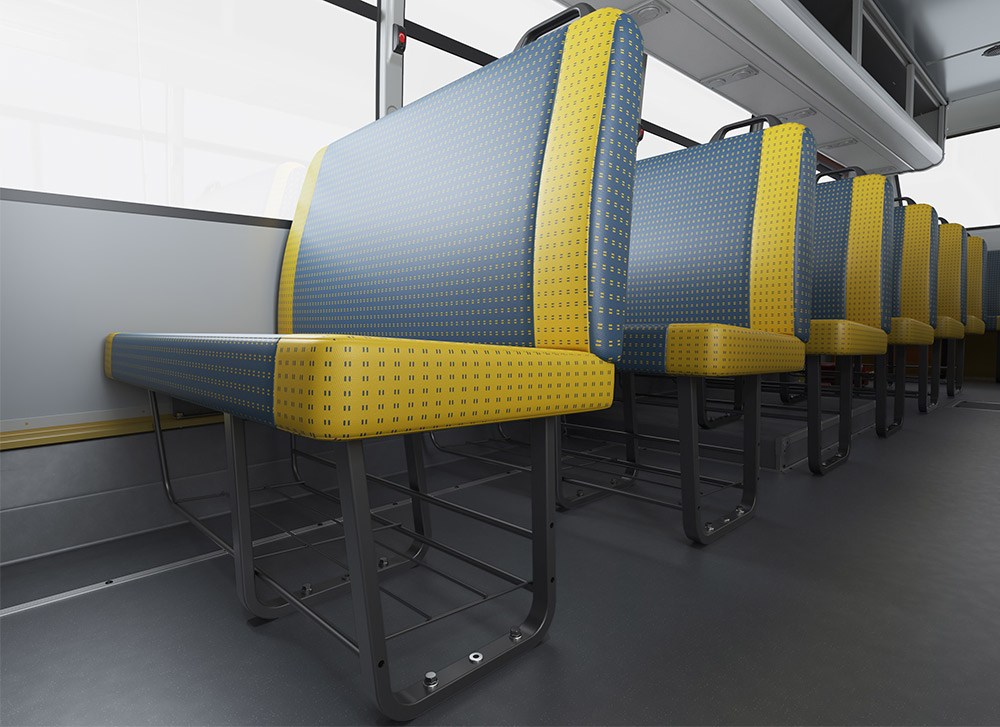

| Seating Capacity | 51+1+D (3X2), 35+1+D(AC) PB 2X2 |
| Wheelbase | 5240 mm |
| Overall Length | 9584 mm |
| Overall Width | 2350 mm |
| Overall Height | 3070 mm |
| Min Ground Clearance | 187 mm |
| Front Overhang | 1200 |
| Rear Overhang | 3144 mm |
| Turning Circle Diameter | 19.4 m |

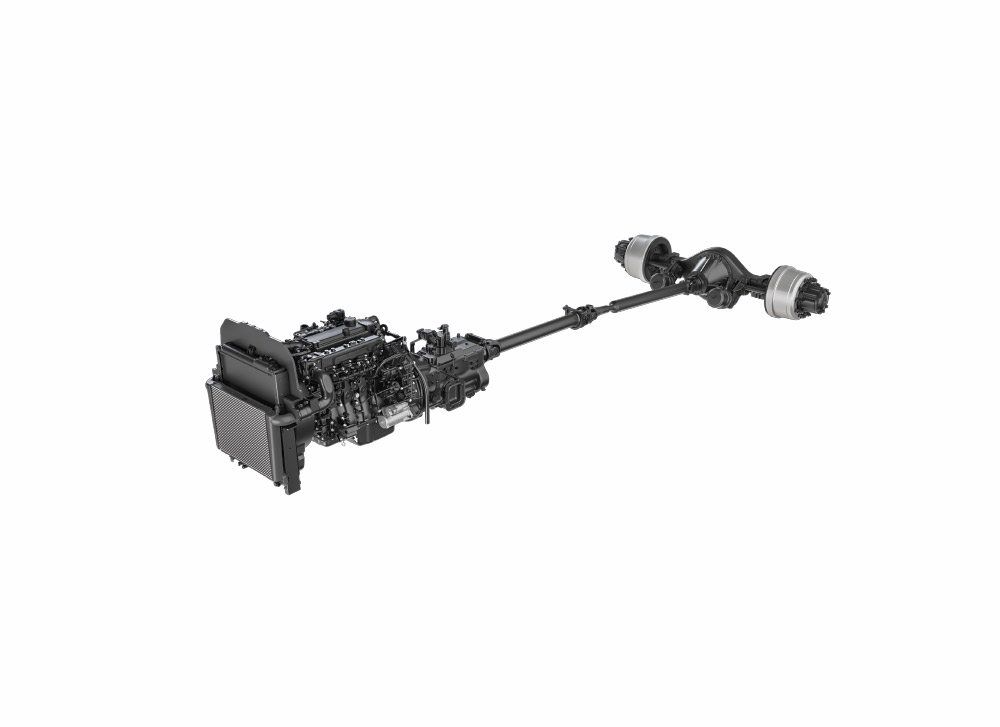

| Engine Make | E474 |
| Displacement (cc) | 2960 |
| Power | 105kW @ 3200 Rpm |
| Torque | 400Nm @ 1200- 2500 Rpm |
| Clutch | 310 mm |
| Transmission Make | ET35S6 |
| Transmission Type | synchromesh (6 Speed,1 Rev) |
| GVW | 9.9 t |

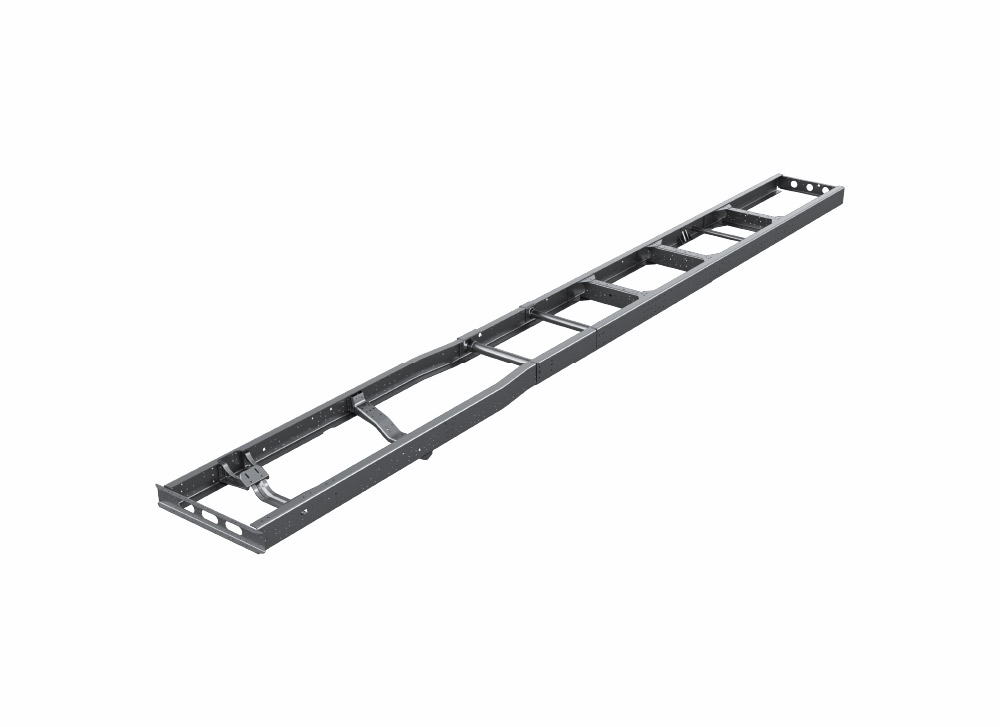

| Chassis Type | Domex 650 |
| Chassis C frame dimensions | 200x65x5 mm |
| Fuel Tank Capacity | 160 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 235/75 R17.5- 14PR (Radial Tubeless ) |
| Suspension Front | Parabolic with Anti-Roll Bar |
| Suspension Rear | Parabolic |

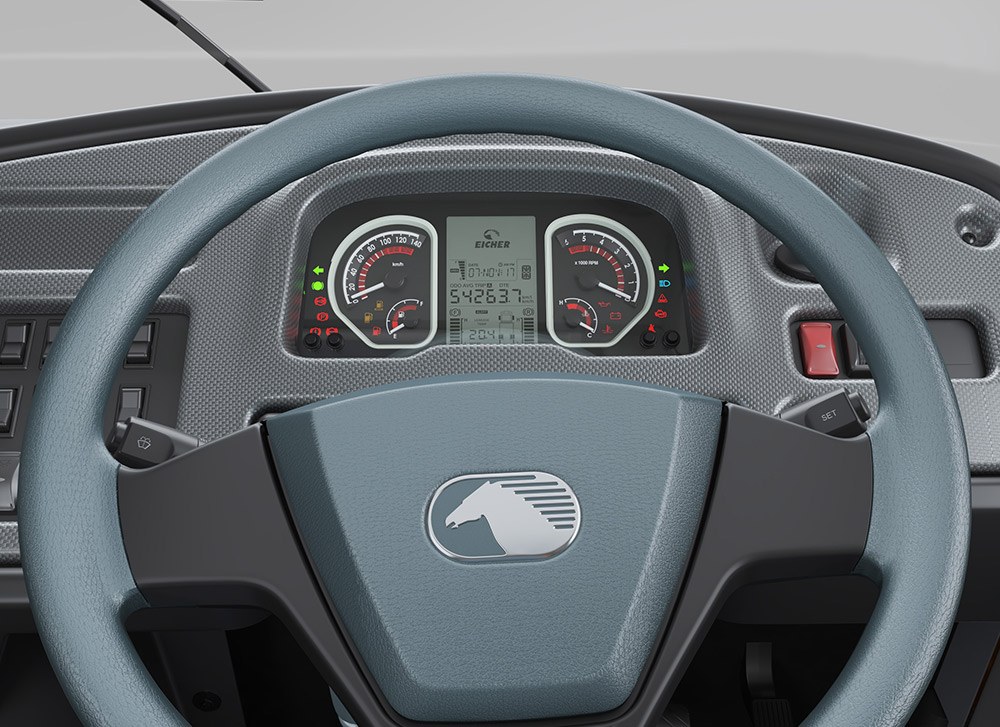

| Steering | Power Steering |
| Battery | 12V 130Ah |
| Alternator | 110A x 2 |
| Flooring | Vinyl |

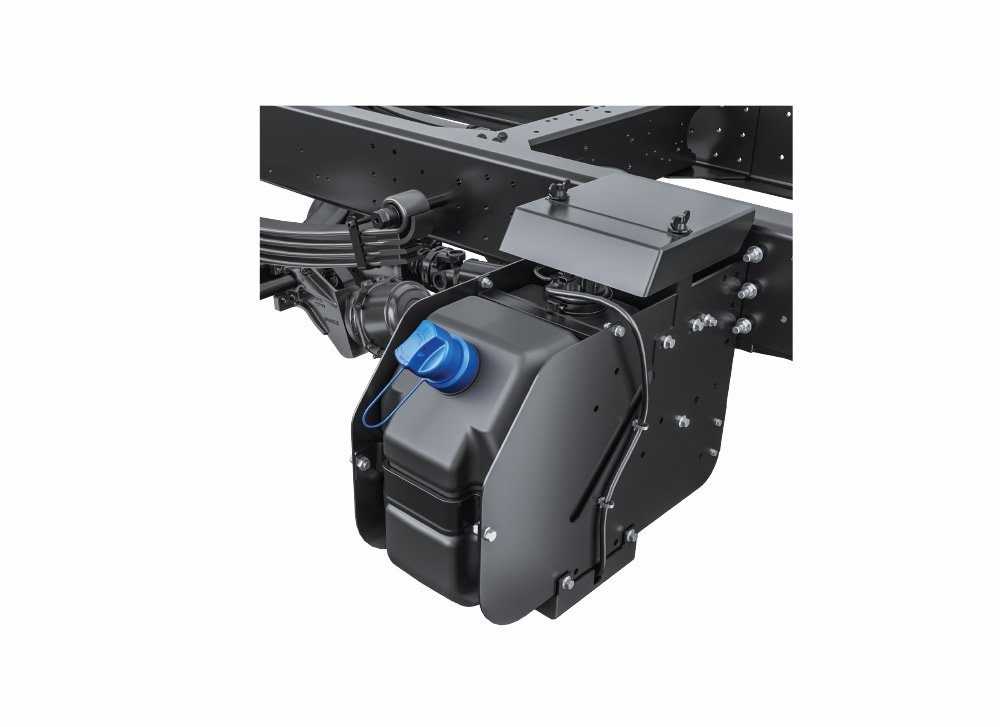

| DEF Tank Capacity | 19 litres |
