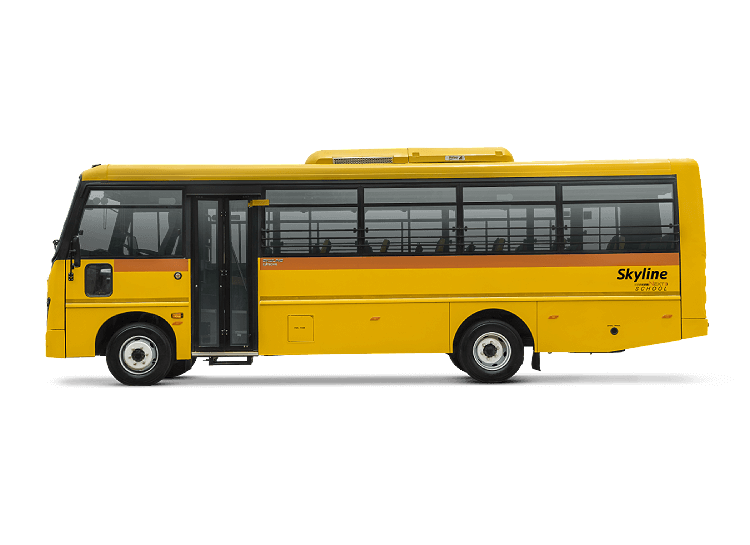

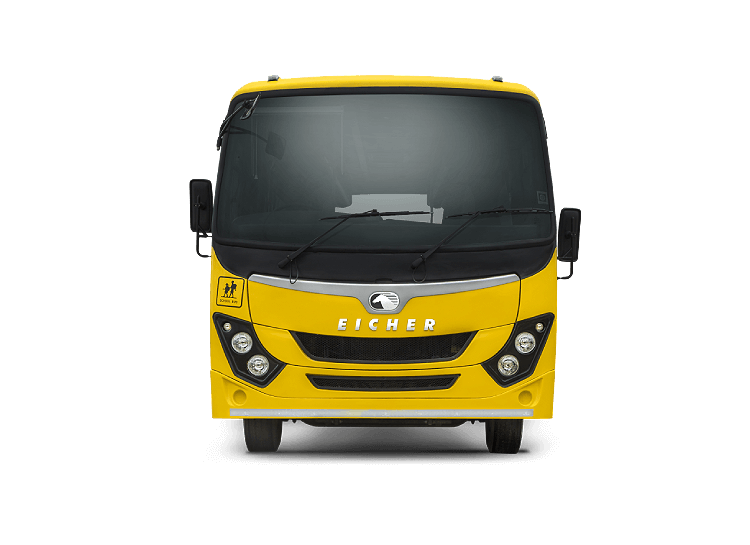

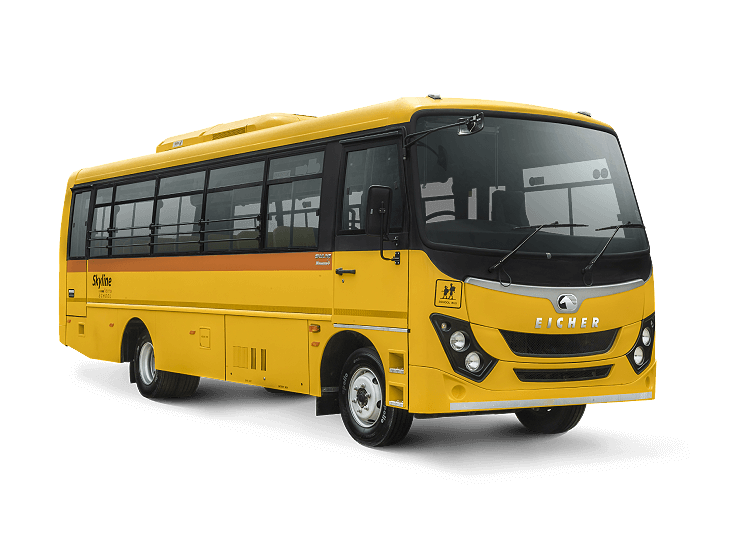

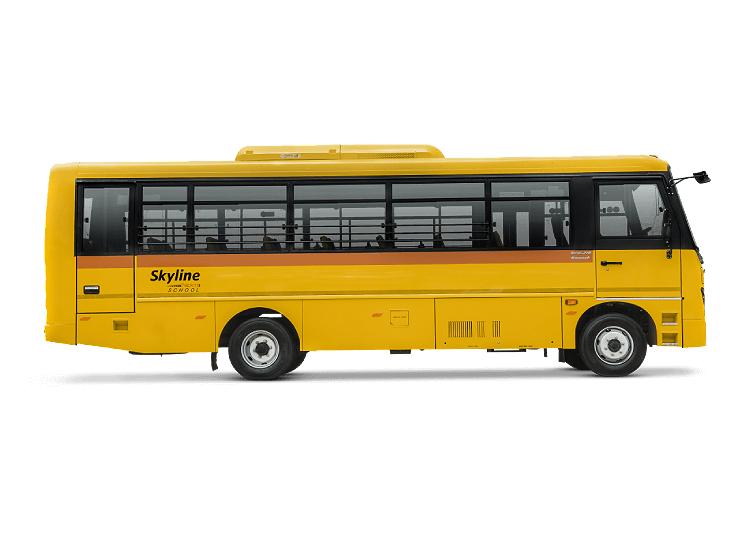

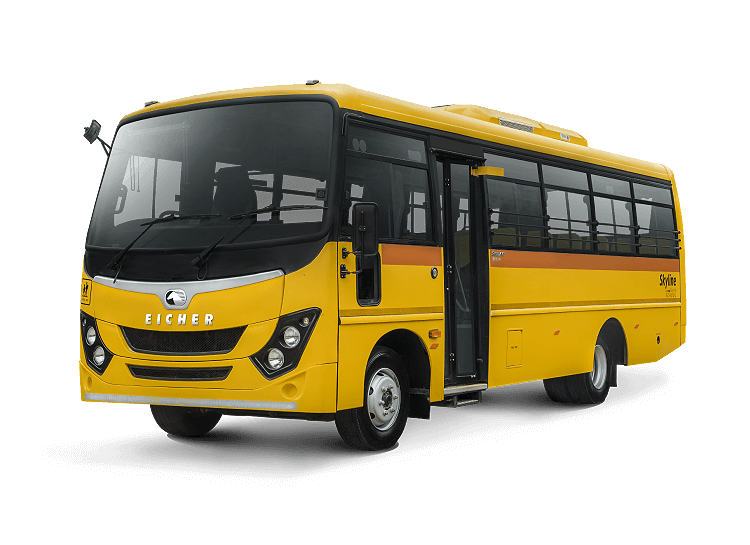

- Exterior
- Interior
- Video
Eicher Skyline 2112 M
Give your young passengers a smooth ride and put your business in the top gear with the Eicher Skyline 2112 M school bus.The spacious and aesthetically designed 2590 mm wide bus body perfectly balances safety, comfort, and performance. Silent suspension and radial tubeless tyres contribute to the luxury. The state-of-the-art E494 engine delivers performance, optimum fuel efficiency and lower maintenance costs.
Seating Capacity61
EngineE494
Power 120 kW
Torque500 Nm
Fuel TypeDiesel
- Specification
- Technology
| SPECIFICATIONS | 2112 M |
|---|---|
| Seating Capacity | 59+1+D (3x3) |
| Wheelbase | 5330 mm |
| Overall Length | 9970 mm |
| Overall Width | 2590 mm |
| Overall Height | 3245 mm |
| Min Ground Clearance | 232 mm |
| Front Overhang | 1450 mm |
| Rear Overhang | 3190 mm |
| Turning Circle Diameter | 19.2 m |
| Engine Make | E494 |
| Displacement (cc) | 3770 |
| Power | 120kW @ 2600 Rpm |
| Torque | 500 Nm @ 1200-1800 rpm |
| Clutch | 330 mm |
| Transmission Make | ET40S6 |
| Transmission Type | synchromesh (6 Speed,1 Rev) |
| GVW | 13.1 t |
| Chassis Type | Domex 650 |
| Chassis C frame dimensions | 210 X 76 X 6 mm |
| Fuel Tank Capacity | 190 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 9R20-16PR |
| Suspension Front | Weveller Suspension |
| Suspension Rear | Weveller Suspension |
| Steering | Power Steering |
| Battery | 12V 130Ah |
| Alternator | 110A |
| Flooring | Vinyl |
| DEF Tank Capacity | 27 litres |
