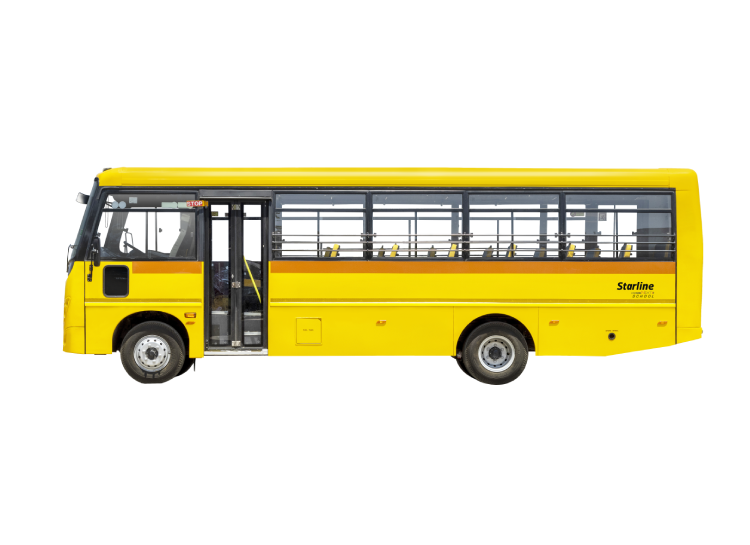

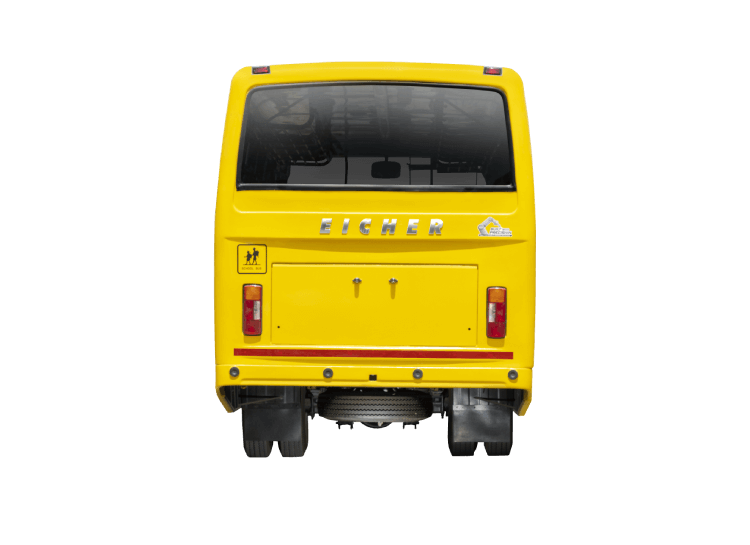

- Exterior

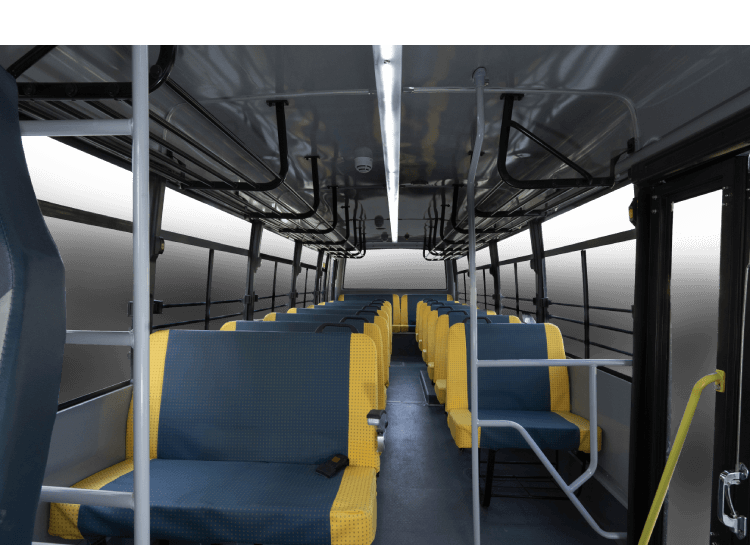

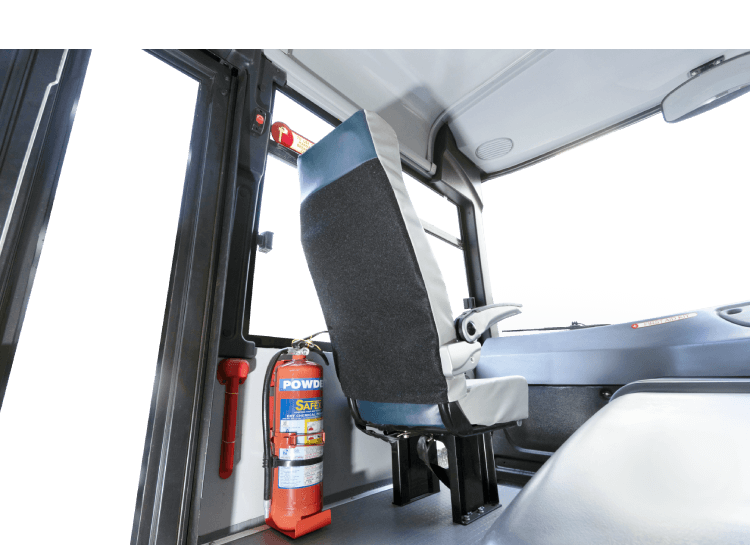

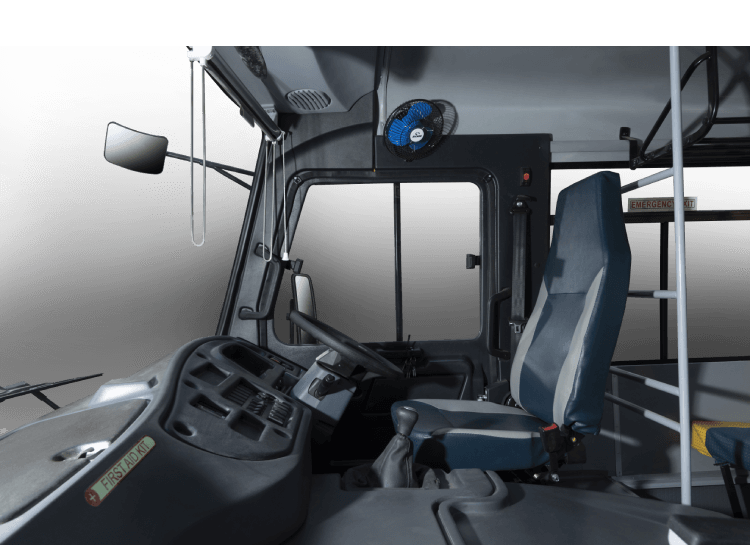

- Interior
- Video

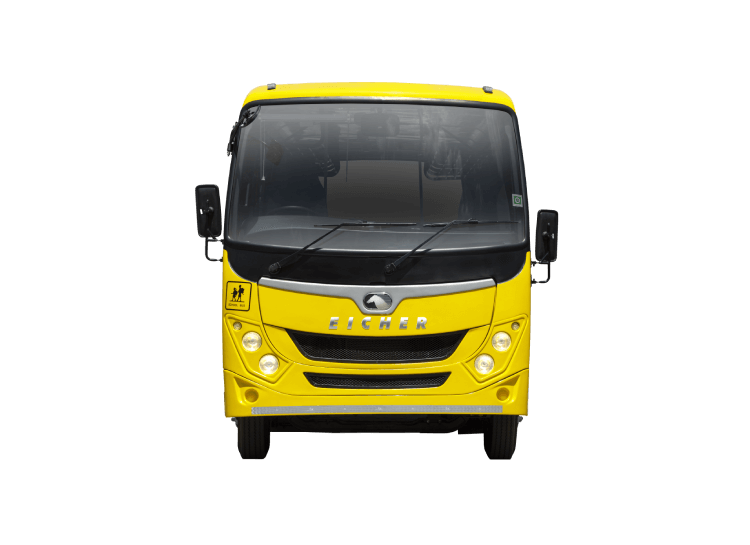

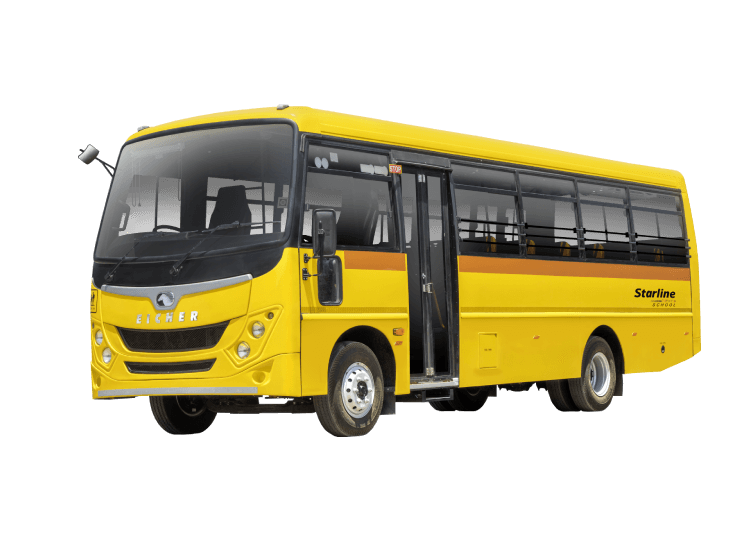

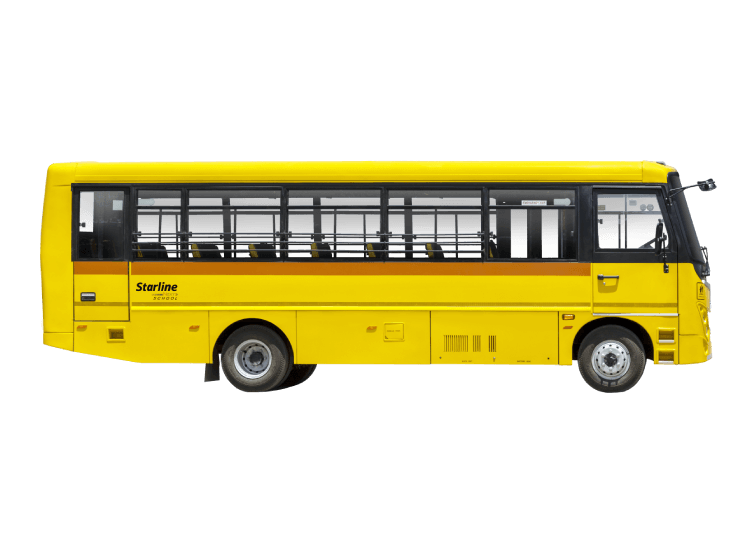

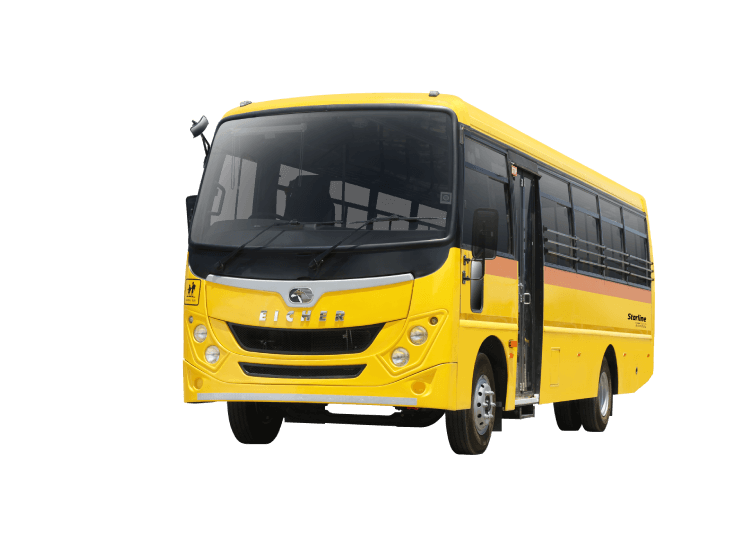

Eicher Starline 2090 L

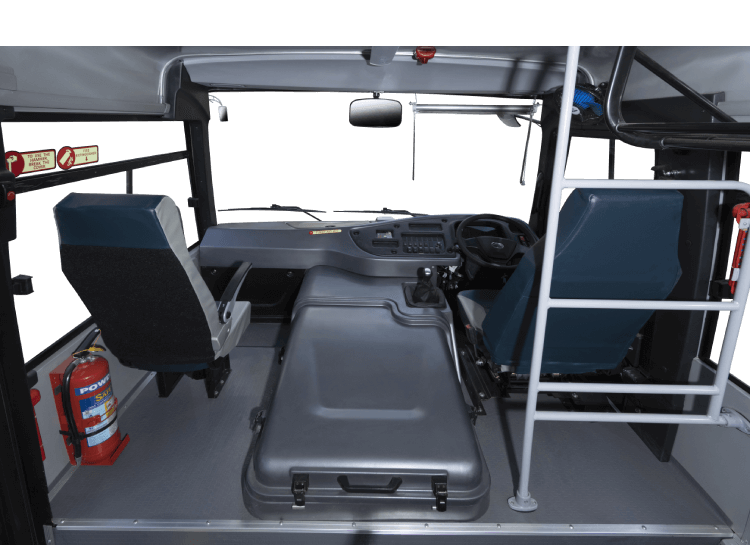

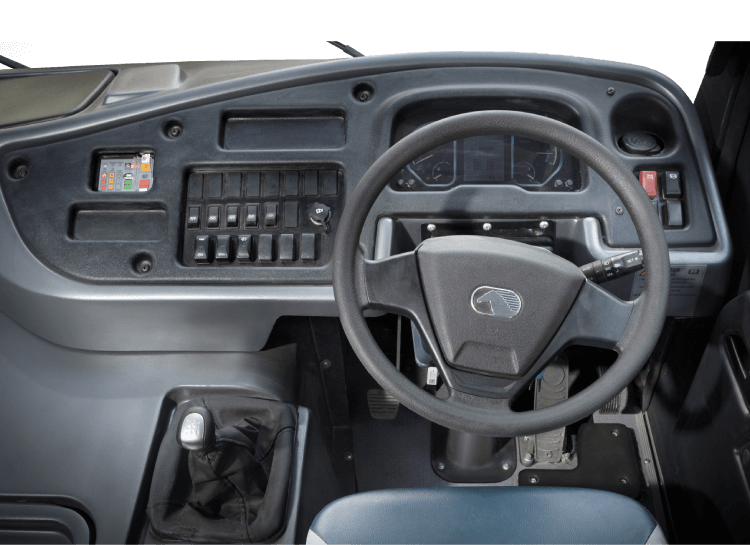

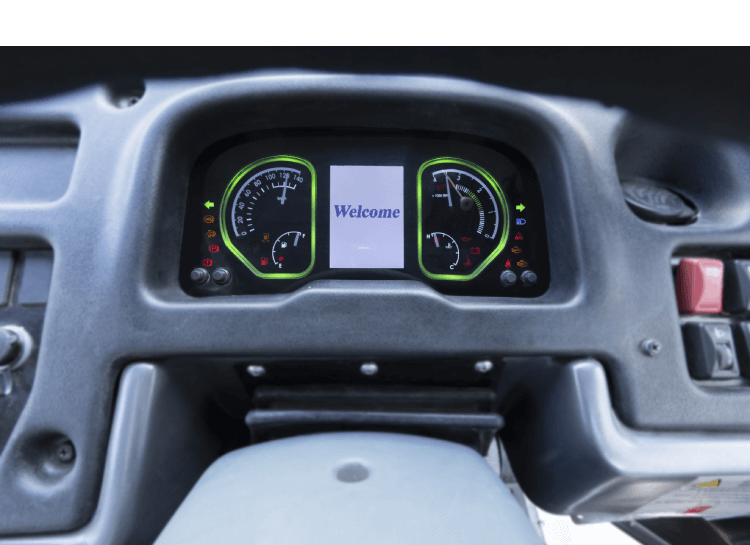

The all new Starline is designed to deliver best in class operating economics with higher safety and comfort for the young leaders. Superior fuel efficiency coupled with lower maintenance costs leads to high profitability. The modern driveline is complemented by contemporary design by way of uni-tone front Pegasus looks and refreshed interiors.
Seating Capacity43/52
EngineE474
Power 105 kW
Torque400 Nm
Fuel TypeDiesel
- Specification
- Technology
| SPECIFICATIONS | 2090 L |
|---|---|
| Seating Capacity 2X2 | 41+CD+D |
| Seating Capacity 3X2 | 50+CD+D |
| Wheelbase | 5240 mm |
| Overall length | 9584 mm |
| Overall width | 2164 mm |
| Overall height | 2860 mm |
| Front overhang | 1200 mm |
| Rear overhang | 3144 mm |
| Turning circle diameter | 19.4 m |
| Engine | E474 |
| Displacement (cc) | 2960 |
| Power | 105 kW @ 3200 Rpm |
| Torque | 400 Nm @ 1200 – 2500 Rpm |
| Clutch diameter | 310 mm |
| Transmission Make | ET35S6 ,ET35S5 |
| Transmission Type | Synchromesh (6 SPeed+1Rev) ,Synchromesh (5SPeed+1Rev) |
| GVW | 9.8 t |
| Chassis frame | Domex® 650 |
| Chassis C frame dimensions | 200X65X5 mm |
| Fuel tank capacity | 160 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 8.25x16 - 16 PR |
| Suspension - front | Semi elliptic |
| Suspension - rear | Semi elliptic |
| Steering | Power steering |
| Battery | 12V 130Ah |
| Alternator | 110A |
| Floor type | Button type Vinyl |
| DEF tank capacity | 19 litres |
