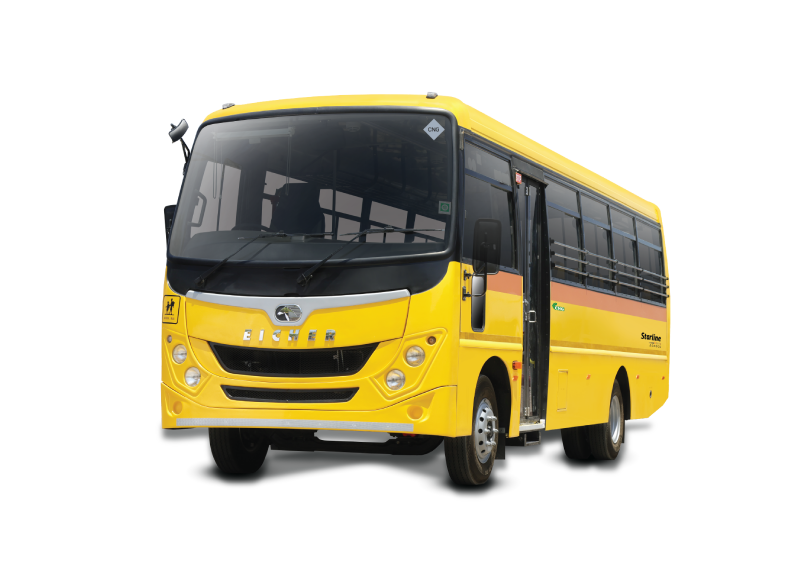

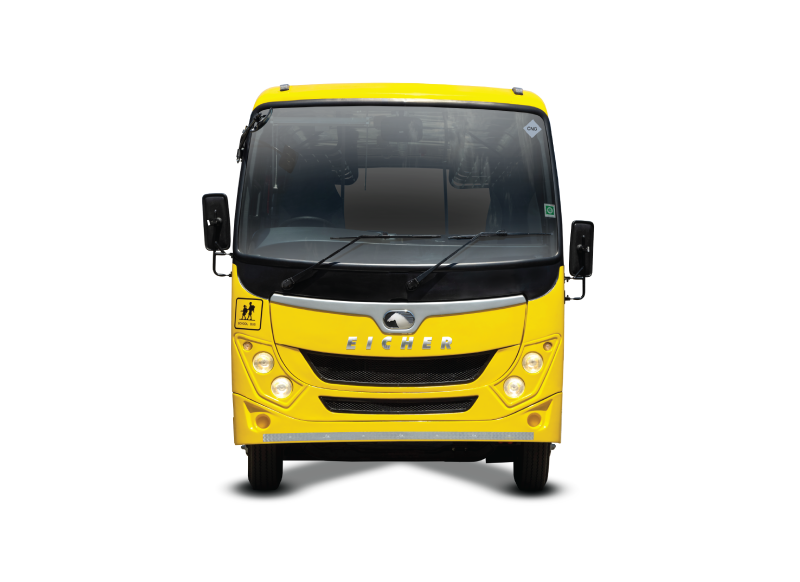

Eicher Starline 2090 L CNG
The all new Starline is designed to deliver best in class operating economics with higher safety and comfort for the young leaders. Superior fuel efficiency coupled with lower maintenance costs leads to high profitability. The modern driveline is complemented by contemporary design and refreshed interiors.
Seating Capacity42/51
EngineE483 TCIC
Power 85 kW
Torque360 Nm
Fuel TypeCNG
- Specification
- Technology
| SPECIFICATIONS | Starline 2090 L CNG |
|---|---|
| Seating Capacity (HHR) | 40+1+D (2x2); 49+1+D (3x2) |
| Wheelbase | 5165 mm |
| Overall Length | 9344 mm |
| Overall Width | 2160 mm |
| Overall Height | 2840 mm |
| Front Overhang | 1080 mm |
| Rear Overhang | 3099 mm |
| Engine Make | E483 TCIC |
| Displacement (cc) | 3298 |
| Power | 85 kW @ 2600 Rpm |
| Torque | 360 Nm @ 1600-2000 Rpm |
| Clutch | 310 mm |
| Transmission Make | ET35S5 |
| Transmission Type | Synchromesh (5 Speed + 1 rev) |
| GVW | 9.4 t |
| Chassis Type | Ladder - Joggle type |
| Chassis dimension | 210X65X6 mm |
| Cylinder Capacity | 480 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 8.25 X 16 -16 PR |
| Suspension Front | Semi elliptic |
| Suspension Rear | Semi elliptic |
| Steering | Power steering |
| Battery | 12 V, 130 Ah |
| Alternator | 90 A |
| Floor Type | Button vinyl |
