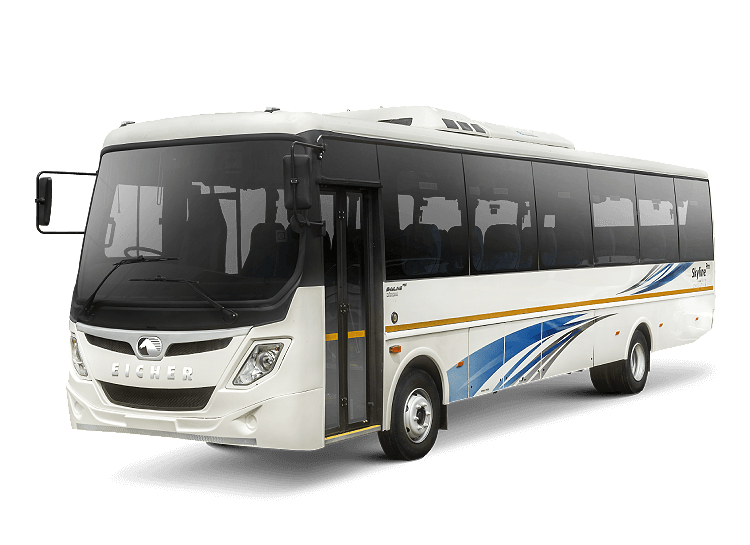

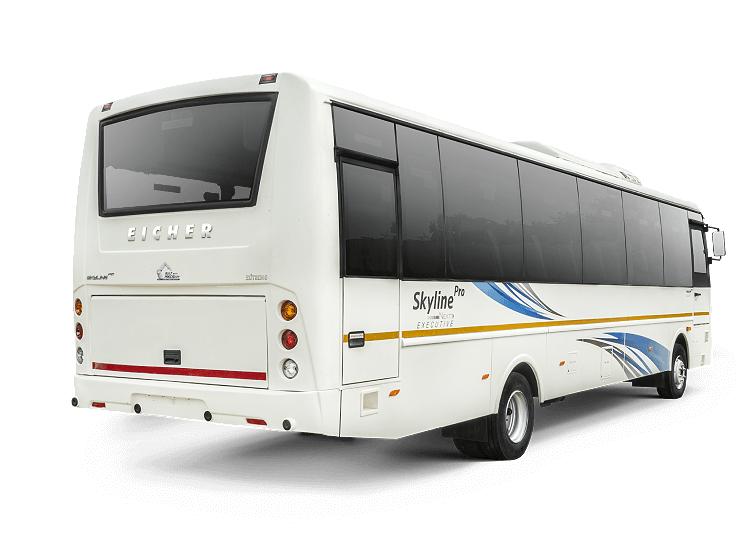

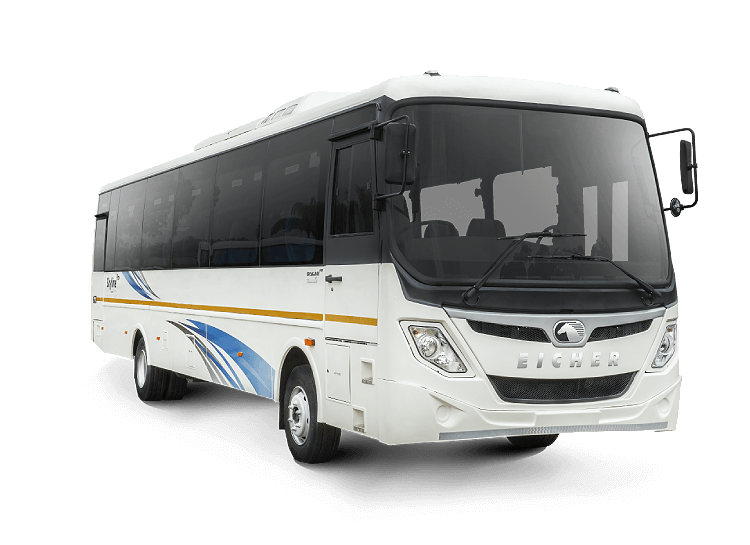

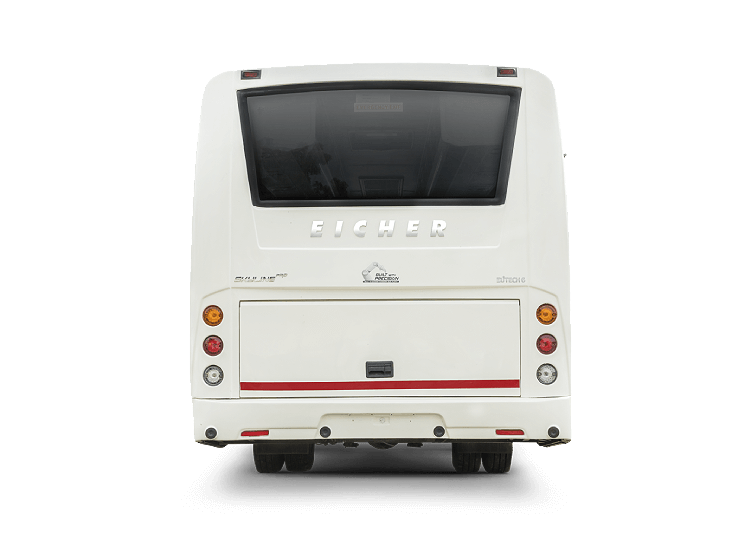

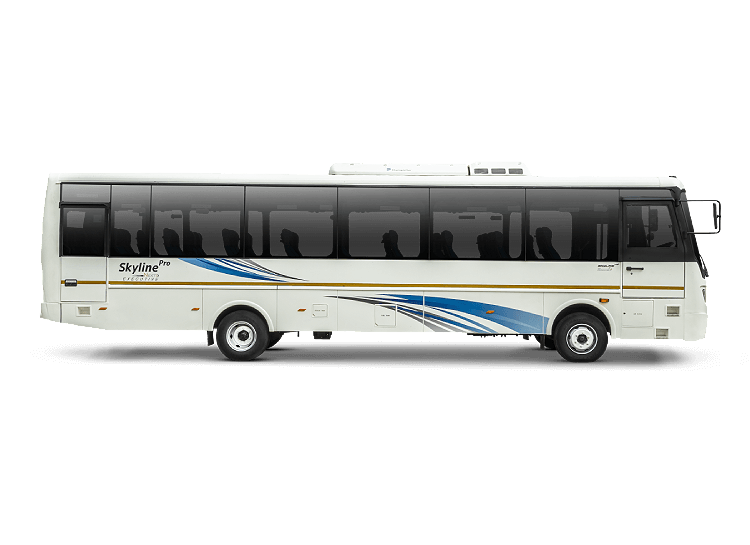

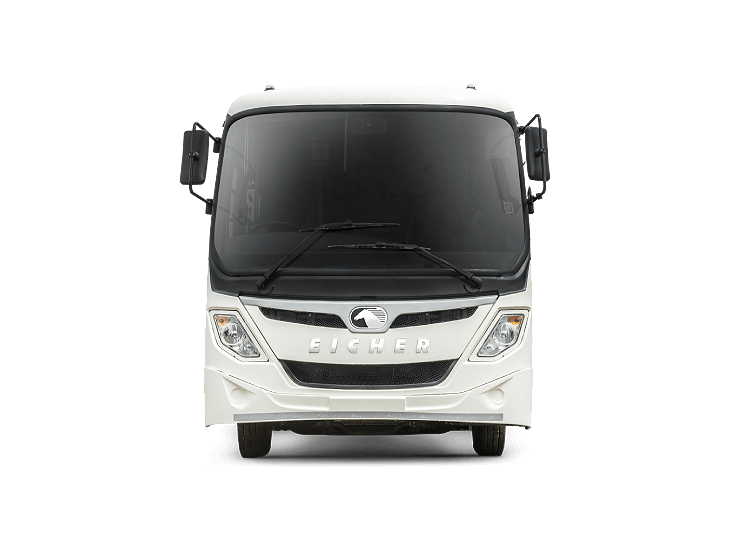

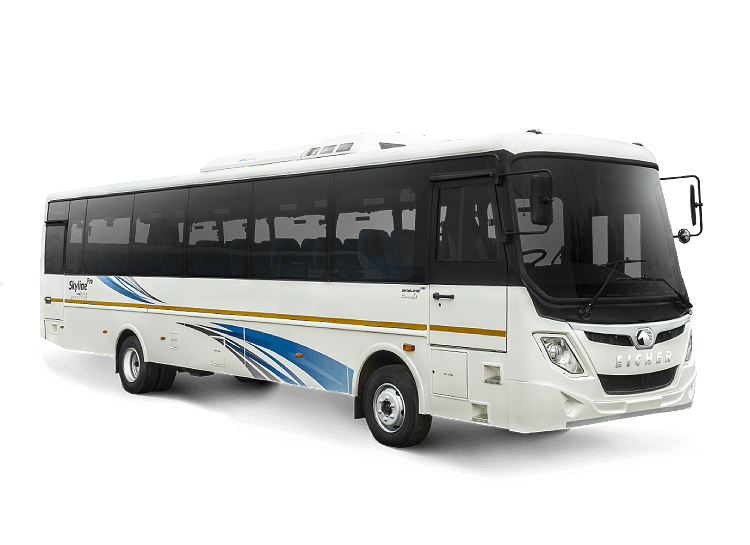

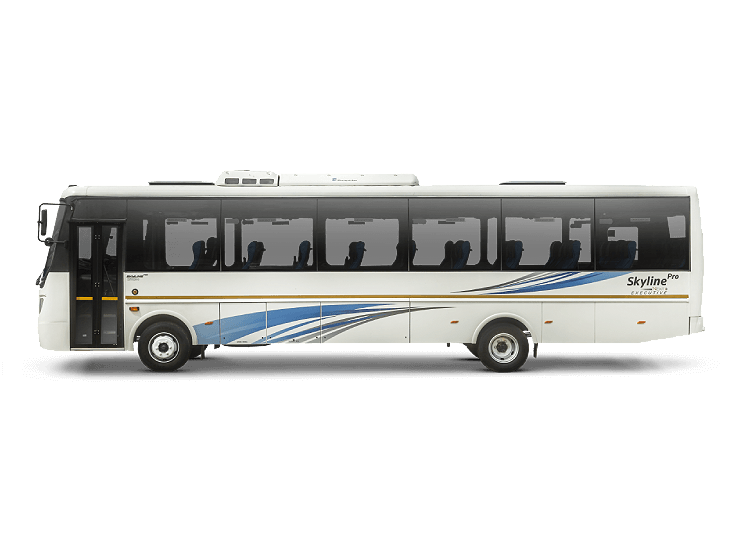

- Exterior

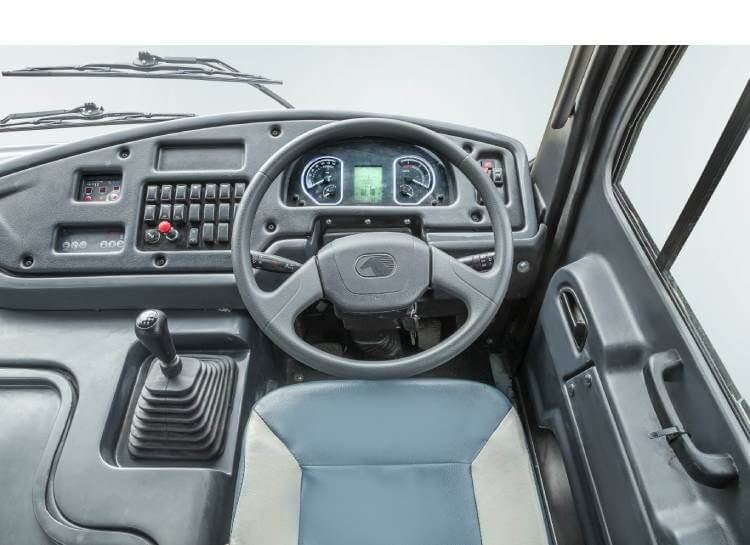

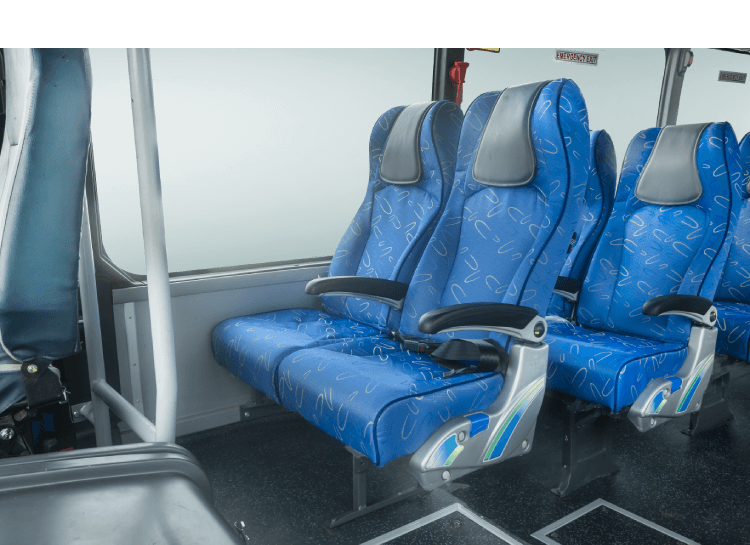

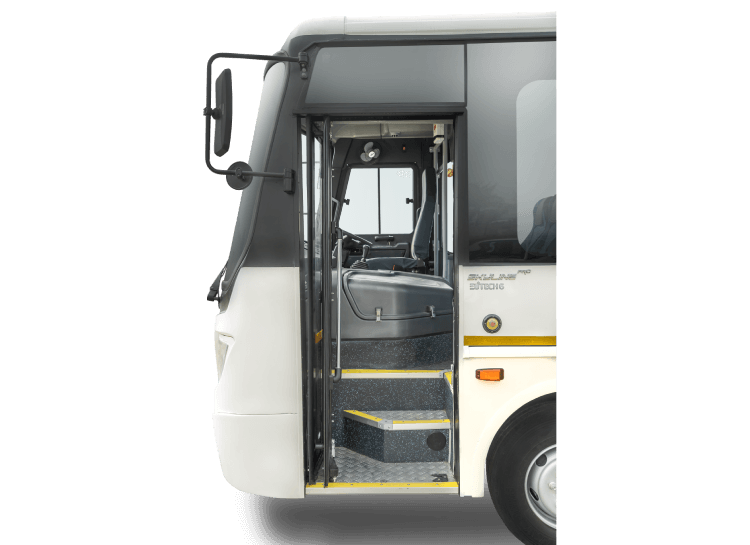

- Interior

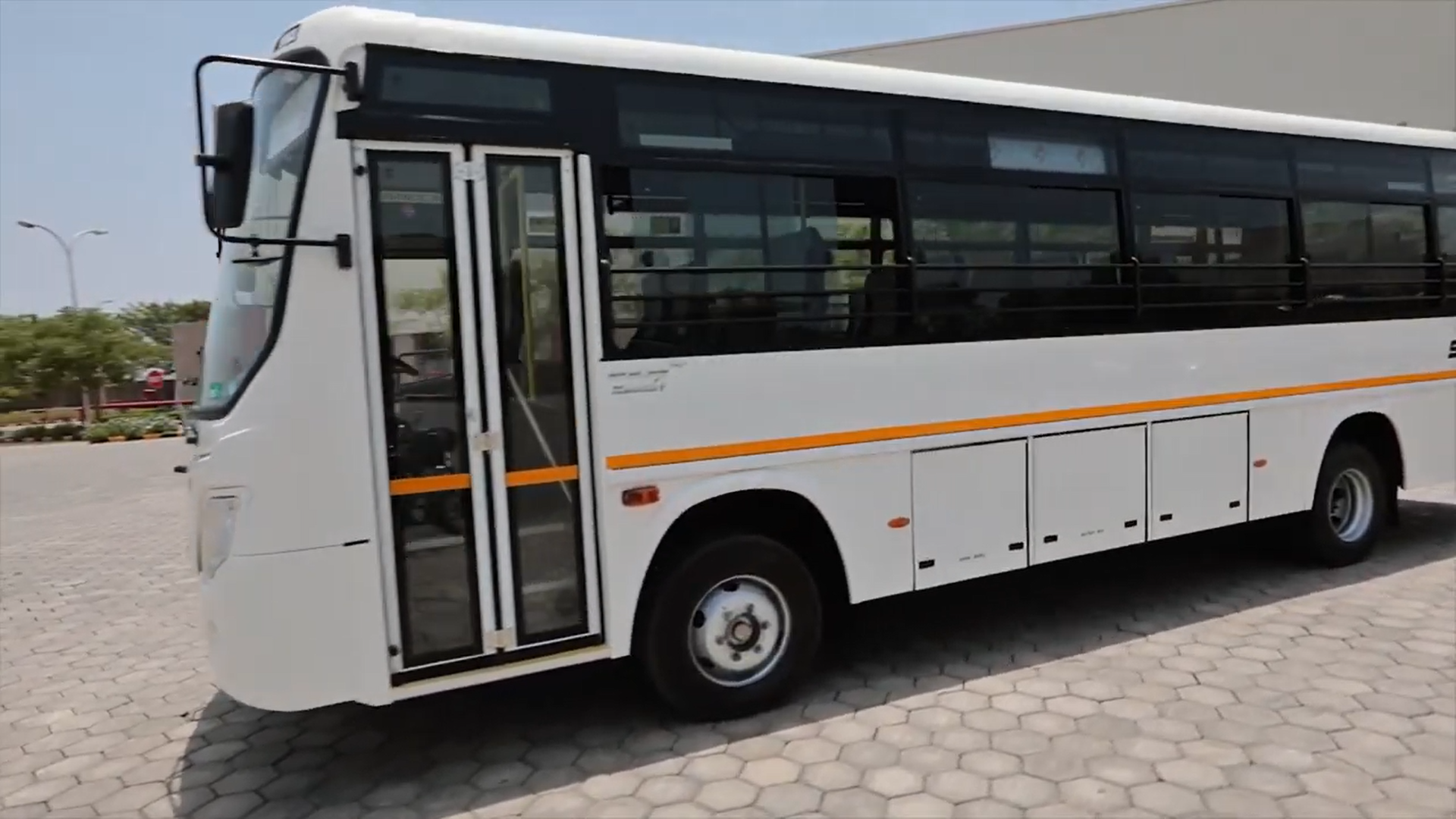

- Video
Eicher Skyline Pro 3009 H
As part of the Skyline Pro premium range, this staff bus is meticulously crafted on the reliable 3000 series platform. It is powered by the E494 engine, which delivers an impressive 160 HP with best-in-class fuel efficiency. The refreshed design, pasted tinted glass windows, LED-lit modular hat-rack, plush pushback seats, and versatile seating configurations ensure a comfortable travel experience.
Seating Capacity37/33/26
EngineE494/E474
Power 120 kW/105 kW
Torque500 Nm/400 Nm
Fuel TypeDiesel
- Specification
- Technology
| Specifications | Skyline Pro 3009 H |
|---|---|
| Seating Capacity | 36+D HHR 2X2 |
| 32+D PB 2X2 | |
| Wheelbase | 4320 mm |
| Overall Length | 8957 mm |
| Overall Width | 2350 mm |
| Overall Height | 2993 mm |
| Overhang | Front : 2045 mm |
| Rear : 2592 | |
| Turning Circle Diameter | 15.2 m |
| Engine Make | E494 / E474 |
| Displacement (cc) | 3770 / 2960 |
| Power | 120 kW @ 2600rpm / 105kW @ 3200 rpm |
| Torque | 500 Nm @ 1200-1800rpm / 400 Nm @ 1200 – 2500rpm |
| Clutch | 330 mm |
| Transmission | Make : ET40S6 / ET40S5 |
| Type : Synchromesh (6 Speed + 1 Rev) / Synchromesh (5 Speed +1 Rev) | |
| GVW | 9.8 t |
| Chassis Type | Domex 650 |
| Chassis dimension | 210 X 76 X 6 mm |
| Fuel Tank Capacity | 100 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 235/75 R17.5-14PR Tubeless |
| Suspension | Front : Parabolic with ARB |
| Rear : Parabolic | |
| Steering | Power steering |
| Battery | 12V 130Ah |
| Alternator | 110 A |
| Flooring | Silicon embedded vinyl |
| DEF Tank Capacity | 27 litres |
