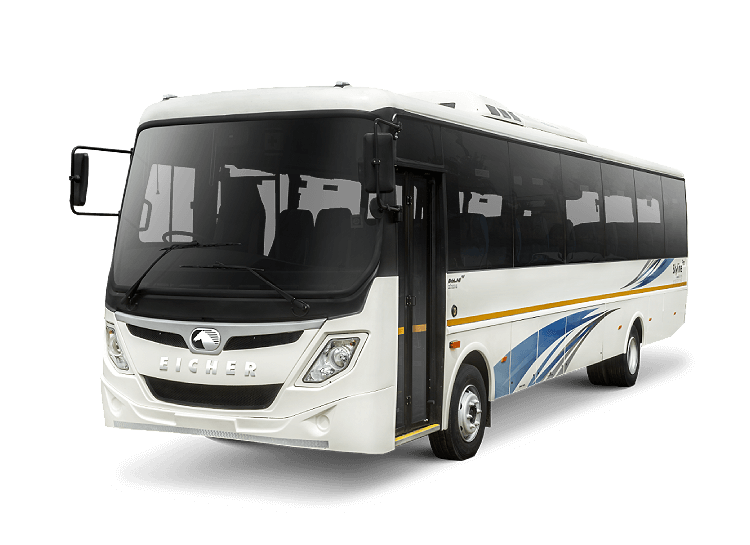

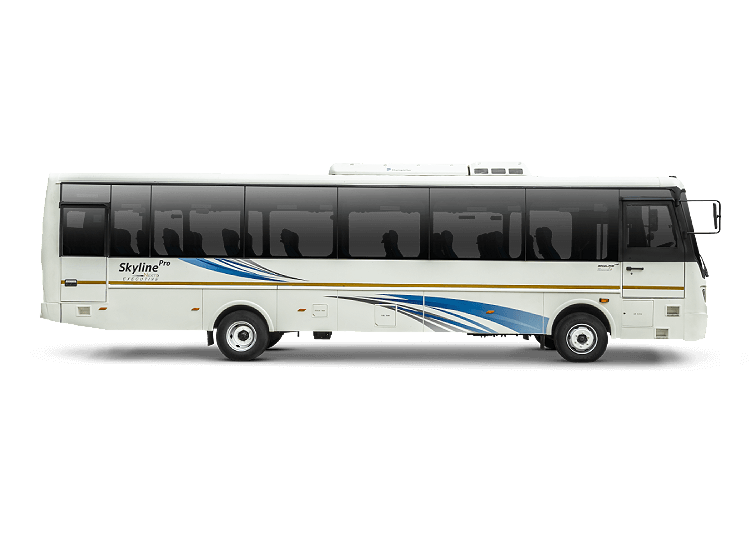

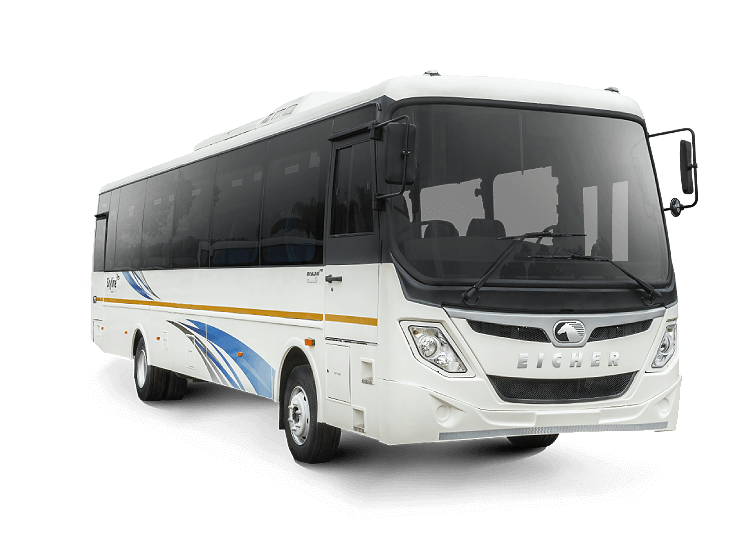

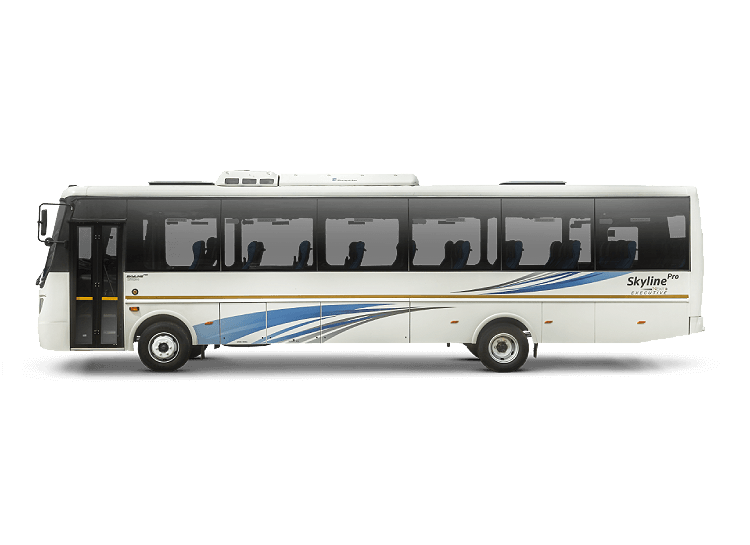

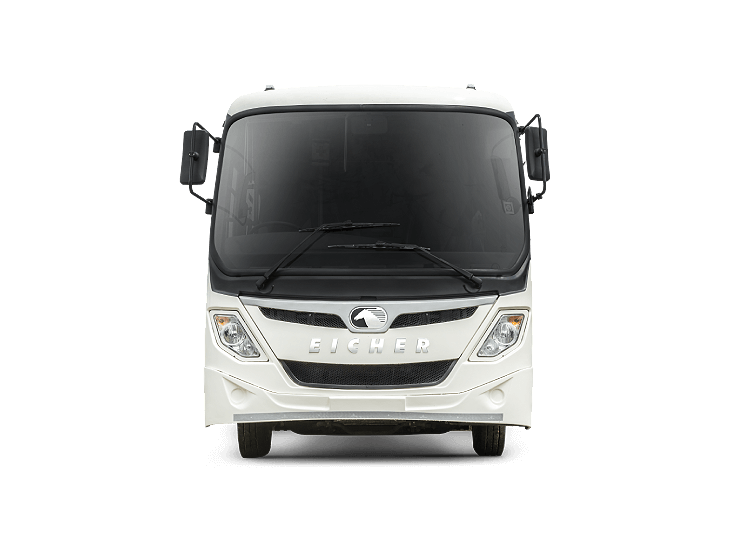

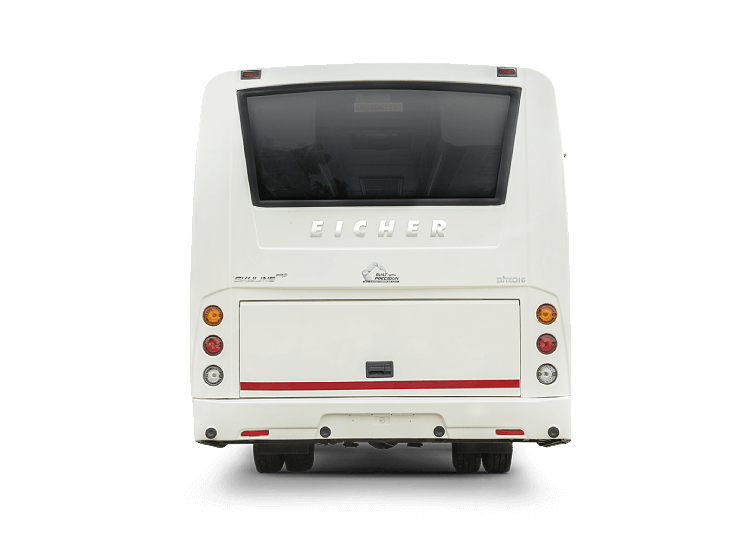

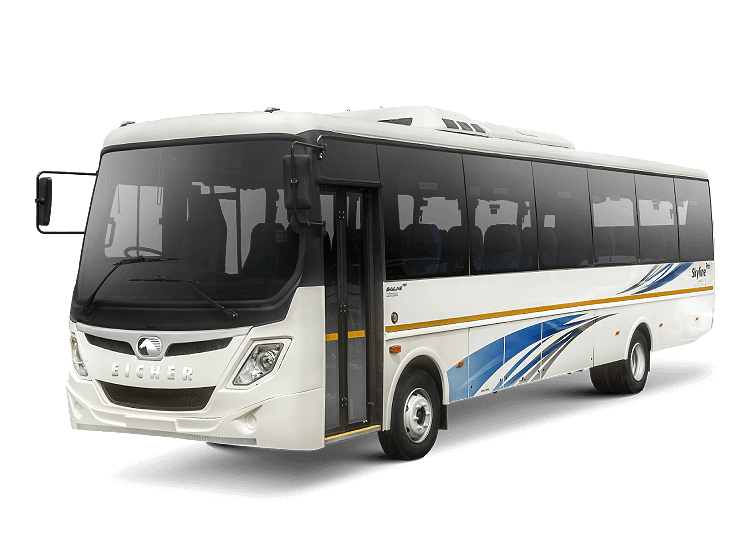

- Exterior

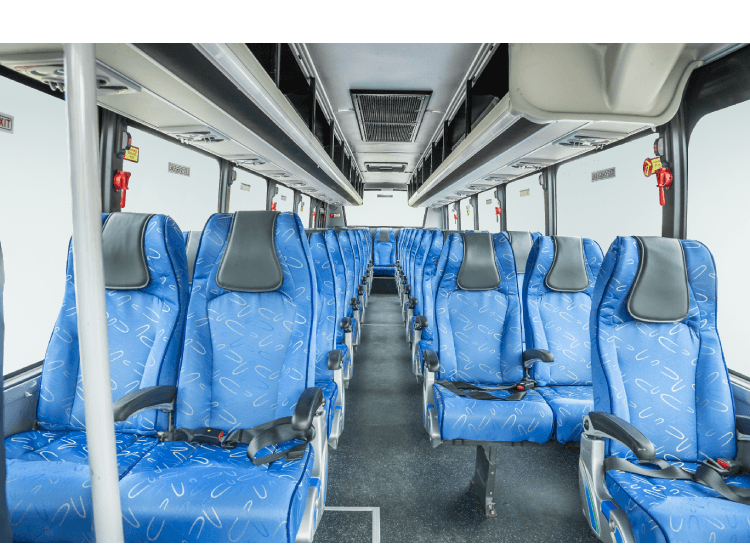

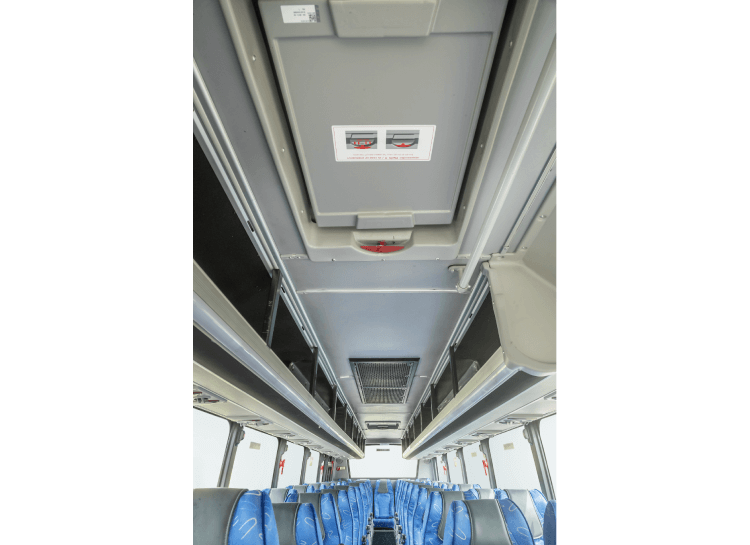

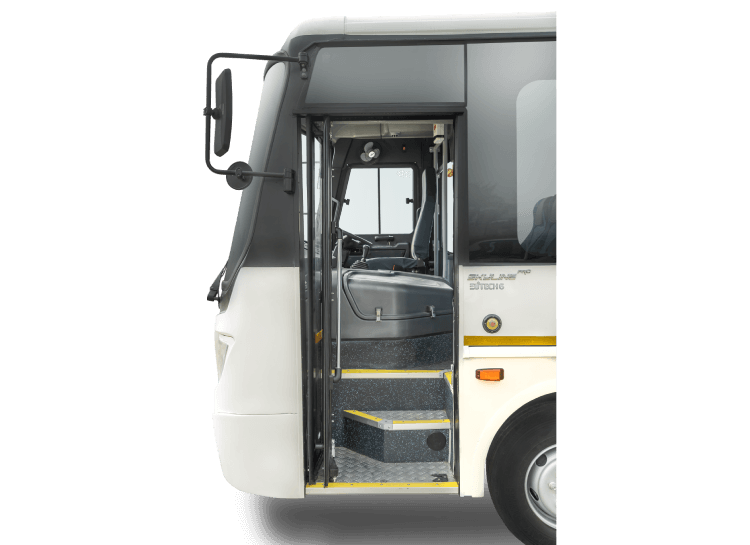

- Interior
- Video
Eicher Skyline Pro 3010 L AC
Part of the new Skyline Pro premium range, Eicher Skyline Pro 3010 L AC staff bus is built on the reliable 3000 series platform. The robust E494 engine, delivering 160 HP with exceptional fuel efficiency, guarantees that your staff arrives punctually, ready to contribute their best to your organisation. The factory-built AC coach, pasted tinted glass windows, LED-lit modular hat-rack, plush pushback seats, and versatile seating configurations are designed to make every commute not just bearable but enjoyable, fostering a positive and productive atmosphere.
Seating Capacity45/41/32
PowerE494- Power 120 kW
Torque500 Nm
Fuel TypeDiesel
- Specification
- Technology
| Specifications | Skyline Pro 3010 L AC |
|---|---|
| Seating Capacity | 44+D HHR 2x2 |
| 40+D PB 2X2 | |
| 31+D PB 2X1 | |
| Wheelbase | 5260 mm |
| Overall Length | 10439 mm |
| Overall Width | 2350 mm |
| Overall Height | 3145 mm |
| Overhang | Front : 2045 mm |
| Rear : 3134 mm | |
| Turning Circle Diameter | 18.5 m |
| Engine Make | E494 |
| Displacement (cc) | 3770 |
| Power | 120 kW @ 2600 Rpm |
| Torque | 500 Nm @ 1200-1800 Rpm |
| Clutch | 330 mm |
| Transmission | Make : ET40S6 |
| Type : Synchromesh (6 SPeed + 1 Rev) | |
| GVW | 10.7 t |
| Chassis Type | Domex 650 |
| Chassis dimension | 210 X 76 X 6 mm |
| Fuel Tank Capacity | 160 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 235/75 R17.5-14PR Tubeless |
| Suspension | Front : Parabolic with ARB |
| Rear : Parabolic | |
| Steering | Power steering |
| Battery | 2 x 12V 130 Ah |
| Alternator | 2 x 120 A |
| Flooring | Silicon embedded vinyl |
| DEF Tank Capacity | 27 litres |
