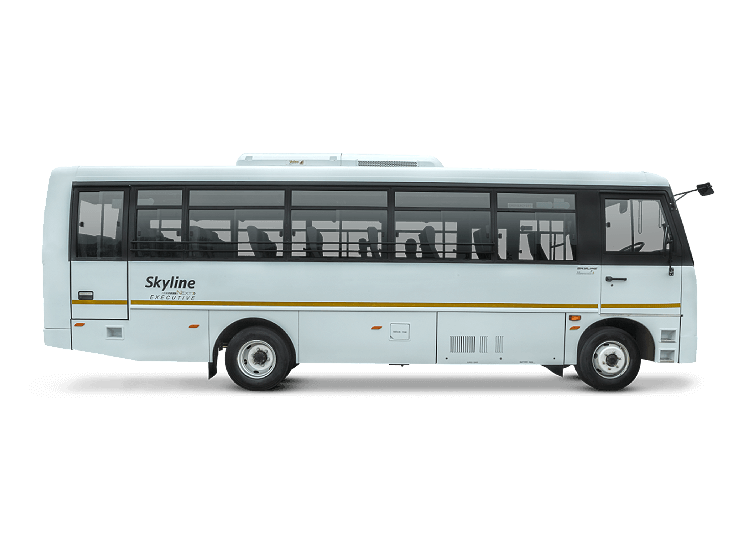

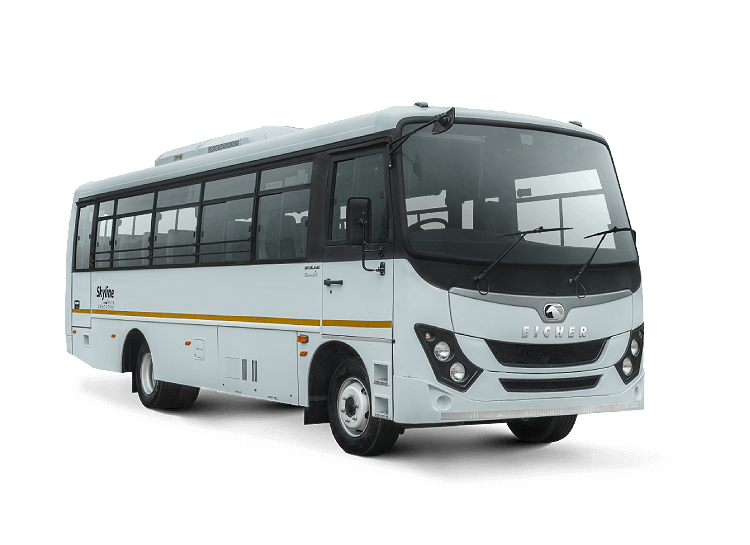

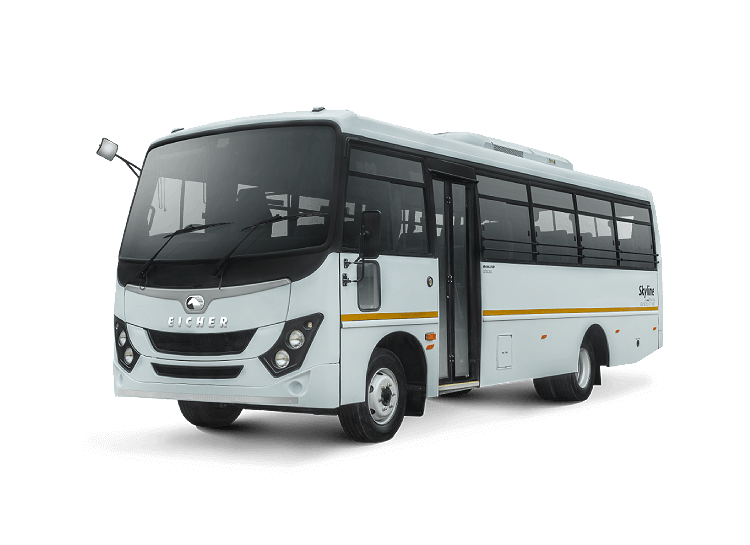

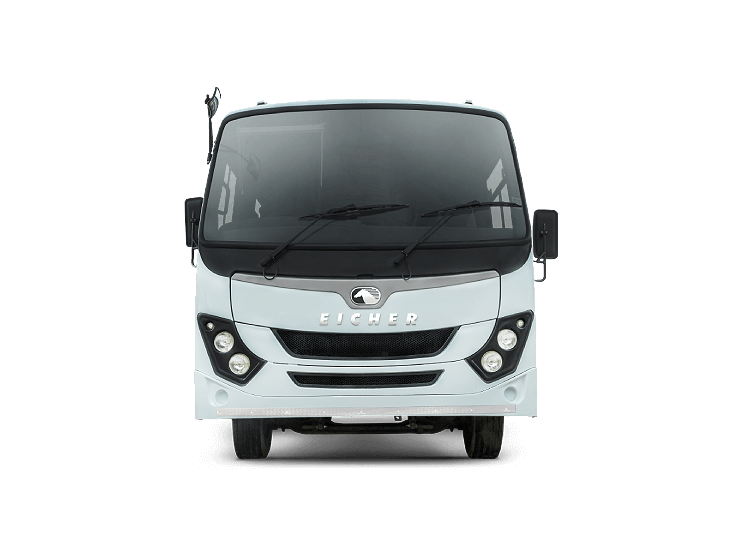

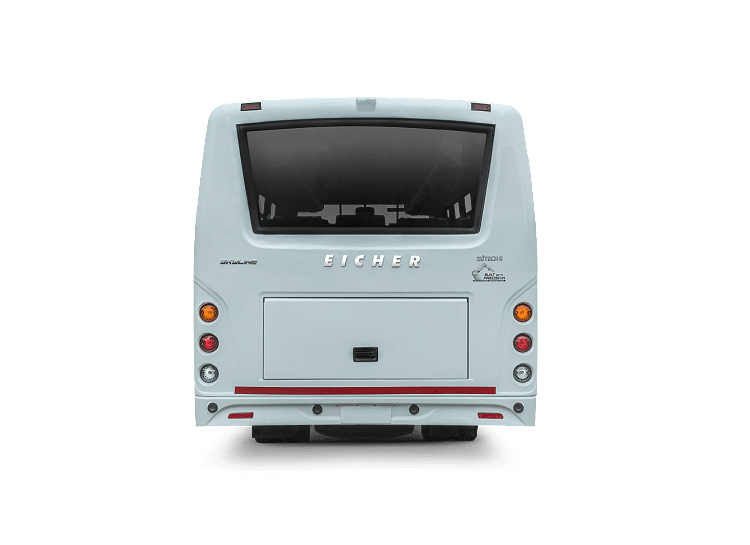

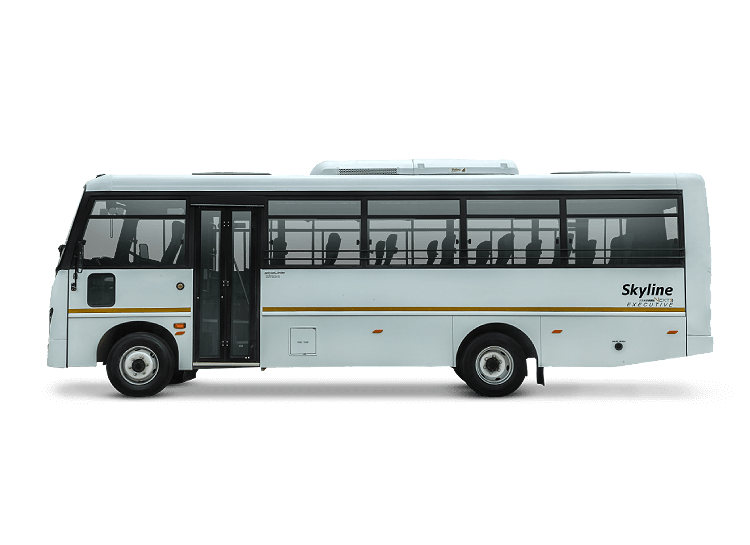

- Exterior

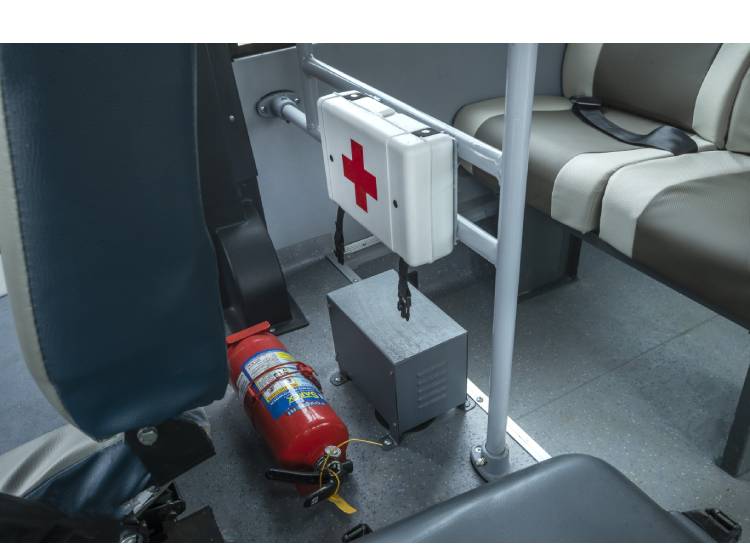

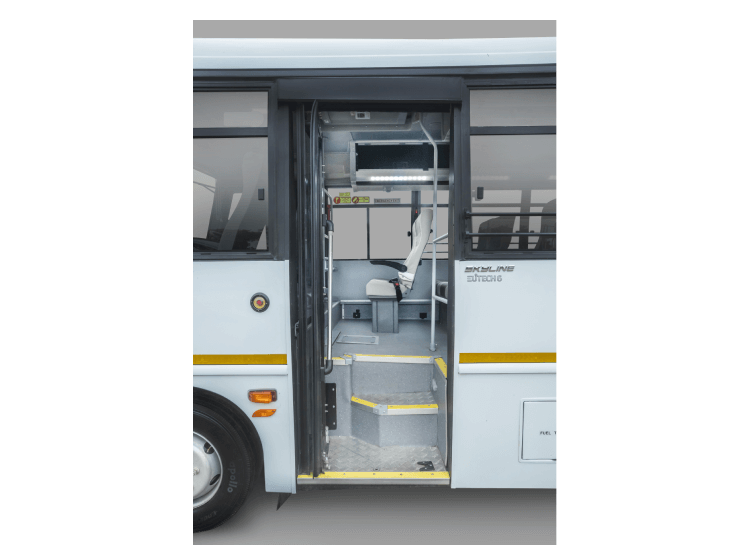

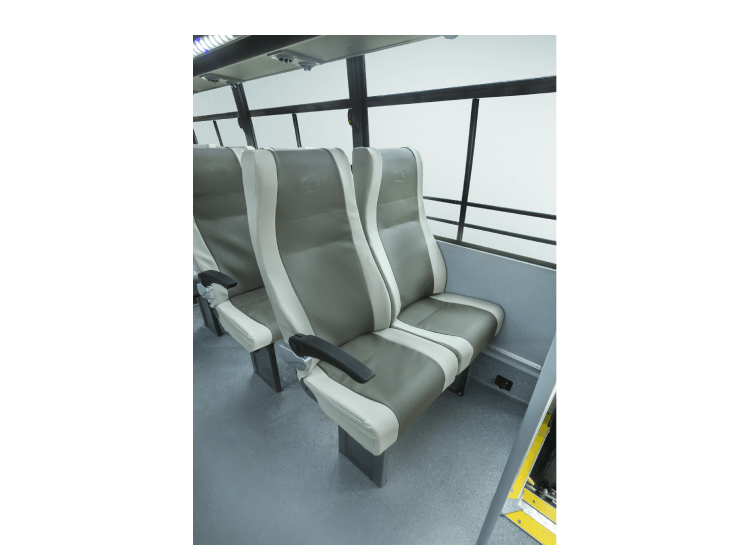

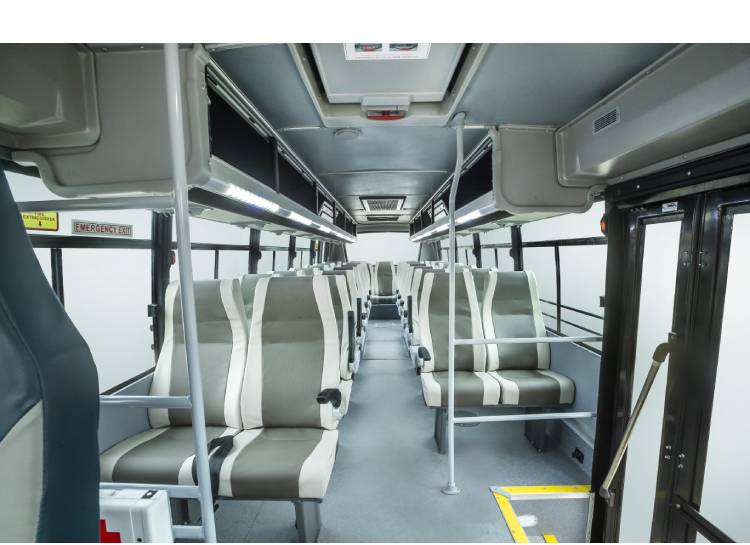

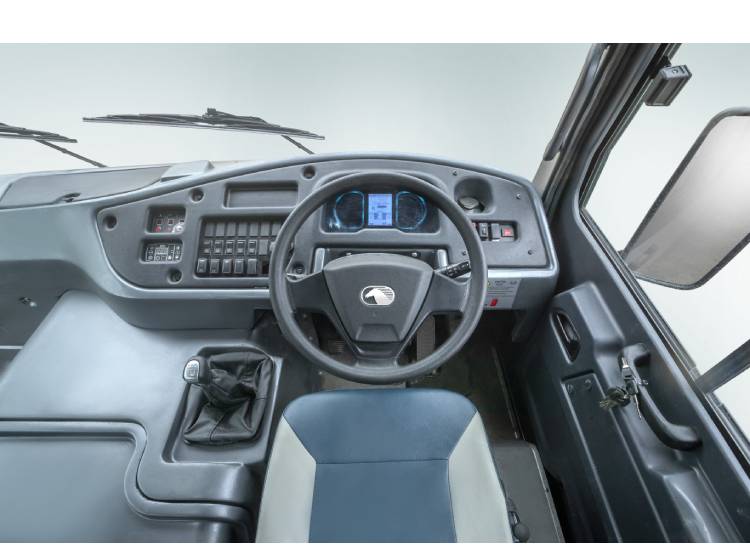

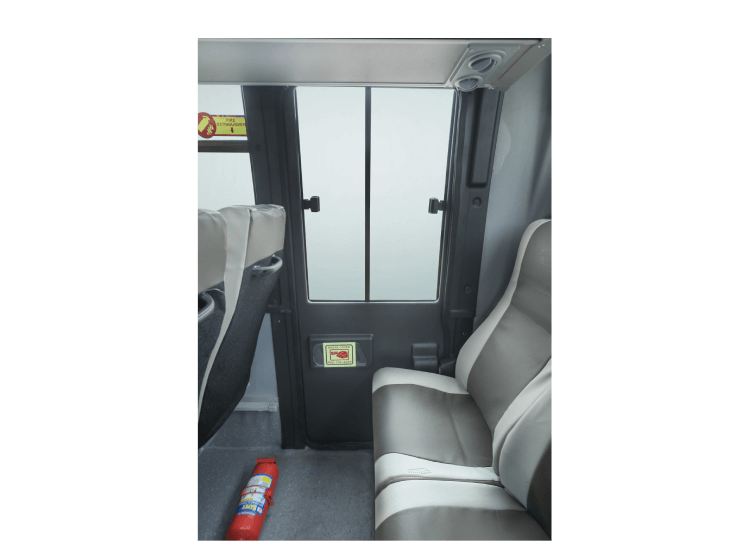

- Interior

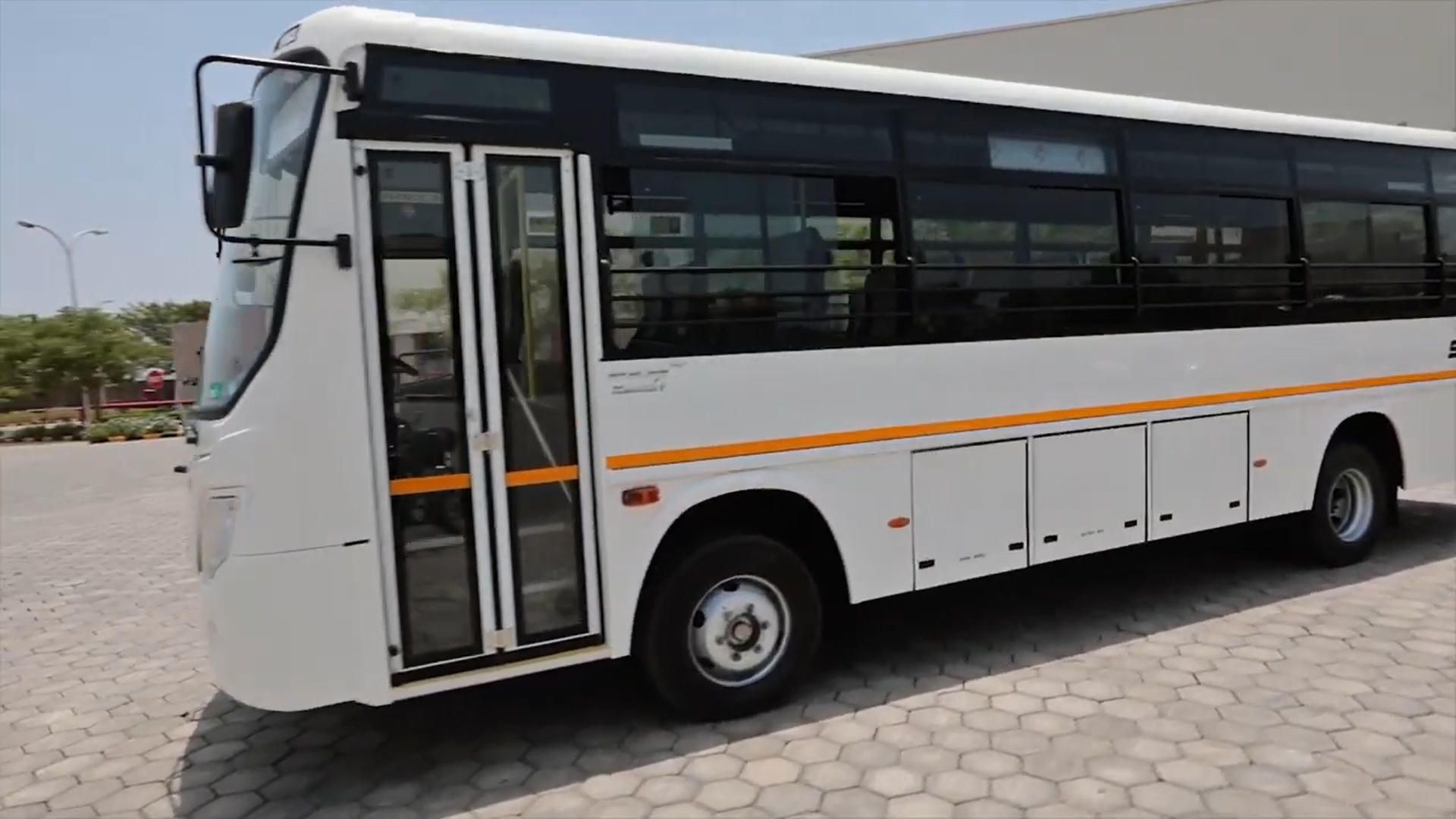

- Video
- 360o
Eicher Skyline 2075 H AC
The all new Skyline is completely revamped with distinctively premium looks, 2350 mm wide bus body, silent & grease free parabolic suspension and radial tubeless tyres. Skyline staff buses offer the right blend of safety, comfort and performance to ensure that every journey of the passengers is safe and comfortable. BSVI Skyline is driven by state-of-the-art E474 engine which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability.
Seating Capacity29
EngineE474
Power 105 kW
Torque400 Nm
Fuel TypeDiesel
- Specification
- Technology
| SPECIFICATIONS | 2075 H AC |
|---|---|
| Seating Capacity | 32+D HHR 2X2 |
| 28+D PB 2X2 | |
| Wheelbase | 4320 mm |
| Overall Length | 8112 mm |
| Overall Width | 2350 mm |
| Overall Height | 2975 mm |
| Front Overhang | 1200 mm |
| Rear Overhang | 2592 mm |
| Turning Circle Diameter | 16 m |
| Engine Make | E474 |
| Displacement (cc) | 2960 |
| Power | 105 kW @ 3200 Rpm |
| Torque | 400Nm @ 1200- 2500 Rpm |
| Clutch | 310 mm |
| Transmission Make | ET35S5 |
| Transmission Type | Synchromesh (5 Speed + 1 Reverse) |
| GVW | 8.4 t |
| Chassis Type | Domex 650 |
| Chassis dimension | 200x65x5 mm |
| Fuel Tank Capacity | 100 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 235/75 R17.5- 14PR (Radial Tubeless ) |
| Suspension Front | Parabolic with Anti-Roll Bar |
| Suspension Rear | Parabolic |
| Steering | Power Steering |
| Battery | 12V 130Ah |
| Alternator | 2 x 110A |
| Floor Type | Silicon embedded vinyl |
| DEF Tank Capacity | 19 litres |
