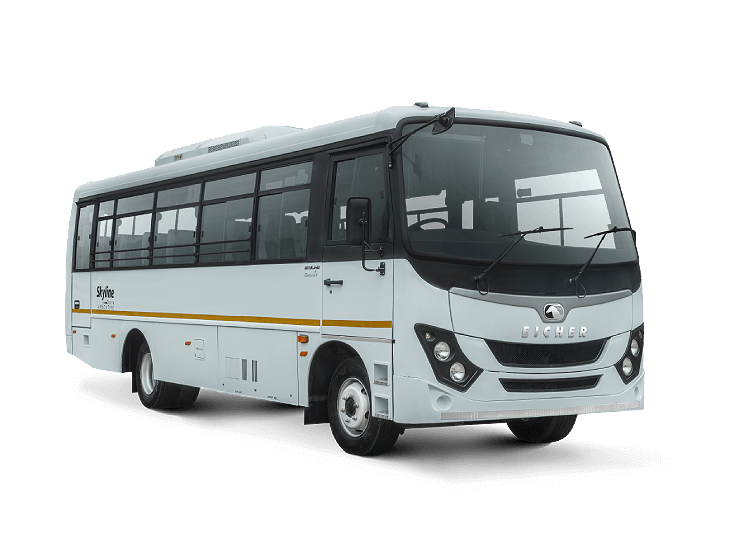

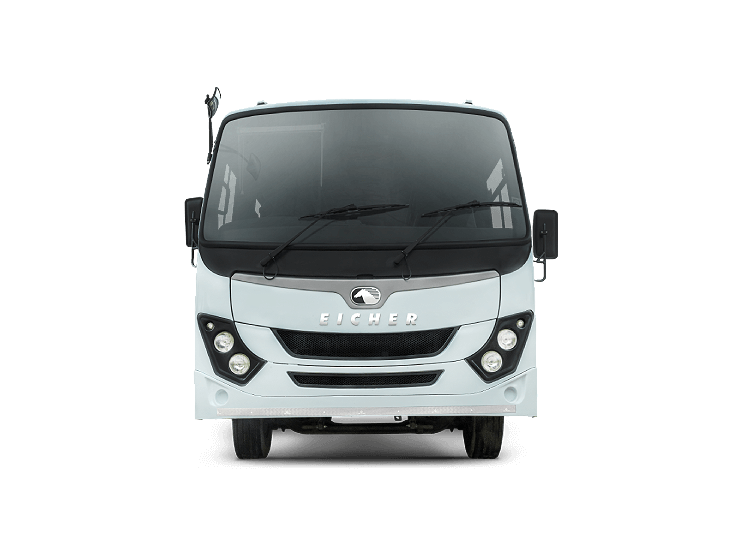

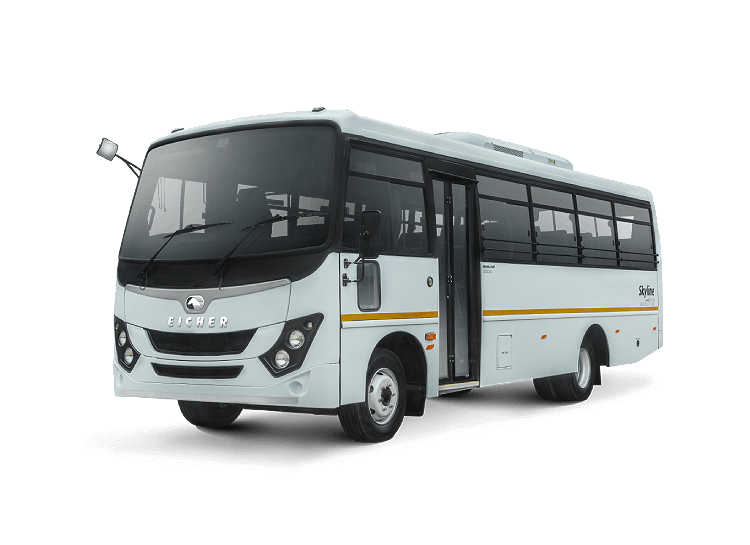

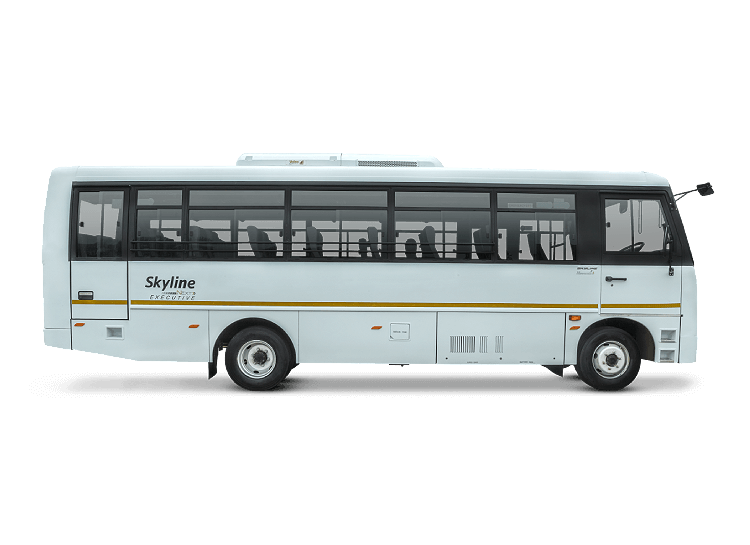

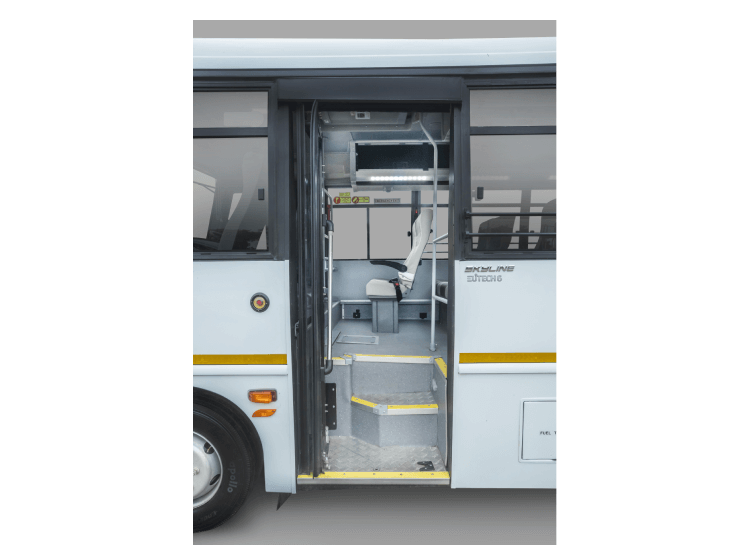

Eicher Skyline 2090 L AC
The all new Skyline is completely revamped with distinctively premium looks, 2350 mm wide bus body, silent & grease free parabolic suspension and radial tubeless tyres. Skyline staff buses offer the right blend of safety, comfort and performance to ensure that every journey of the passengers is safe and comfortable. BSVI Skyline is driven by state-of-the-art E474 engine which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability.
Seating Capacity41,37
EngineE474
Power 105 kW
Torque400 Nm
Fuel TypeDiesel
- Specification
- Technology
| SPECIFICATIONS | 2090 L AC |
|---|---|
| Seating Capacity | 40+D HHR 2X2 ,35+1+D(AC) PB 2X2 |
| Wheelbase | 5240 mm |
| Overall Length | 9584 mm |
| Overall Width | 2350 mm |
| Overall Height | 3070 mm |
| Front Overhang | 1200 mm |
| Rear Overhang | 3144 mm |
| Turning Circle Diameter | 19.4 m |
| Engine Make | E474 |
| Displacement (cc) | 2960 |
| Power | 105 kW @ 3200 Rpm |
| Torque | 400Nm @ 1200- 2500 Rpm |
| Clutch | 310 mm |
| Transmission Make | ET35S6 |
| Transmission Type | Synchromesh (6 Speed + 1 Reverse) |
| GVW | 9.9 t |
| Chassis Type | Domex 650 |
| Chassis dimension | 200x65x5 mm |
| Fuel Tank Capacity | 160 litres |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 235/75 R17.5- 14PR (Radial Tubeless ) |
| Suspension Front | Parabolic with Anti-Roll Bar |
| Suspension Rear | Parabolic |
| Steering | Power Steering |
| Battery | 12V 130Ah |
| Alternator | 2 x 110A |
| Floor Type | Silicon embedded vinyl |
| DEF Tank Capacity | 19 litres |
