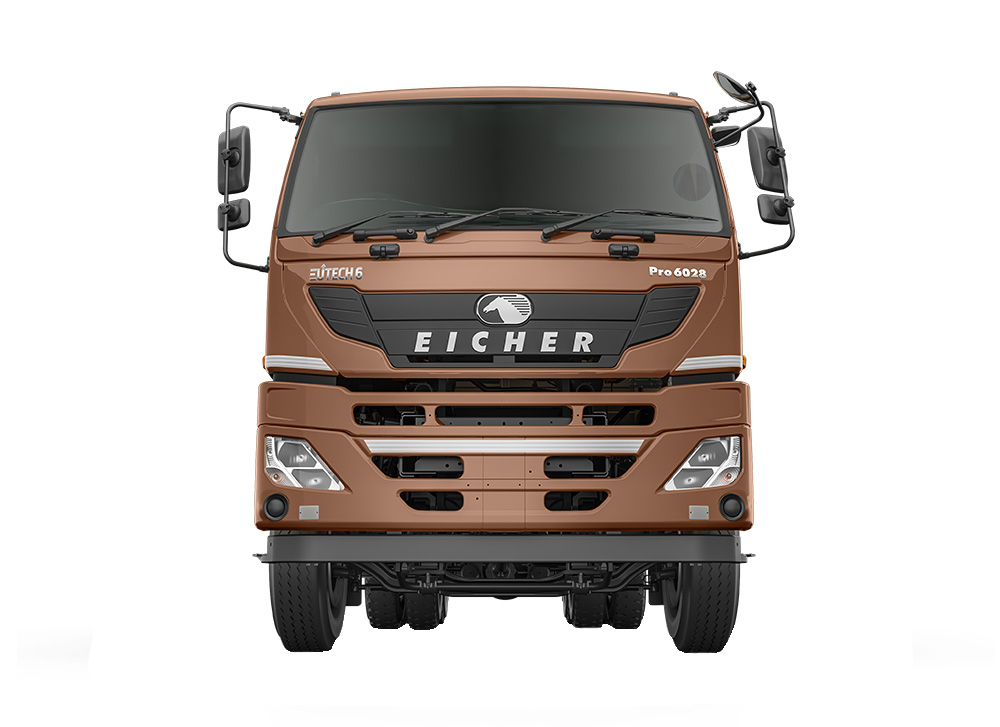

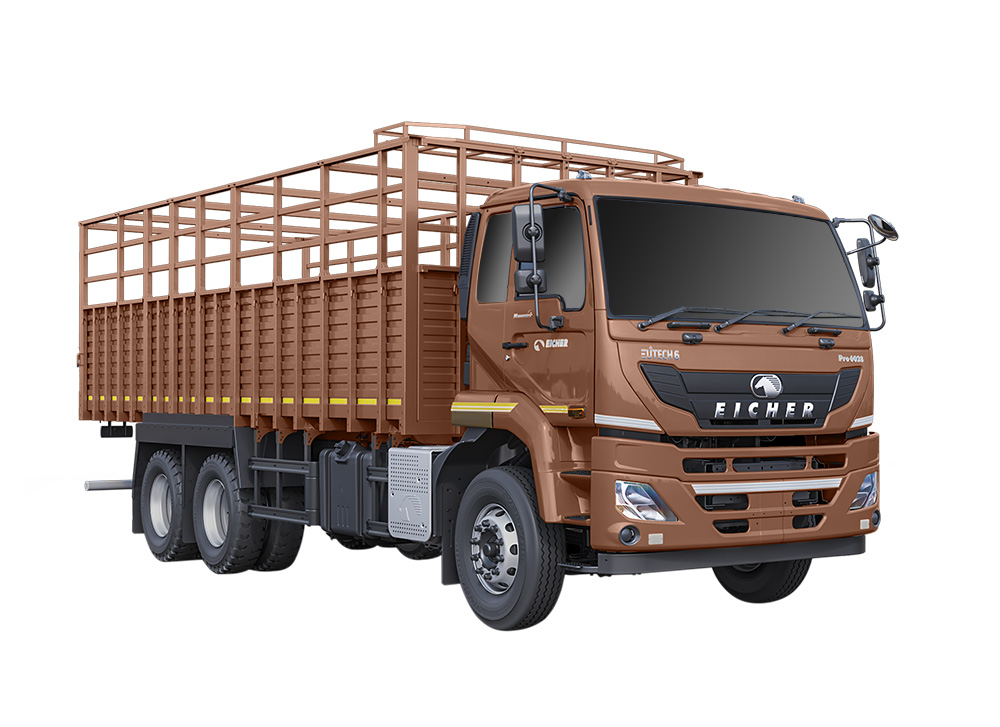

Eicher Pro 6028
Leverage technology to your advantage with Eicher Pro 6028, a 10 tyre 28-ton rigid haulage truck powered with the proven VEDX5 engine. Delivering the finest power and torque combination in the segment, it ensures best-in-class fuel efficiency, maximum payload and optimised performance.
GVW28 t
Engine5.1 litres
Power 154.5 kW
Torque825 Nm
Transmission6 Speed
CabinHVAC*
- Specification
- Technology
- Applications
| SPECIFICATIONS | Pro 6028 | ||||
|---|---|---|---|---|---|
| GVW | 28000 kg | ||||
| Engine Model | VEDX5 - BSVI | ||||
| Max Power | 154.5 kW@ 2200 Rpm | ||||
| Max Torque | 825 Nm @ 1200-1600 Rpm | ||||
| Clutch Diameter | 395 mm | ||||
| Gearbox | ET90S6, Manual | ||||
| Rear Axle | Heavy Duty fully floating single reduction, 458 mm drive head | ||||
| FDR | 4.8 | ||||
| Chassis Dimensions | 300X76X 6 mm | ||||
| Brakes | Dual circuit full air ‘S’ Cam with ABS | ||||
| Front Suspension | Parabolic | ||||
| Rear Suspension | Semi elliptic Slipper | ||||
| Cabin | Sleeper Cabin | ||||
| Steering | Tilt and telescopic Power Steering | ||||
| Tyres | Front: 295/90R20 | ||||
| Rear : 10R20 | |||||
| Fuel Tank (L) | 350 | ||||
| DEF Tank | 50 litres | ||||
| Battery (V) | 24 | ||||
| Gradeability (%) | 21 | ||||
| Wheelbase | 5350 mm | 6800 mm | |||
| Variants | CBC | CWC | HSD | CBC | CWC |
| Loadbody Span | 7317 mm | 7745 mm | 7336 mm | 9422 mm | 9850 mm |
| Applications | Market load, Tankers, LPG cylinders, e-commerce, Parcel & logistics, FMCG, White goods | ||||
