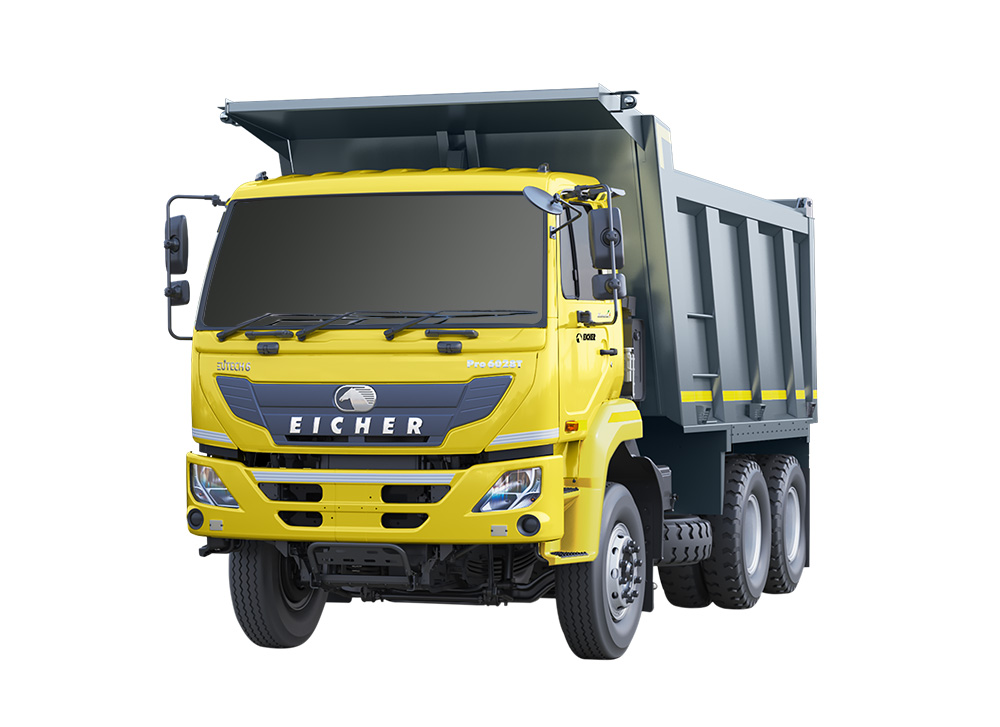

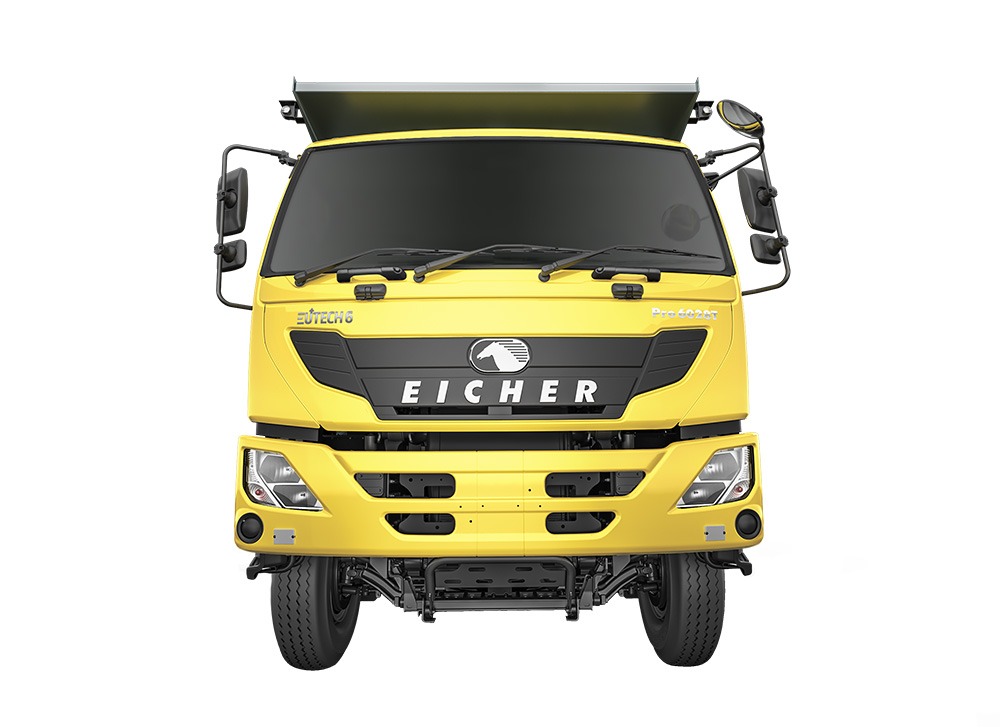

This 28-ton GVW tipper boasts of an engine power of 260HP and a maximum torque output of 1000 Nm. Adhering to our philosophy of ‘Do More', this Tipper offers unmatched performance, higher reliability, and superior productivity.
SPECIFICATIONS | Pro 6028T |
---|---|
GVW | 28000 kg |
Engine Model | VEDX8, BS-VI |
Max Power | 191 kW @ 2200 Rpm |
Max Torque | 1000Nm@ 1000-1700 Rpm |
Clutch Type & Diameter | 430 mm, Pull Type, Single Dry Plate |
Gearbox | ET 140S9, 9 speed |
Front Axle | Forged Reverse Elliot Type |
Rear Axle | VECV 440DH Single Reduction Tandem Fully Floating Banjo |
Rear Axle Ratio | 5.29 |
Differential lock | Inter-axle lock |

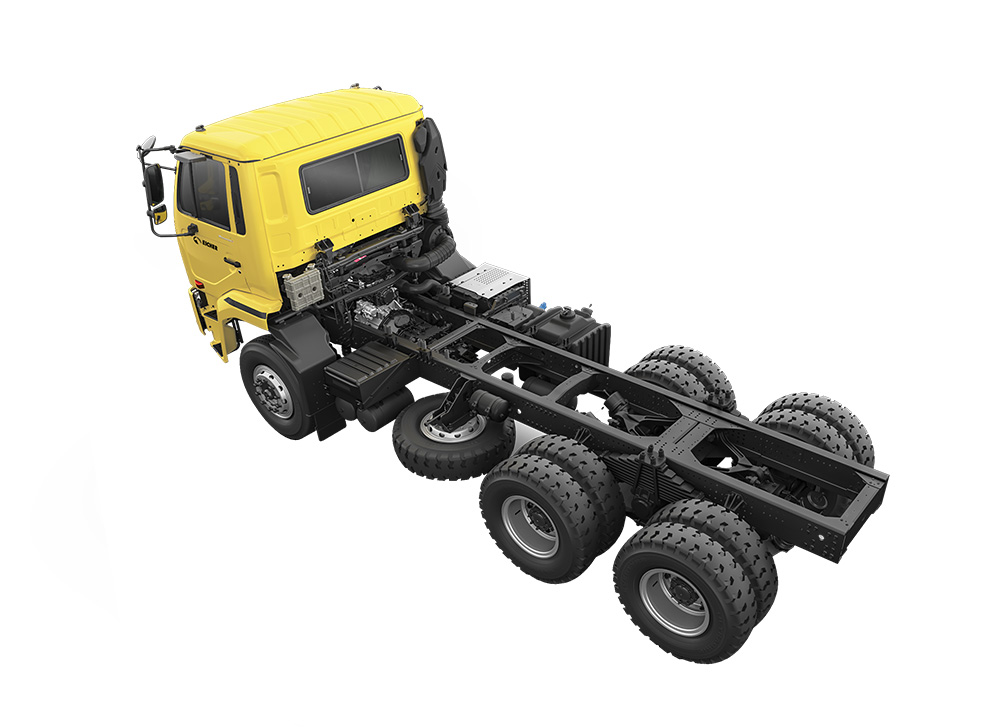

Chassis dimension | 300 x 90 x 8 mm with 5 Full length inner liner |
Front suspension | Parabolic |
Rear suspension | Bogie |
Service brake | S-Cam Dual line with ABS |
Parking brake | Pnuematically operated hand control valve |
Wheel Rims | 7.5 x 20 Nylon / Mining 8.0 x 20 Radial |
Tyres | 11x20 (Nylon, Mining, Radial) |
Steering Type | Tilt and Telescopic Power steering |
Cabin | HVAC Day Cabin |
Fuel Tank | 220 litres |
DEF Tank | 33 litres |
Electricals & Battery | 24V; 120AH |
Wheel base | 4000 / 4585 mm |
Minimum Ground Clearance | 255 mm |
Turning Circle Diameter | 14.3 m 16.3 m |
Gradeability | 52% - Crawler Gear |
Body Variants | 14 Cum (Rock) 16 Cum (Box) 20 Cum (Box) |
Standard Features | Eicher Live, Fuel Coaching, Cruise Control, MBooster+ |
