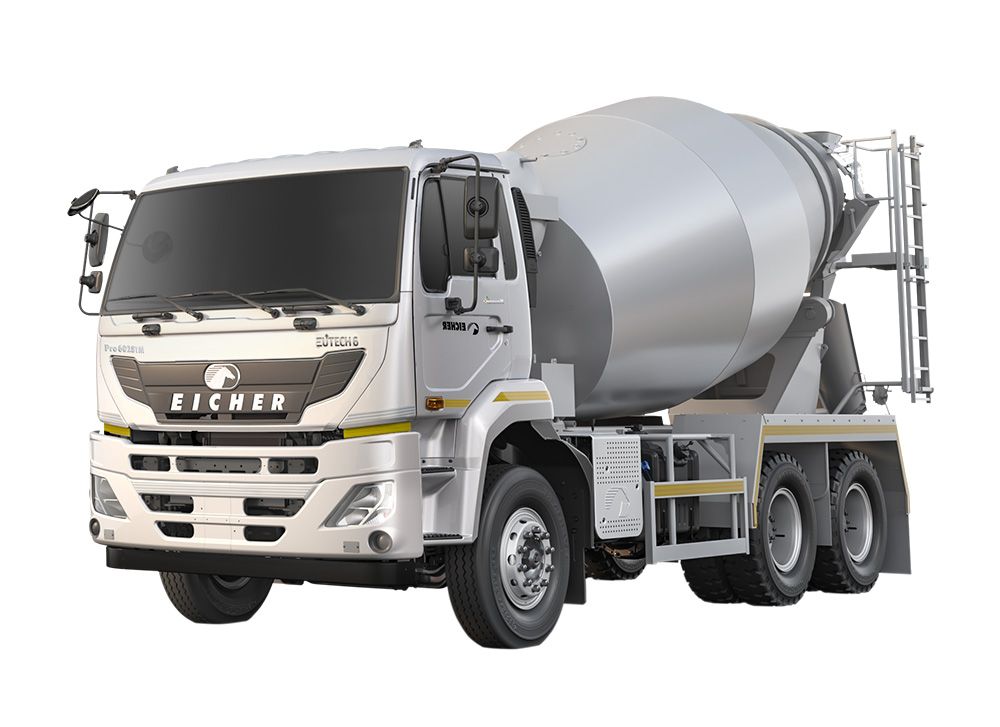

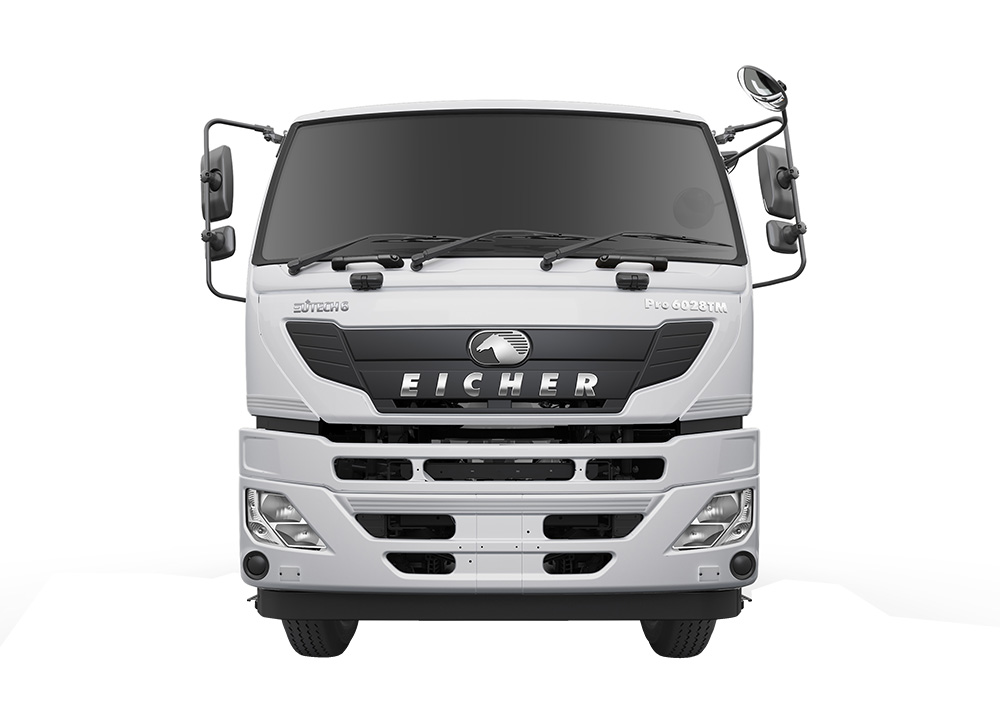

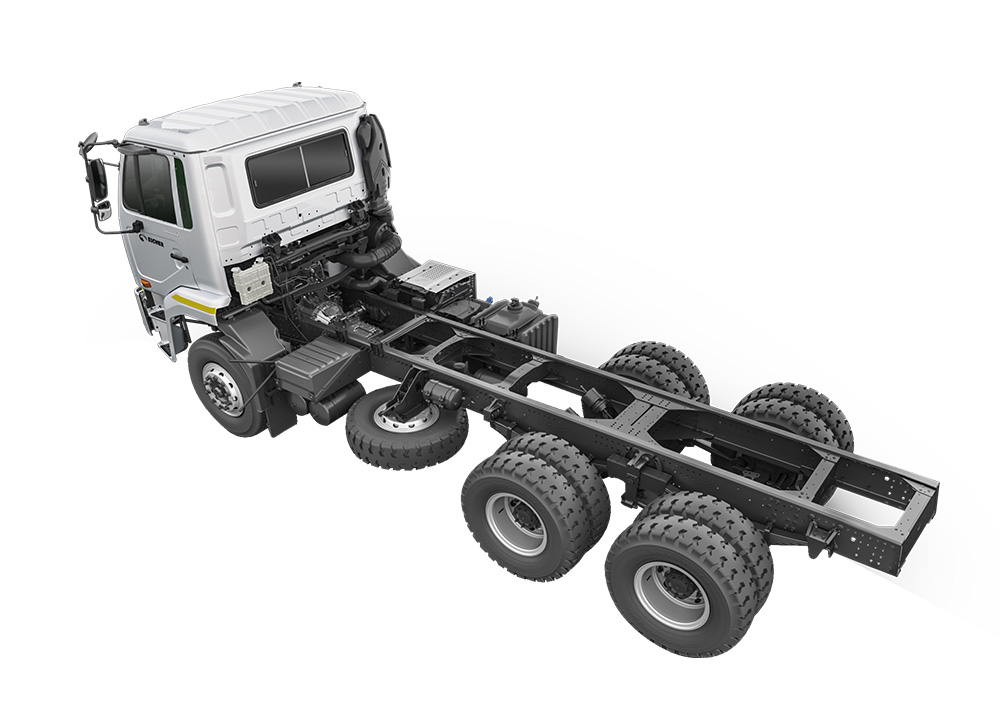

Eicher Pro 6028TM
Built on our philosophy of 'Do More', the Eicher Pro 6028TM delivers unparalleled productivity and superior uptime. Its body-friendly chassis and a powerful engine PTO maximises payload. It also boasts of lower TCD for efficient operations and utilises advanced telematics, to manage your business better.
Power 154.5 kW
Torque825 Nm
Drum DriveEPTO/SLVE
TCD14.2 m/ 15.1 m
Drum Size6, 7, 8
CabinBlower
- Specification
- Technology
- Applications
| Model | Eicher Pro 6028TM | |
|---|---|---|
| GVW | 28000 kg | |
| Engine Model | VEDX5, BS-VI | |
| Max Power | 154.5 KW @ 2200 | |
| Max Torque | 825 Nm @ 1200-1600 rpm | |
| Clutch Type & Diameter | 395mm, Push Type, Single Dry Plate | |
| Gearbox | ET90S6 - 6F+1R | |
| Front Axle | Forged I-beam | |
| Reverse Elliot type axle with stabilizer bar | ||
| Rear Axle | Tandem Axle | |
| Rear Axle Ratio | Bogie Suspension - 5.83 | |
| Bell Crank Suspension - 6.16 | ||
| Differential lock | Inter-axle | |
| Chassis dimension | Bogie Suspension - 300x76x7 mm | |
| Bell Crank Suspension - 285X76X7mm | ||
| Front suspension | Parabolic | |
| Service brake | S-Cam Dual line with ABS | |
| Parking brake | Pneumatically operated hand control valve | |
| Wheel Rims | 7.5x20 | |
| Tyres | 295/95D20 | |
| Steering Type | Tilt and Telescopic Power steering | |
| Cabin | Day Cabin | |
| Fuel Tank | 220 litres | |
| DEF Tank | 33 litres | |
| Electricals & Battery | 24V; 120AH | |
| Rear Suspension | Bell Crank | Bogie |
| Wheelbase (WB) | 4000 mm | 4285 mm |
| Slave Engine Drive / Drum Size (cum) | 7 | 7,8 |
| EPTO Drive / Drum Size (cum) | 7,8 | 7,8 |
| Turning Circle Diameter | 14.2 m | 15.2 m |
| Gradeability (%) | 25 in 1st Gear | |
| Standard Features | Eicher Live, Fuel Coaching, Cruise Control, M Booster+ | |
