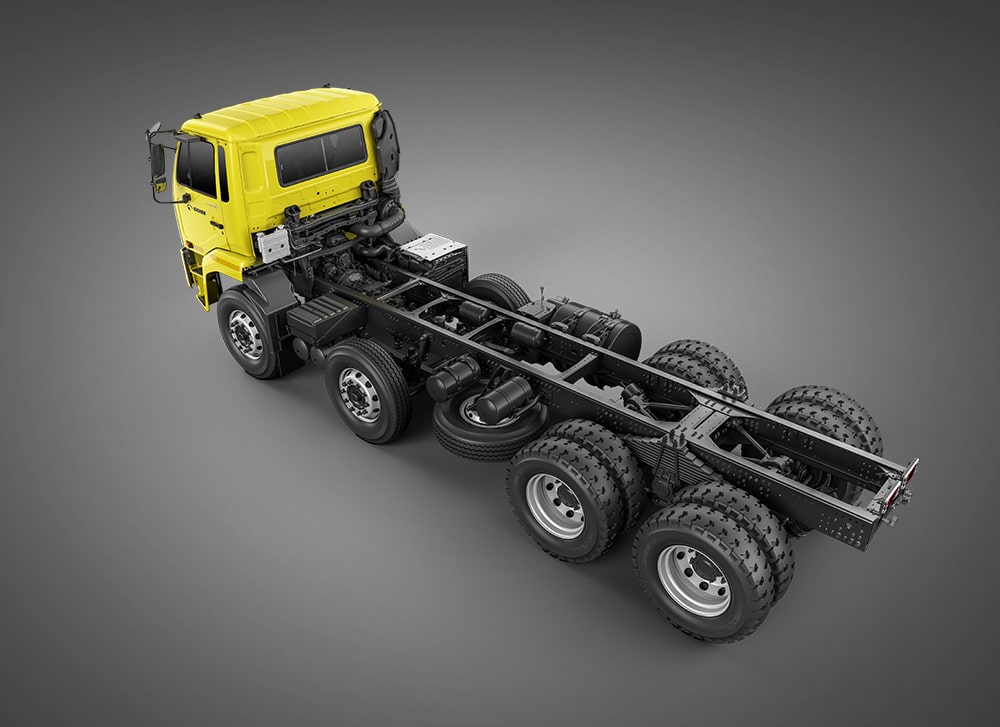

  • Exterior

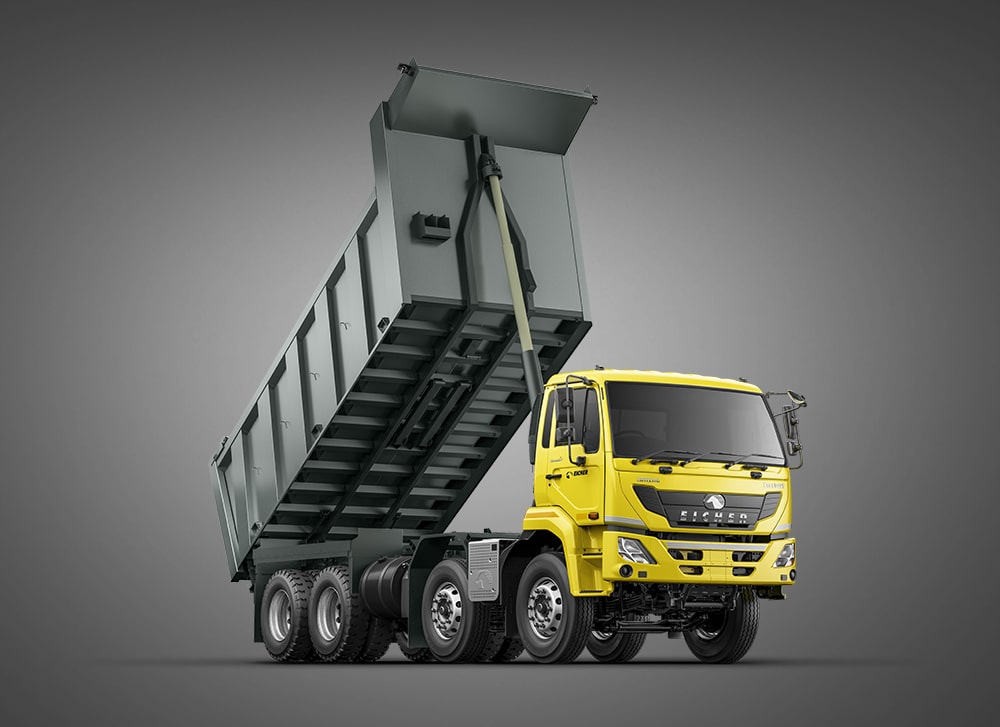

Eicher Pro 6035T HRT

The new Eicher Pro 6035T (HRT) is the next generation 35tonne GVW Tipper. Built on philosophy to DO MORE. The tipper is designed to deliver superior performance, higher productivity, uptime and greater revenues with increased power & torque, multi options to suit various business need and applications now comes with Hub Reduction Tandem Axle (HRT).

Download BrochureGet PriceFind Dealer
  • GVW
    GVW35T
  • Engine
    EngineVEDX8, 7.7L
  • Power
    Power 194 kW
  • Torque
    Torque1000 Nm
  • Transmission
    TransmissionET1409S
  • Variants
    VariantsCBC, 20BB, 23BB
  • Specification
  • Technology
  • Applications
SPECIFICATIONS Pro 6035T HRT
Model Pro 6035T HRT BSVI
Engine Model VEDX8, 7.7L
Max. Power 194 kW @ 2200rpm
Max. Torque 1000Nm @ 1100-1700rpm
Clutch Diameter(mm) 430
Gearbox ET1409S
Front Axle Forged Reverse Elliot Type with Anti Roll Bar
Rear Axle Heavy-Duty Hub Reduction Tandem Axle with Anti Roll Bar
Chassis Dimensions 300x90x8mm, with 5mm full length inner liner
Service Brake S-cam Dual line with ABS
Parking Brake Pneumatically operated hand control valve
Front Suspension Parabolic
Rear Suspension Bogie
Cabin Type Day cabin with HVAC & Air suspended Driver Seat
Steering Tilt and Telescopic Power Steering
Tires 11x20 (Nylon, Mining, Radial)
Fuel Tank (lts.) 315
DEF Tank (lts.) 50
Battery 24V:120Ah
Wheelbase (mm) 5285
Turning Circle Diameter (m) 18.6
Gradeability (%) 41%
GC (mm) 290
Body Options CBC, 20 & 23 BB

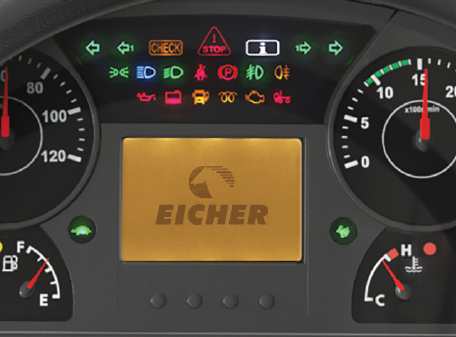

Standard Features My Eicher, Fuel Coaching, Cruise Control, MBooster+, Onboard Diagnostics
