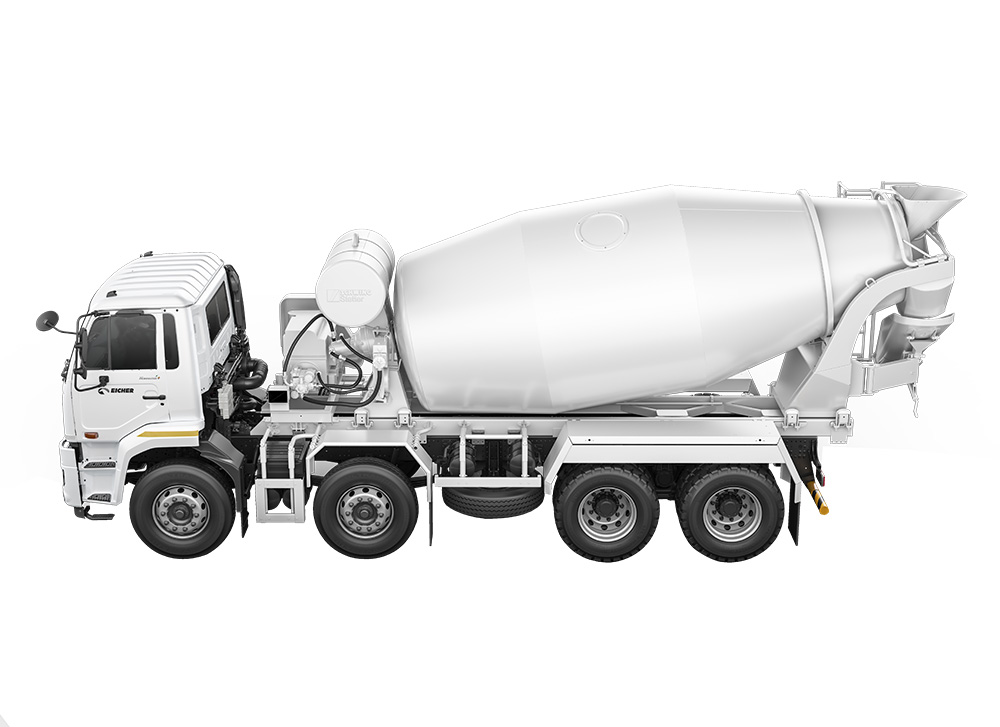

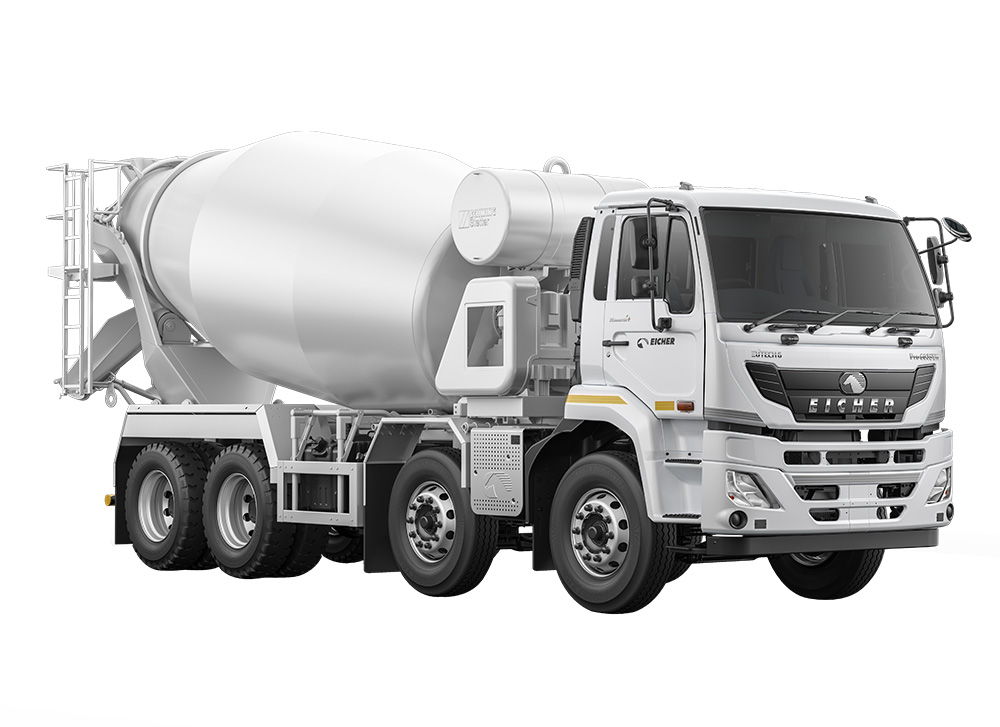

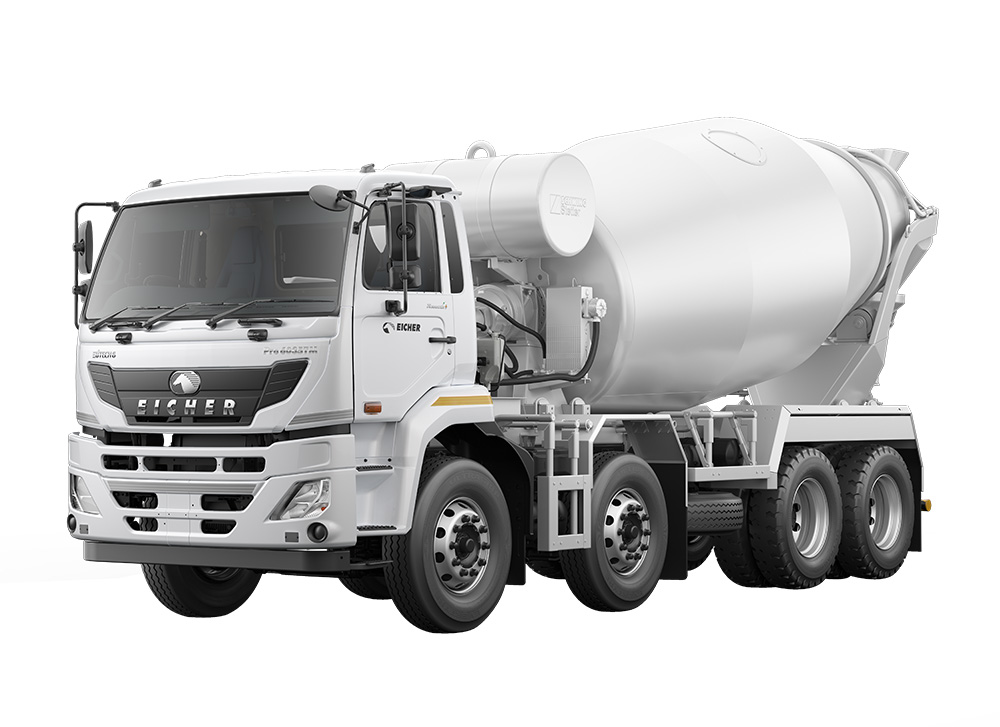

Eicher Pro 6035TM
The Eicher Pro 6035TM is a 6-cylinder 8x4 Transit Mixer, which offers greater productivity and superior uptime. With increased payload capacity, a body-friendly chassis design, low-maintenance suspension, it allows to reduce the Total Cost of Ownership (TCO).
Power 194 kW
Torque1000 Nm
Drum DriveSlave
TCD18.6
Drum Size9, 10 *Cum
CabinHVAC
- Specification
- Technology
- Applications
| Model | Eicher Pro 6035TM | |||||
|---|---|---|---|---|---|---|
| GVW | 35000 kg | |||||
| Engine | VEDX8 BS-VI | |||||
| Max Power | 194 kW @ 2200 Rpm | |||||
| Max Torque | 1000Nm@1000-1700 Rpm | |||||
| Clutch | 430 mm, pull type, Single dry plate | |||||
| Gearbox | ET140 S9, 8F+1C+1R | |||||
| Front Axle | Forged reverse elliot type | |||||
| Rear Axle | Single reduction tandem axle with interaxle lock & anti-roll bar | |||||
| Rear Axle Ratio | 5.29 | |||||
| Differential lock | Inter-axle | |||||
| Chassis dimension | 300x90x7 mm with 5mm full length inner liner | |||||
| Service brake | S-Cam dual line with ABS | |||||
| Parking brake | Pneumatically operated hand control valve | |||||
| Front suspension | Parabolic | |||||
| Rear suspension | Bogie Suspension | |||||
| Cabin | HVAC day cabin | |||||
| Steering | Tilt & telescopic power steering | |||||
| Tyres | 11x20 (Nylon) | |||||
| Wheel rims & tyres | 7.5x20 | |||||
| Fuel Tank | 220 litres | |||||
| DEF Tank | 33 litres | |||||
| Battery | 24V; 120AH | |||||
| Turning circle diameter | 18.6 m | |||||
| Grade ability (%) | 39% | |||||
| Ground Clearance | 252 mm | |||||
| Wheelbase | 5285 mm | |||||
| Drum Size | 9 & 10Cum TM Drum | |||||
| Drive | Slave Engine | |||||
| Standard Features | My Eicher, Fuel Coaching, Cruise Control, MBooster+ | |||||
