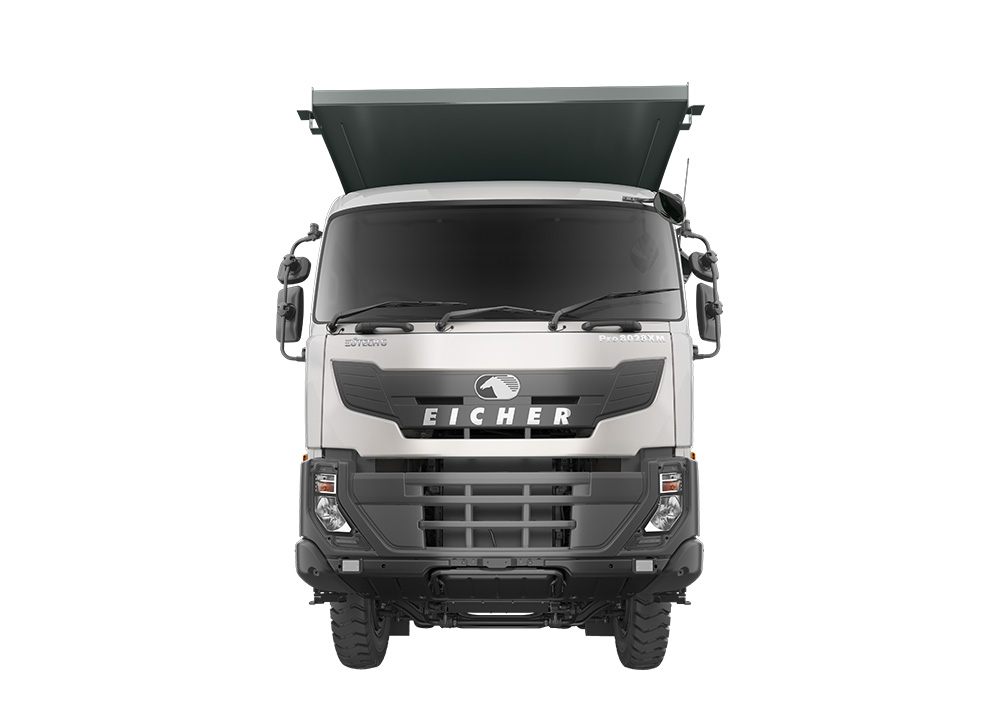

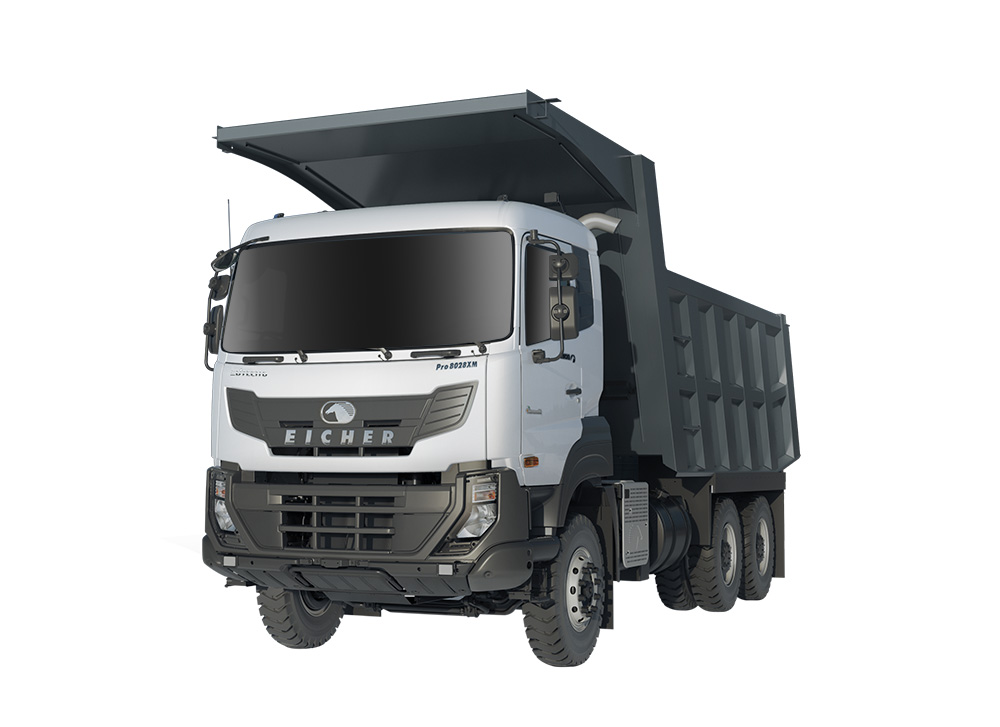

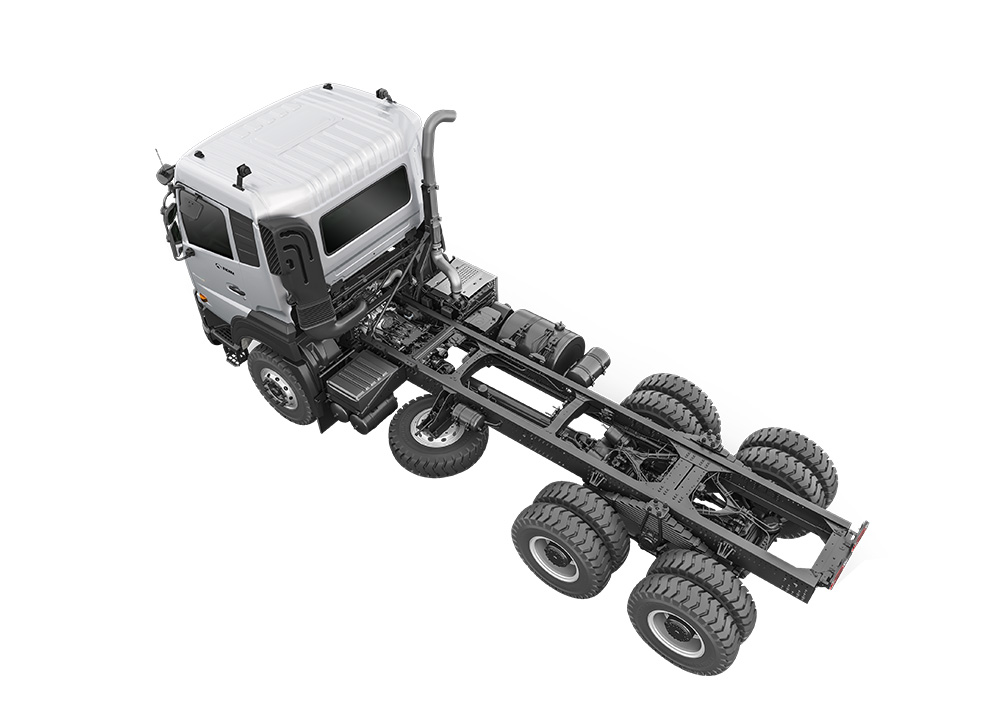

Eicher Pro 8028XM
Meet the new standard in mining efficiency with the Eicher Pro 8028XM, a 28-ton GVW Mining Tipper. It has been designed to excel in the most extreme conditions. Powered by the VEDX8 engine, it boasts of an impressive 350HP while the robust aggregates push the limits of productivity and reliability.
Power 258 kW
Torque1350 Nm
Gradeability85%
TCD16.3 m
FDR6.37
StandardAC
| SPECIFICATIONS | Pro 8028XM |
|---|---|
| GVW | 28000 kg |
| Engine Model | VEDX8, BS-VI |
| Max Power | 258 kW @ 2200 Rpm |
| Max Torque | 1350Nm @ 1200-1600 Rpm |
| Clutch Type & Diameter (mm) | 430 mm, Pull Type, Single Dry Plate |
| Gearbox | ET140S9 - 1C + 8F + 1R |
| Front Axle | Heavy-duty forged I-beam Reverse Elliot type axle with stabilizer bar |
| Rear Axle | Heavy-duty axle with hub reduction and two stage differential lock |
| Rear Axle Ratio | 6.37 |
| Chassis dimension | 300x90x8 mm with 5mm Full length inner liner |
| Front suspension | Parabolic spring assembly |
| Rear suspension | Bogie |
| Service brake | S-Cam Dual line with ABS |
| Parking brake | Pnuematically operated hand control valve |
| Wheel Rims | 7.5x20 8.5x20 |
| Tyres | 11x20 Mining Lug 12x20 Mining Lug |
| Steering Type | Tilt and Telescopic Power steering |
| Cabin | AC Sleeper Cabin |
| Fuel Tank | 315 litres |
| DEF Tank | 50 litres |
| Electricals & Battery | 24V; 120AH |
| Wheelbase | 4585 mm |
| Minimum Ground Clearance | 289 mm(11x20 MT) 308 mm(12x20 MT) |
| Turning Circle Diameter | 16.3 m (11x20 MT) 18.5 m (12x20 MT) |
| Gradeability | 85% - Crawler Gear |
| Body Variants | 16 Cum (Rock) 20 Cum (Box) |
| Standard Features | Eicher Live, AC Sleeper Cabin, Fuel Coaching, Cruise Control, MBooster+, DGMS |
Fuel Coaching
Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy
MBooster+
MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency
Cruise Control
Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy
Eicher Live
An innovative and intelligent telematics system, Eicher Live facilitates in keeping a track of fuel consumption, maintenance needs, and monitoring the movement of trucks.
