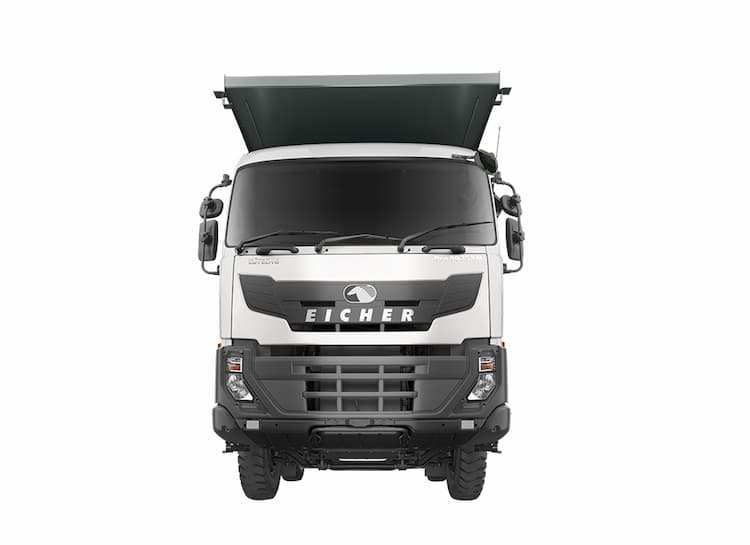

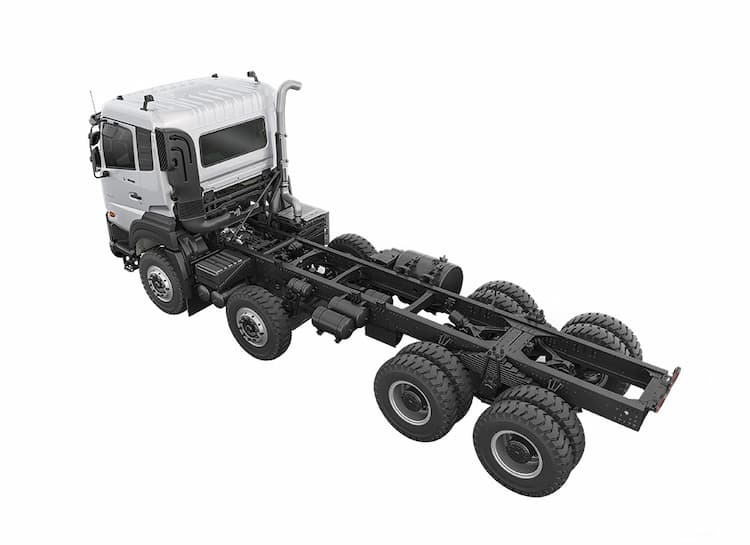

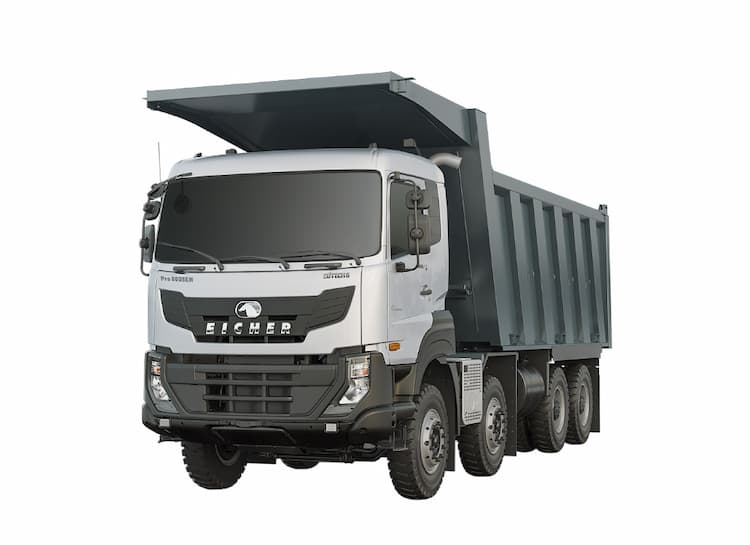

Eicher Pro 8035XM AMT
The new Eicher Pro 8035XM AMT is the next generation 35 Tonne GVW Tipper and includes Segment first ARAI Approved 19.5 U- Shaped Rock Body. The tippers are designed to deliver superior performance, higher productivity, uptime and greater revenues with increased power & Torque, and multi options to suit various business needs and applications.
GVW35T
EngineVEDX8, 7.7L
Power 261 kW
Torque1350 Nm
TransmissionET140S9 9S AMT
VariantsCBC, 18RB, 19RB, 19.5RB, 23BB, 26 Coal Body
| SPECIFICATIONS | Pro 8035XM AMT |
|---|---|
| Engine Model | VEDX8 |
| Max. Power | 261 kW @ 2200 rpm |
| Max. Torque | 1350Nm @ 1200-1600 rpm |
| Clutch Diameter(mm) | 430 |
| Gearbox | 9S AMT (E-Smart Shift) |
| Front Axle | Reverse elliot type |
| Rear Axle | Hub reduction with full differential lock and anti-roll bar |
| Chassis Dimensions | 300x90x8, with 5mm full length inner liner |
| Service Brake | S-Cam dual line with ABS |
| Parking Brake | Pnuematically operated hand control valve |
| Front Suspension | Parabolic |
| Rear Suspension | Bogie |

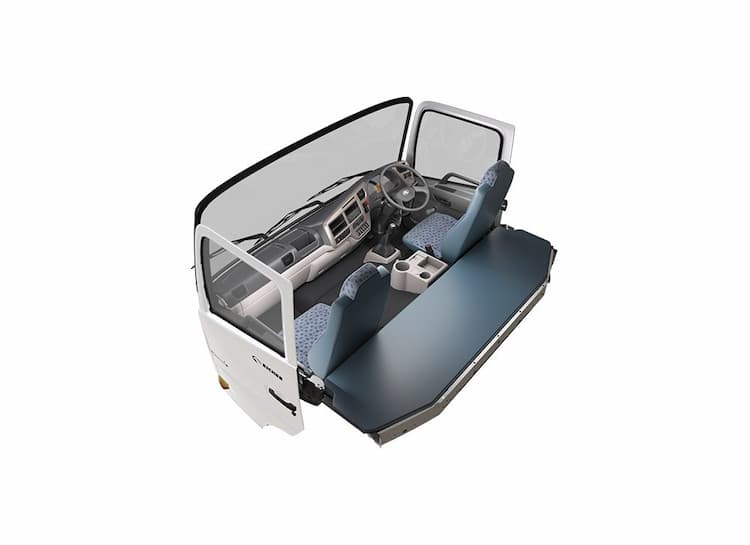

| Cabin Type | AC Sleeper Cabin with Air Suspended driver Seat |
| Steering | Tilt and telescopic power steering |
| Tires | 12x20Mining Lug |
| Fuel Tank (lts.) | 315 |
| DEF Tank (lts.) | 50 |
| Battery | 24V:120Ah |
| Wheelbase (mm) | 5285 |
| Turning Circle Diameter (m) | 21.1 |
| Gradeability (%) | 75% |
| GC (mm) | 308 |
| Body Options | CBC, 18RB, 19RB, 19.5RB, 23BB, 26 Coal Body |
| Standard Features | My Eicher, Fuel Coaching, Cruise Control, MBooster+, Onboard Diagnostics |

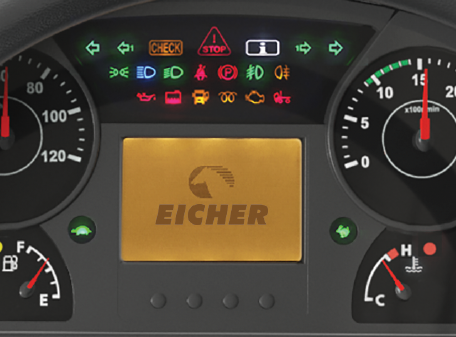

Fuel Coaching
Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy
MBooster+
MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency
Cruise Control
Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy
My Eicher
A first in industry digital platform, it integrates Fleet Owners and Fleet Managers with our Dealers and us. Users gain real-time access to crucial vehicle data, empowering them with insights to make informed decisions.
Aggregate
1.jpg&w=1920&q=75)
Stone Quarry

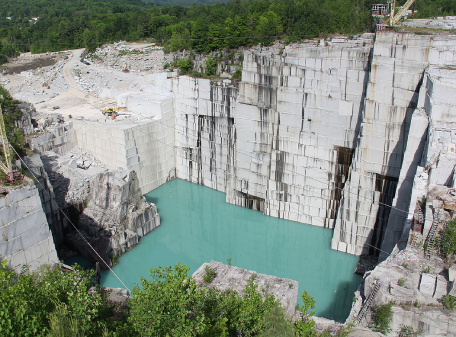

Granite
Coal
Limestone
Sand

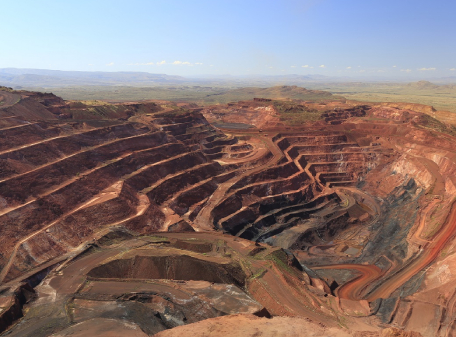

Iron ore
