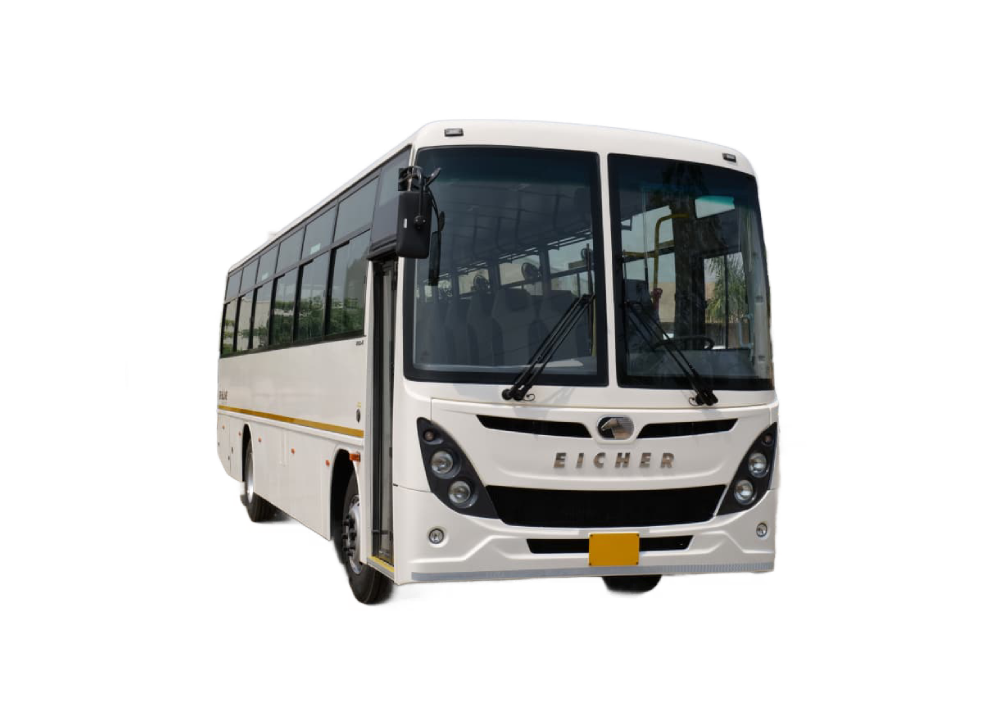

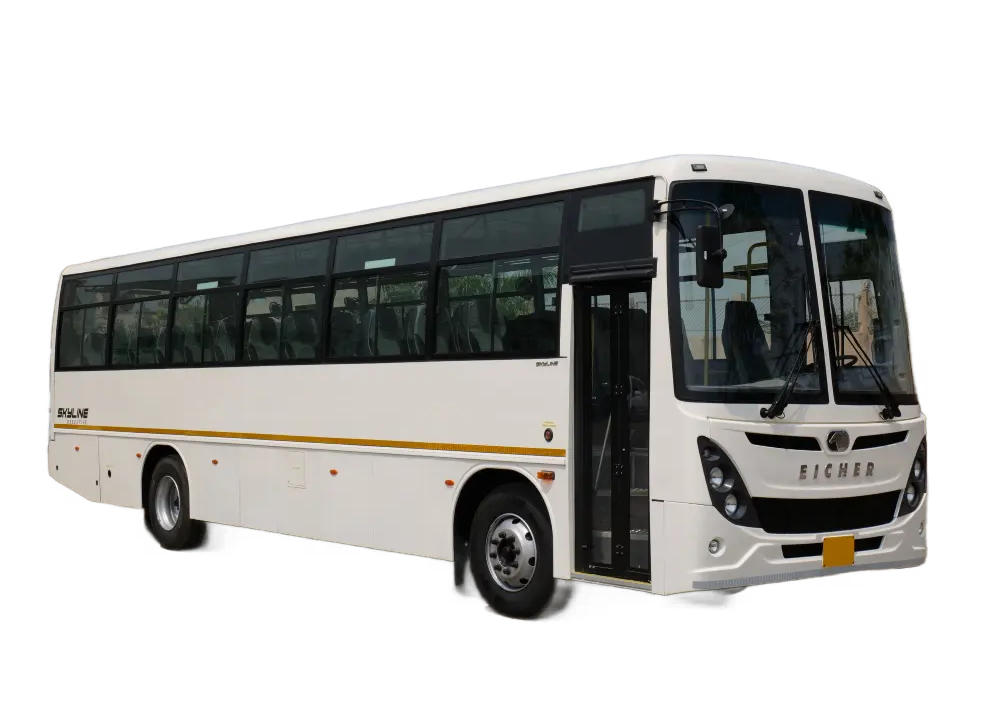

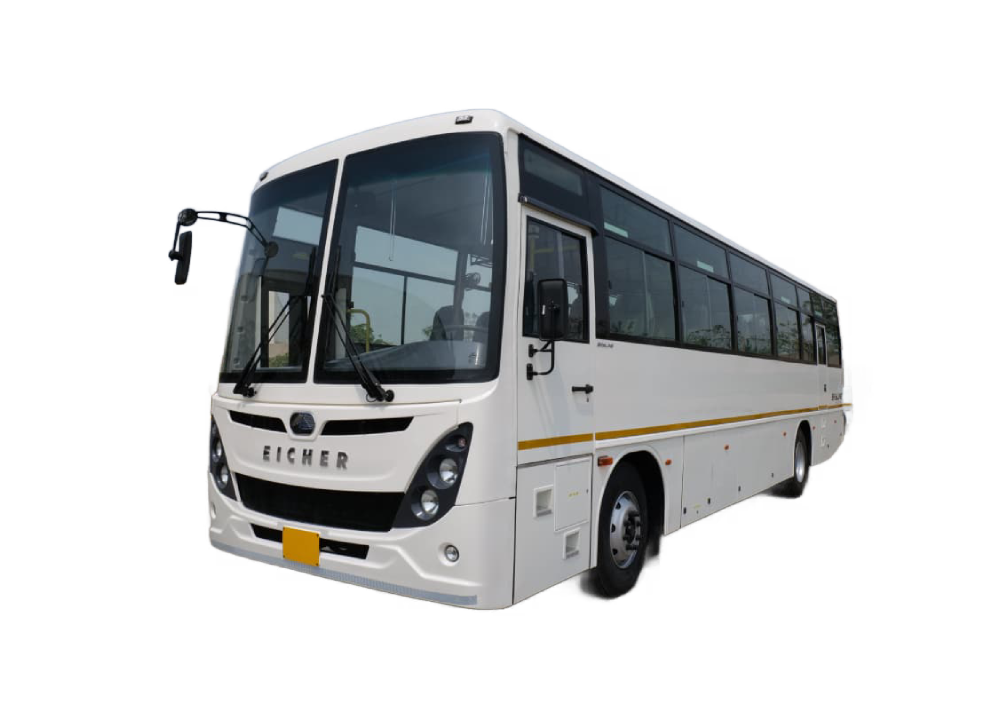

EicherSkyline 20.15 TWS
The all new Eicher Pro 20.15 is designed to maximze comfort and safety for the passengers and ensuring on-time arrival to the destination with its speed and acceleration. The bus comes with heavy-duty aggregates and high capacity battery and alternator making it the most reliable and durable partner for your business.
EngineCummins B 5.9 BSIII
Power180 HP
Torque670 Nm
Fuel Tank(02 No’s X 35 L)+ (01 No’s X 10 L)
Seating Capacity66+D
| SPECIFICATIONS | Skyline 20.15 TWS | |
|---|---|---|
| Windshield | 2 piece laminated | |
| Dimension | GVW(Kg) | 16200 |
| Overall Length (mm) | 11570 | |
| Wheelbase(mm) | 5840 | |
| Front overhang (mm) | 2225 | |
| Rear overhang (mm) | 3504 | |
| Engine | Type | Cummins B 5.9 BSIII |
| No.of Cylinder | 6 | |
| Emission | BSIII | |
| Max Power | 180hp @ 2400 RPM | |
| Max Torque | 670Nm (1200-1400RPM) | |
| Transmission | Clutch Size and Type | 380 Dia with Clutch Booster |
| Electrical | Battery | 24V System (12V X 2 nos.)-150 AH Rating |
| Braking System | Parking Brakes | Spring brake acting at rear wheel |
| Service Brakes | S-Camfully Air Brakes | |
| Tires and Wheels | Front & Spare and Rear | 11R22.5 (Tubeless tyre) |
| Others | Steering Type | Power Steering, Column Tilt and Telescopic with Column Cover |
| Frame | Ladder Frame | |
| Fuel Tank Capacity (L) | (02 No’s X 35 L)+ (01 No’s X 10 L) |
|
| Suspension System | Front | Semi elliptical |
| Rear | ||
| Performance | Gradability | 25% |
| Min TCD (m) | 23 | |
Better Driver Ergonomics
Superior Ride Comfort
Best In Class Safety
