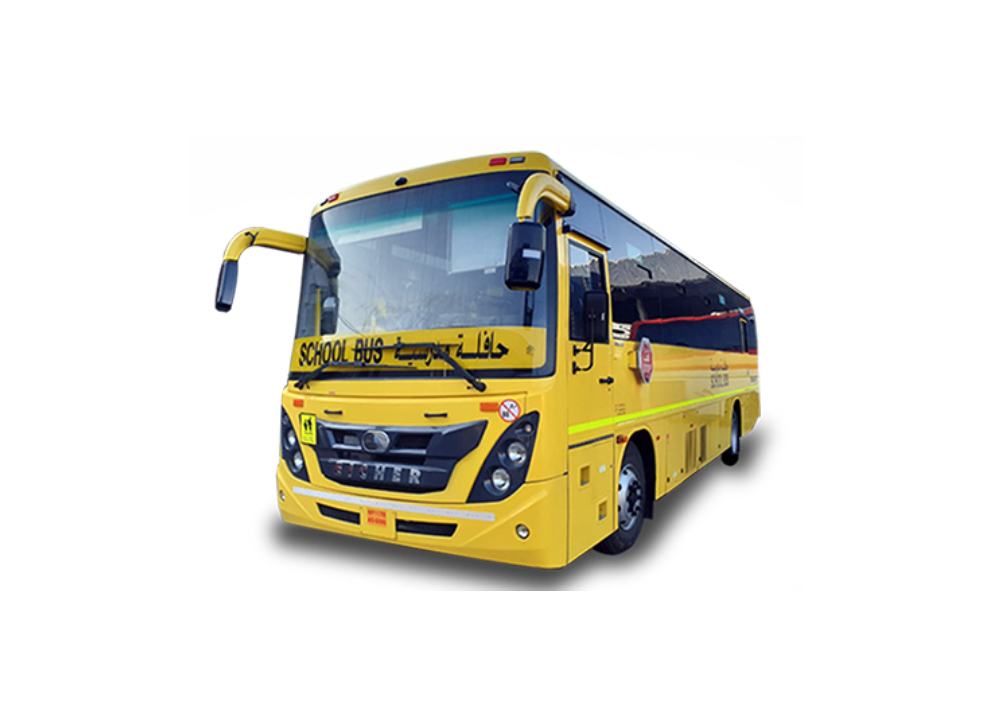

EicherSkyline 20.15 School Bus

A 48 seater bus is designed specifically for school children powered by supreme features

SPECIFICATIONS	20.15N LHD Staff E3
Wheelbase	5840 mm
Front Overhang	2240 mm
Rear Overhang	3520 mm
Overall length	11600 mm
Overall width	2590 mm
Turning Circle Diameter	23.2 m
GVW	16200 kg
Seating Capacity	47+D (2x2) HHR
Engine Make	E694 EGR EIII
Power	180 HP @2400 RPM
Torque (rpm)	670 Nm @1200-1400 rpm
Clutch Diameter(mm)	395 mm dia with clutch booster
Transmission	6 Forward and 1 Reverse
Brake	Dual circuit S Cam
Tyre	11R22.5 Tubeless Radial
Suspension	Front & rear weveller Suspension
Steering	Tilt and Telescopic, power steering
Battery (Ah)	24V(12*2), 150 Ah x 2
Alternator (Amp)	24V, 100 Amp
Fuel tank capacity	395 litres
