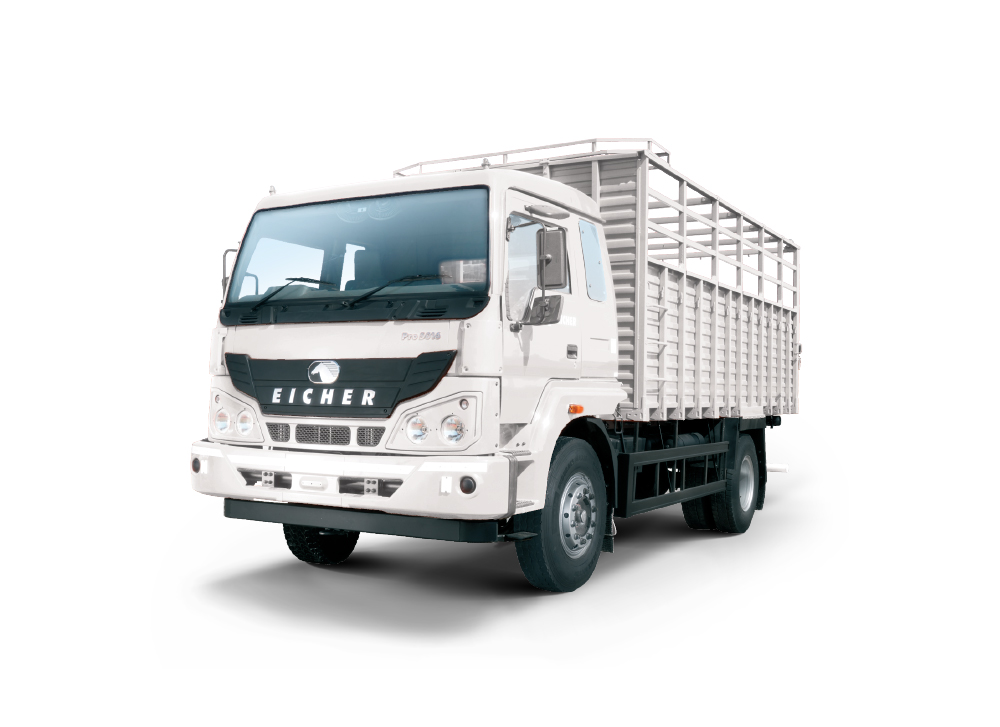

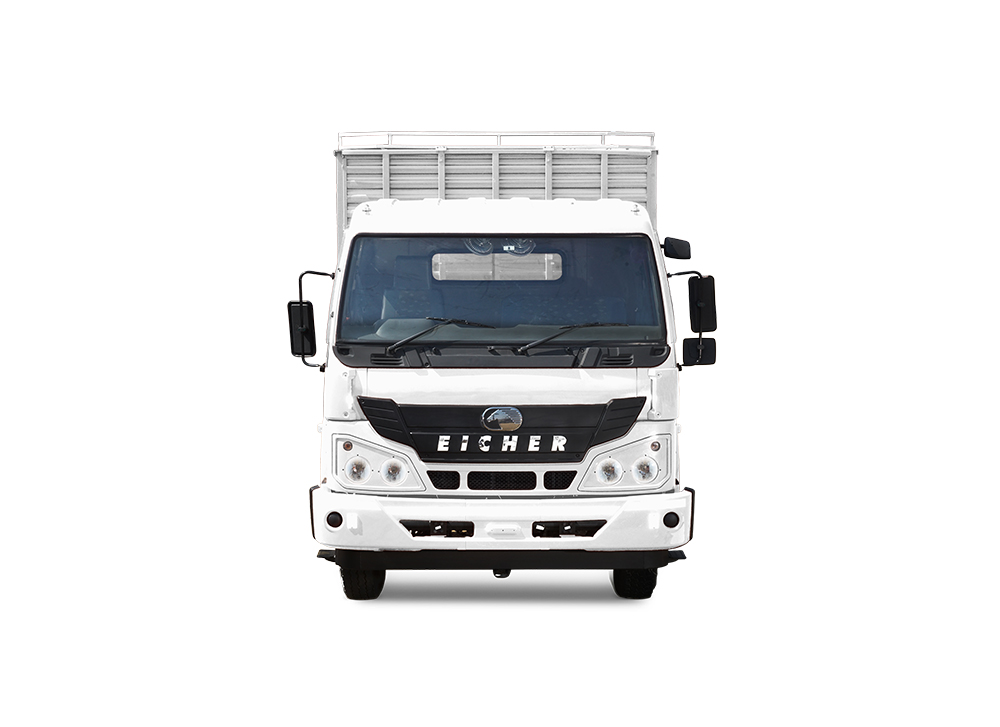

EicherPro 5016

Move ahead in your trucking business with Eicher Pro 5016 having best in class fuel efficiency backed by Volvo group's expertise, Eicher enchanced lifetime support solutions and a contemporary cabin for superior ride comfort to boost driver efficiency.

  • GVW
    GVW16000 kgs
  • Engine
    EngineE683
  • Power
    Power145 hp
  • Torque
    Torque460 Nm
  • Transmission
    Transmission 5 Speed
  • Cargo Body Length
    Cargo Body Length18ft, 20 & 24ft

SPECIFICATIONS Pro 5016
GVW 16000 kg
Max Power 145 hp @ 2800 rpm
Max Torque 460 Nm @1400 rpm
Clutch Type Hydraulically actuated
Clutch Diameter330 mm
Gearbox ET60S5 5 forward & 1 Reverse
Front Axle Forged "I" beam
Rear Axle Fully floating banjo type
Chassis Type  Rolled C-channel ladder type joggle, 230x76x6 mm
Suspension Front: Semi elliptical laminated leaf springs with hydraulic type double acting shock absorbers Rear: Semi elliptical laminated leaf spring with helper suspension
Steering  Power Steering
Gradiability  23%
Max Speed 88 kmph
Fuel Tank 220 litres (18FT, 20 FT), 395 litres (24FT)
Electrical   12 V
Tyre 10x20-16PR
Wheelbase   4300 / 4800 / 5340 mm

White goods
Vegetable
Market Load
LPG Cylinder
Food Grains
Courier & Parcel
Cement
Best in class fuel efficiency
Enhanced Reliability and Durability
enhanced driver efficiecy
Tough and robust aggregates
