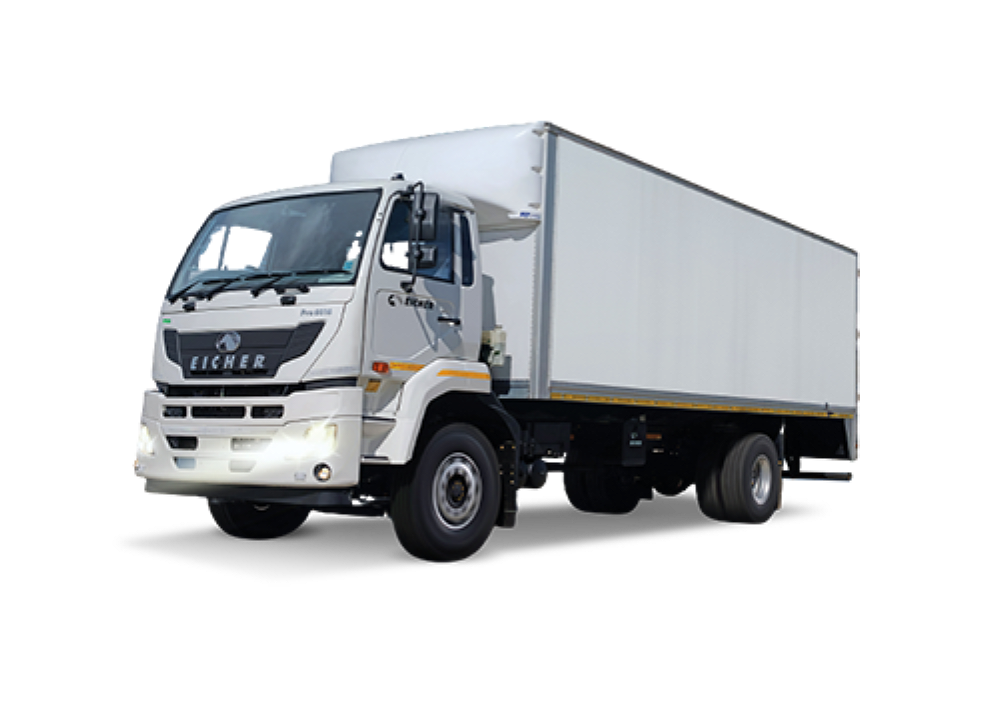

EicherPro 6016
Eicher Pro 6016 is the new generation 16 ton GVW truck equipped with highly fuel efficient 4 cylinder 4 valve engine built on a global platform and a new generation cabin with host of safety and comfort features.
GVW16000 kgs
EngineVEDX5
Power210 hp
Torque825 Nm
Transmission 6 Speed
Cargo Body Length24ft
| SPECIFICATIONS | Pro 6016 |
|---|---|
| GVW | 16000 kg |
| Wheel Base | 5340 mm |
| Front OverHang | 1423 mm |
| Rear Overhang | 2824 mm |
| Cabin Width | 32300 mm |
| TCD | 18 m |
| Ground Clearance | 230 mm |
| Engine Type | VEDX5, 4 Valve, 4 cylinder EuroIII |
| Max Power | 210 hp @ 2200 rpm |
| Max Torque | 825 Nm @1200-1600 rpm |
| Clutch Type | Spring Loaded push type |
| Clutch Diameter | 395 mm |
| Gearbox | ET70S6, 6 Forward & 1 Reverse |
| Chassis Type | Joggled frame with 285 x 76 x 7 mm |
| Suspension | Front: Semi elliptical laminated leaf springs with double acting telescopic shock absorbers Rear: Semi elliptical laminated leaf spring |
| Steering | Tilt and Telescopic hyadraulic power steering |
| Fuel Tank | 220 litres |
| Electrical | 24 V, 150Ah |
| Tyre | 80R22.5-16PR Tubeless Radial |
| Maximum Speed(Kmph) | 110 |
| Gradiability | 34.50% |
| Varients | CWC, CBC, FSD, HSD |
Market Load
Container
Tanker
Reefer
Cement
Best in class fuel efficiency
Unmatch cabin comfort
superior uptime
Faster turn around time
Optimized maintenance cost
