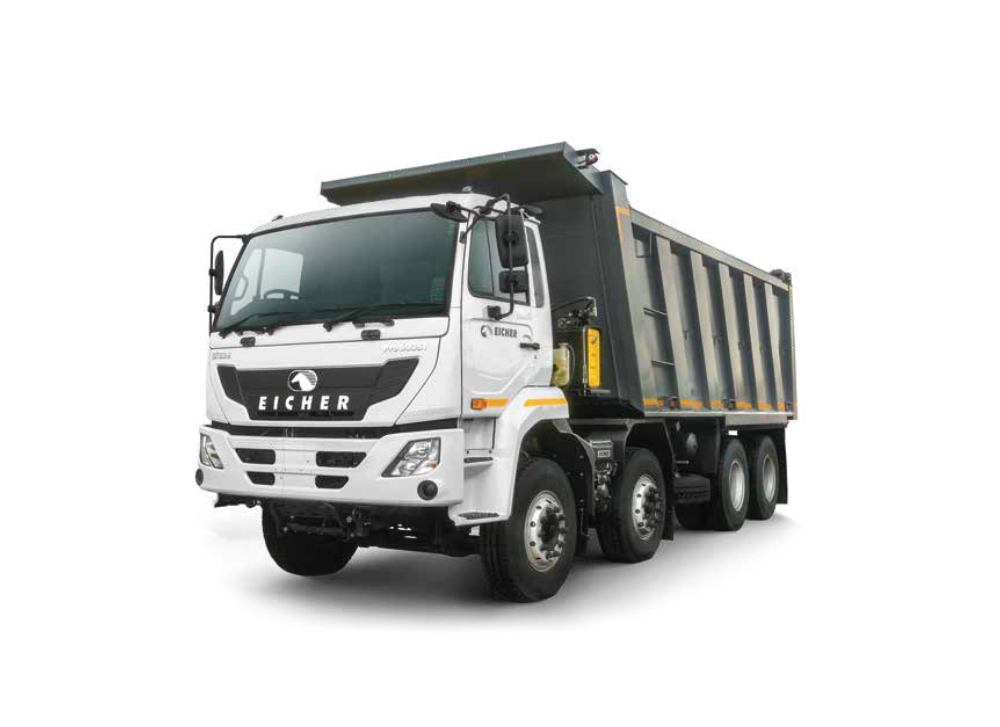

The next generation 31 ton GVW tipper targeting application like aggregate transport, earthwork, coal, limestone, etc.. It is built on the philosophy 'Do More' and deliver superior performance, reliability, higher productivity & greater revenue.
SPECIFICATIONS | Pro 6031T |
---|---|
GVW(Kg) | 31000 |
Wheelbase(mm) | 5285 |
Front Overhang (mm) | 1430 |
Rear Overhang (mm) | 1498 |
Engine Type | MDEP8 BS3 |
Max Power | 280 hp @ 2200 rpm |
Max Torque | 1050 Nm @1100-1700 rpm |
Clutch Type | Pull type, Booster actuated |
Clutch Diameter | 430mm |
Gearbox | ET140S9 |
Rear Axle Ratio | VECV Tander, 440 SRT |
Final Driver Ratio | 5.286 |
Chassis Type | Rolled C-Channel joggle type |
Suspension | Front: Parabolic silent suspension with ARB, Double acting telescopic FR shock absorber, threaded bush Rear: Bogie suspension |
Steering | Power steering |
Gradeability(%) | 47 |
Fuel Tank (L) | 315 |
Electrical | 2 x 12V - 120 Ah |
Tyre | Front: 11x20- Cross ply RIB type Rear: 11x20- Cross ply LUG type |
