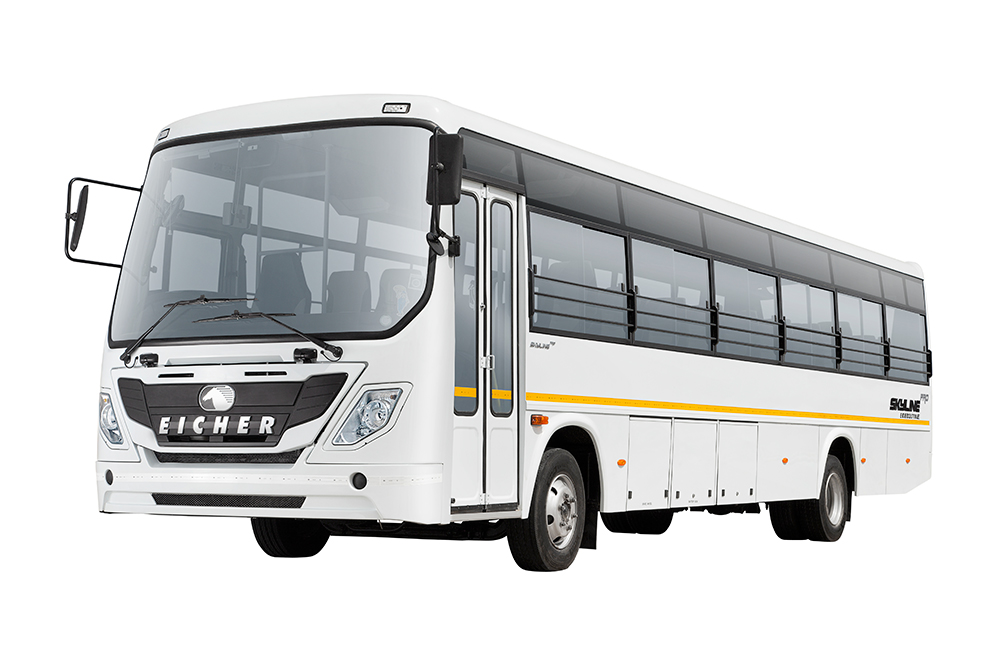

The Eicher Skyline Pro 3008 H is a new generation staff bus for enhanced passenger comfort and safety, pleasing aesthetics, superior build quality, best-in-class fuel efficiency and ease of maintenance. The bus has a wheelbase of 4320mm along with a seating capacity of 36.
SPECIFICATIONS | Skyline Pro 3008 H | |
---|---|---|
Dimension | GVW(Kg) | 8500 |
Overall Length (mm) | 8800 | |
Wheelbase(mm) | 4320 | |
Front overhang (mm) | 1914 | |
Rear overhang (mm) | 2527 | |
Ground Clearance (mm) | 185 | |
Displacement in cc | 3298 | |
Engine | Type | E483 TCI, BSIII |
Max Power | 107 HP @2800 rpm | |
Max Torque | 330 Nm @1400 rpm | |
Clutch | Size | 310 mm |
Transmission | 5 Forward and 1 Reverse | |
Chassis | Type | Domex Chassis |
Dimension (LXWXH) | 180 X 65 X 5 mm | |
Brake | Dual circuit 'S' cam full air brakes | |
Electrical | Battery | 12x2 V, 130 Ah |
Braking System | Dual circuit 'S' cam full air brakes | |
Tires and Wheels | Front & Spare and Rear | Tubeless radial- 235/75 R17.5, 14PR |
Others | Steering Type | Tilt and Telescopic, power steering |
Fuel Tank Capacity (L) | 100 | |
Suspension System | Type | Parabolic |
TCD (m) | 15.2 |
