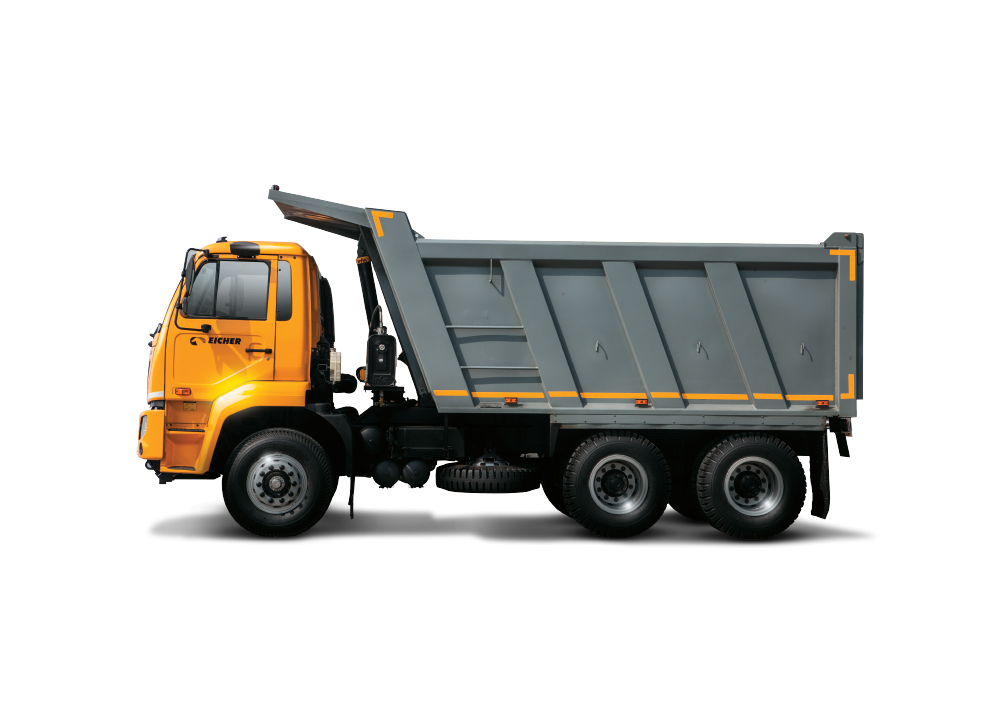

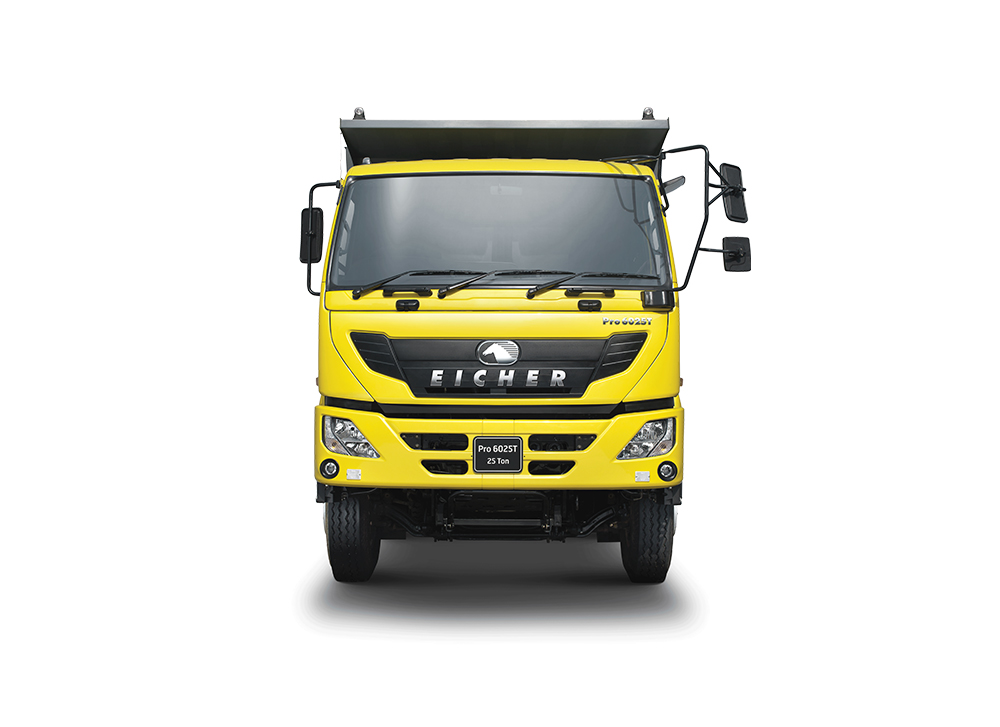

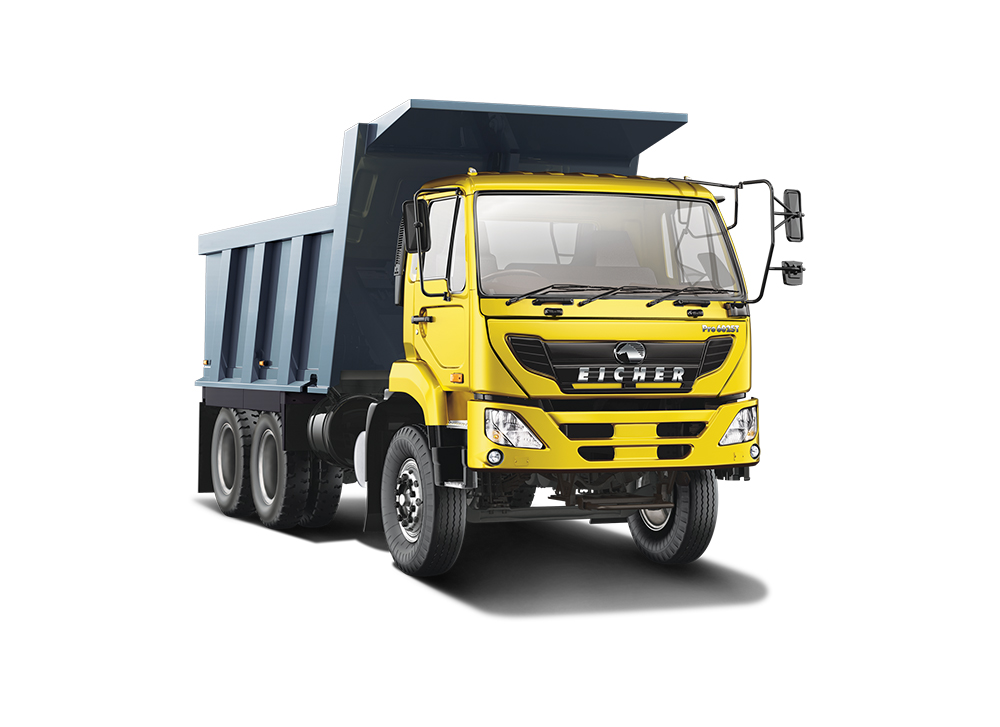

EicherPro 6025T

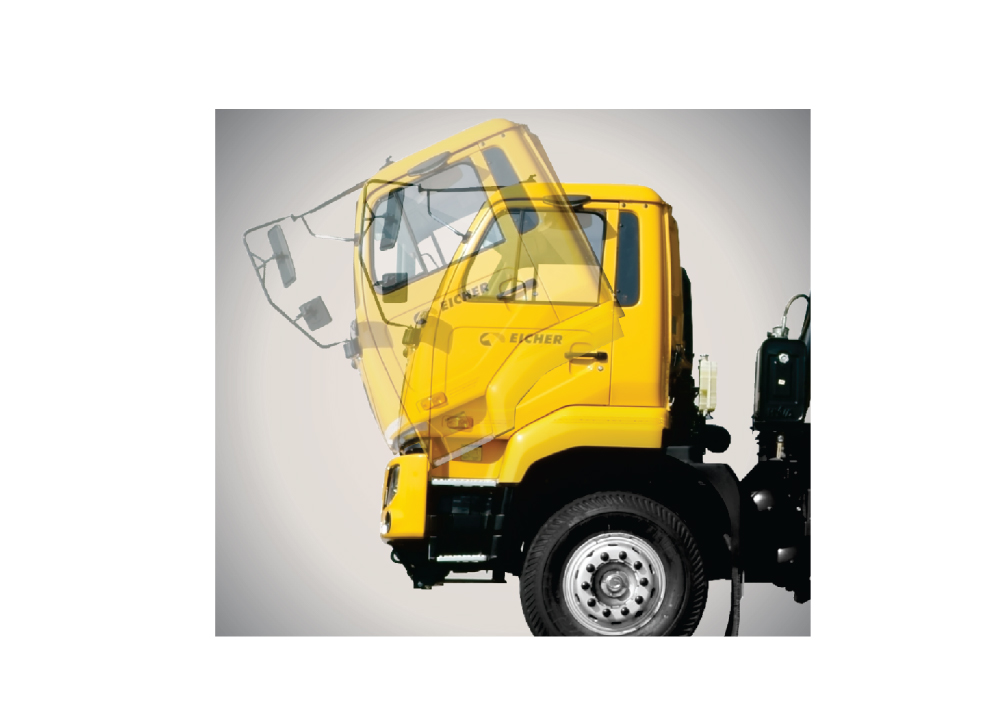

Eicher Pro 6025T is the new generation 25 ton GVW tipper equipped with highly fuel efficient VEDX8, 6 cylinder,7.7 litre CRS engine designed in association with Volvo Group and a Next Gen cabin with state of art features.
GVW25000 kg
EngineVEDX8
Power220 hp
Torque850 Nm
Transmission 9 Speed
Tipper Body Size14/16 CuM
| SPECIFICATIONS | Pro 6025T |
|---|---|
| GVW(Kg) | 25000 kg |
| Body Size | 16 Cum Box & 14 Cum Rock |
| Wheelbase(mm) | 4000 mm |
| Front Overhang (mm) | 2085 mm |
| Rear Overhang (mm) | 1926 mm |
| Engine Type | VEDX8 BSIII 7.7 liters |
| Max Power | 220 hp @ 2200 rpm |
| Max Torque | 850 Nm @1100-1700 rpm |
| Clutch Type | Booster assisted pull type |
| Clutch Diameter | 430mm |

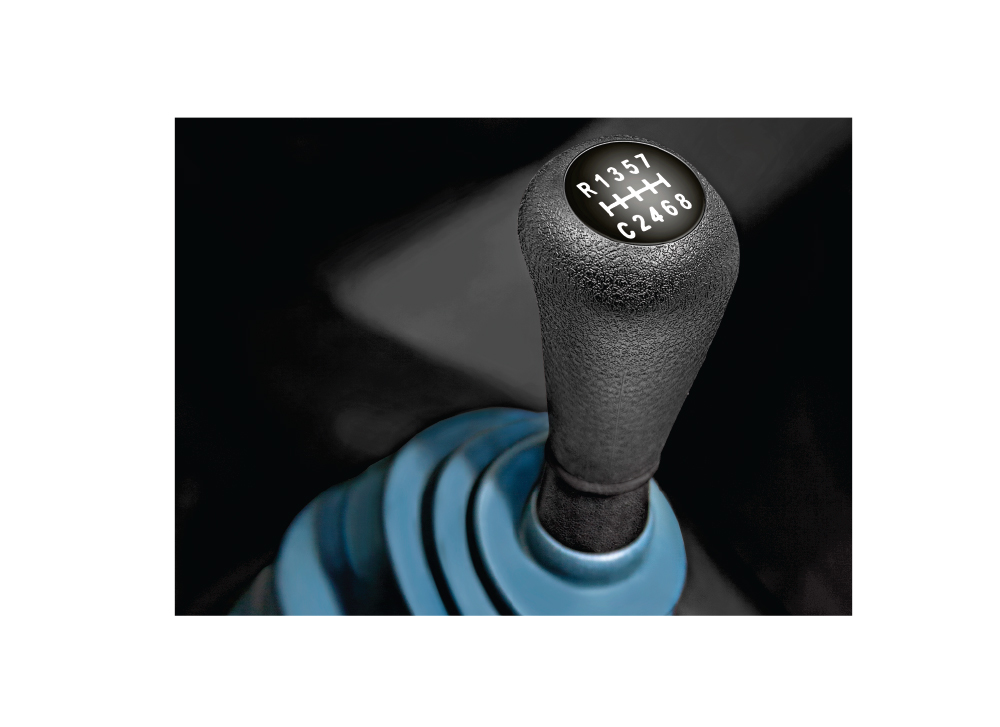

| Gearbox | ZF make, 9 Forward 1 Reverse |
| Rear Axle Ratio | Meritor Tandem-Fully floating Banjo |
| Final Driver Ratio | 5.29 |
| Chassis Type and Dimension | Domex 650 ladder type joggle frame, 285 x 76 x 7 mm |

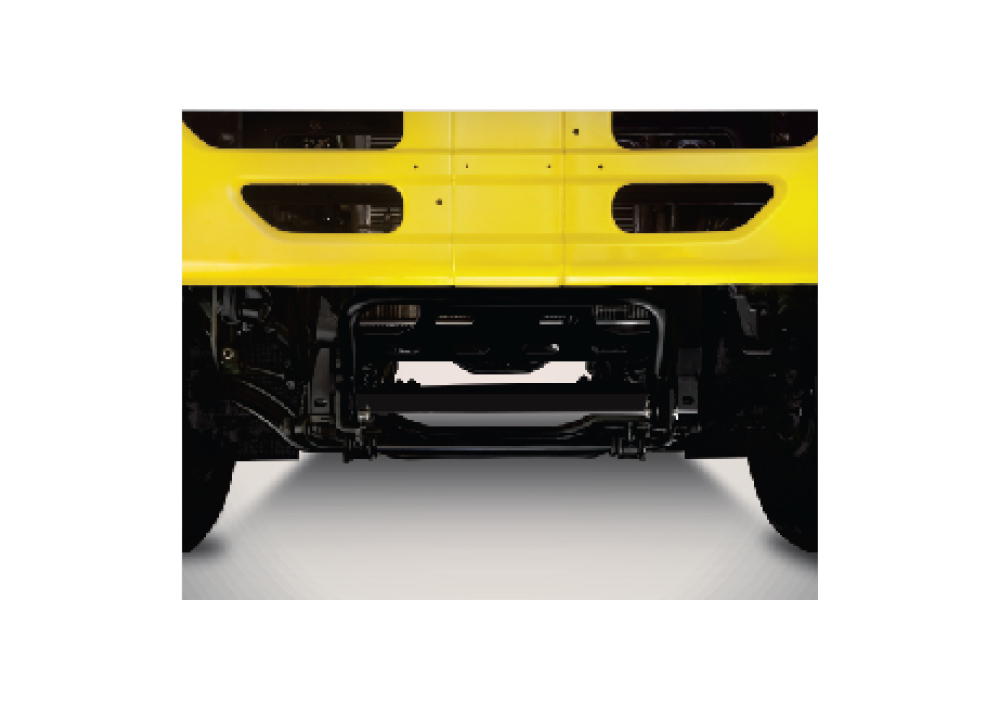

| Suspension | Front: Semi-Elliptical with anti roll bar Rear: Bogie suspension Hydraulic double acting telescopic type at front only |
| Shock Absorber | Hydraulic Double Acting Telescopic type at front only |
| TCD | 14.5 m |
| Steering | Tilt and Telescopic hyadraulic power steering |
| Gradeability(%) | 42.5 |
| Fuel Tank (L) | 220 litres |
| Electrical | 2 x24 V, 150 Ah |
| Tyre | 11R-22.5 (Tubeless)- 16PR |
| Max Speed | 79.6 kmph |
Stone
Blue Metal
Road Construction
Sand
High Fuel Efficiency

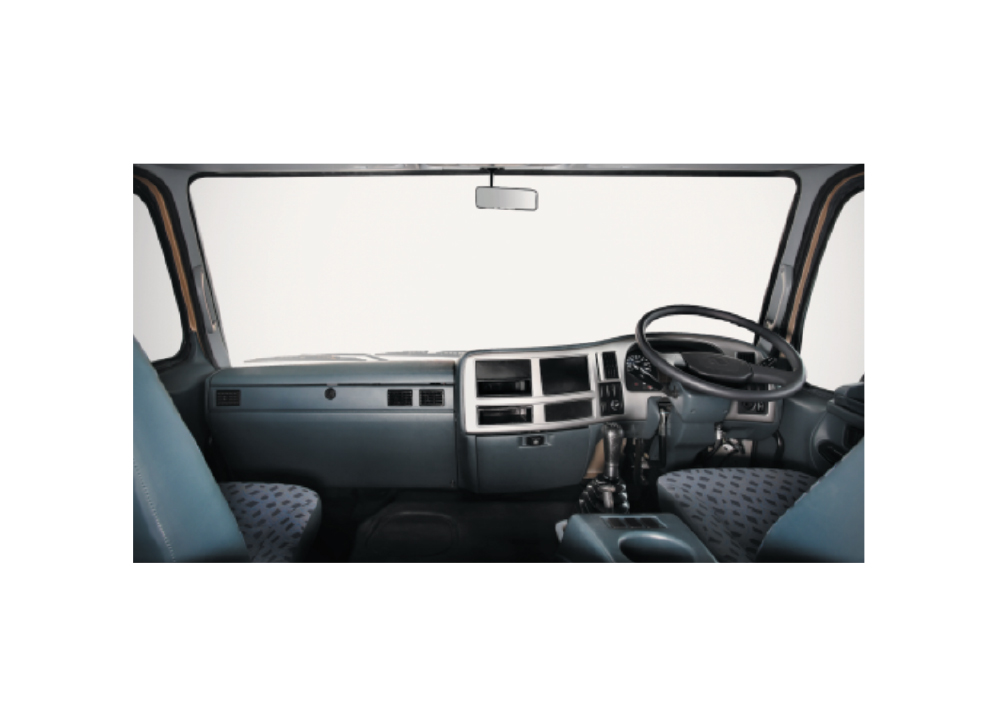

Unmatch Cabin Comfort
Best In Class Torque At Wheel
High Reliability and Durability
Optimized Maintenance Cost
Superior Uptime
