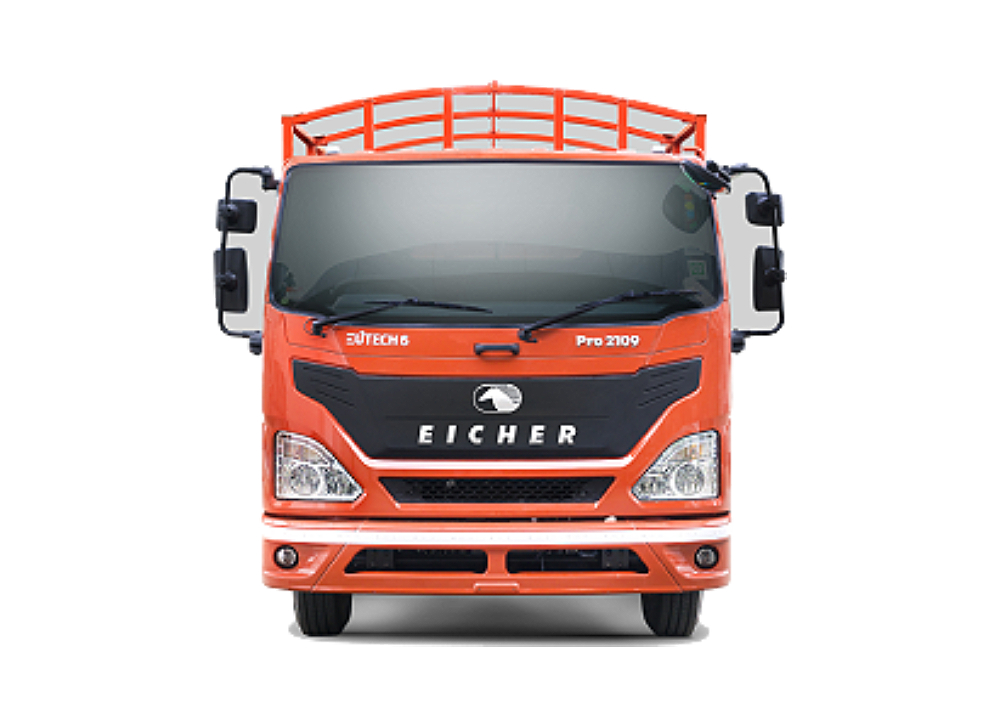

Eicher Pro 2109 Turbo+ CNG
Introducing Eicher Pro 2109 Turbo+ CNG with the power of Turbo+ for improved mileage, comfort, safety and reliability. Its best-in-class mileage and revolutionary driver comfort puts it miles ahead of the closest competition & its Next-gen technology will remain ahead of the curve for years to come. The new Badshah of the roads, the Eicher Pro 2109 Turbo+ CNG promises to make you the Badshah of your business.
GVW11.45 t
EngineE483 CNG TC
Power 115 HP
Torque360 Nm
TransmissionET35S5
Cargo Body TypeCBC / HSD
- Specification
- Technology
- Applications
| SPECIFICATIONS | Pro 2109 Turbo+ CNG | |||
|---|---|---|---|---|
| GVW (Kg) | 11449 | |||
| Wheelbase (mm) | 3970 | 4420 | 5170 | 5170 |
| Cargo body length (mm) | 5352 | 6110 | 6860 | 7364 |
| Cargo body width (mm) | 2125 | 2125 | 2125 | 2125 |

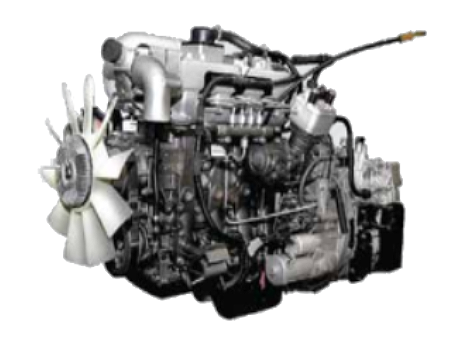

| Engine | E483 BSVI CNG TC | |||
| Max. Power Output | 85kW (115HP) @ 2600 rpm | |||
| Max. Torque Output | 360Nm @ 1600-2000rpm | |||
| Emission | BS VI | |||
| Fuel Type | CNG | |||
| Gearbox | ET3555 | |||
| Gear Shift | 5 speed with hybrid gear shift lever | |||
| Gradeability (%) | 24 | |||
| Clutch Dia (mm) | 310 | |||
| Steering | Tilt and telescopic Standard Power Steering | |||
| Turning Circle Diameter (m) | 15.6 | 17.4 | 20.3 | 20.3 |
| Ground Clearance (mm) | 195 | |||
| Fuel Tank (ltr)# | 440 | 520 | 580 | 580 |
| Battery | 12V-130Ah | |||
| Brakes | Air Brakes (Drum) | |||
| Suspension | Front- Semi- Elliptic Laminated Leafs ( With Shock Absobers) Rear- Semi - Elliptical Laminated Leaves with helper springs |
|||
| Tyre Size | 8.25x16 - 16PR & 8.25R16 16PR | |||
| Cabin | 2m wide Tiltable cabin | |||
**For more details on warranty, please refer operator manual.
#Maximum fual tank capacity. Available with other fuel tank capacities also.
