Eicher Pro 3012
Redefining levels of performance & profitability to stay ahead in business with Eicher Pro 3012 with Next gen E494 engine & 7 speed gearbox. Its revolutionary driver comfort, cutting edge technology, best in class safety and reliability along with superior overall performance keep you “Stay Ahead”
GVW11.99 t
Engine3.8 litres
Power 160 kW
Torque500 Nm
Gear Type7 Speed
TransmissionET 50S7
Cargo Body TypeCBC / HSD
- Specification
- Technology
- Applications
| Specifications | Pro 3012 | |
|---|---|---|
| GVW | 11990 kg | |
| Wheelbase | 4550 mm | 5550 mm |

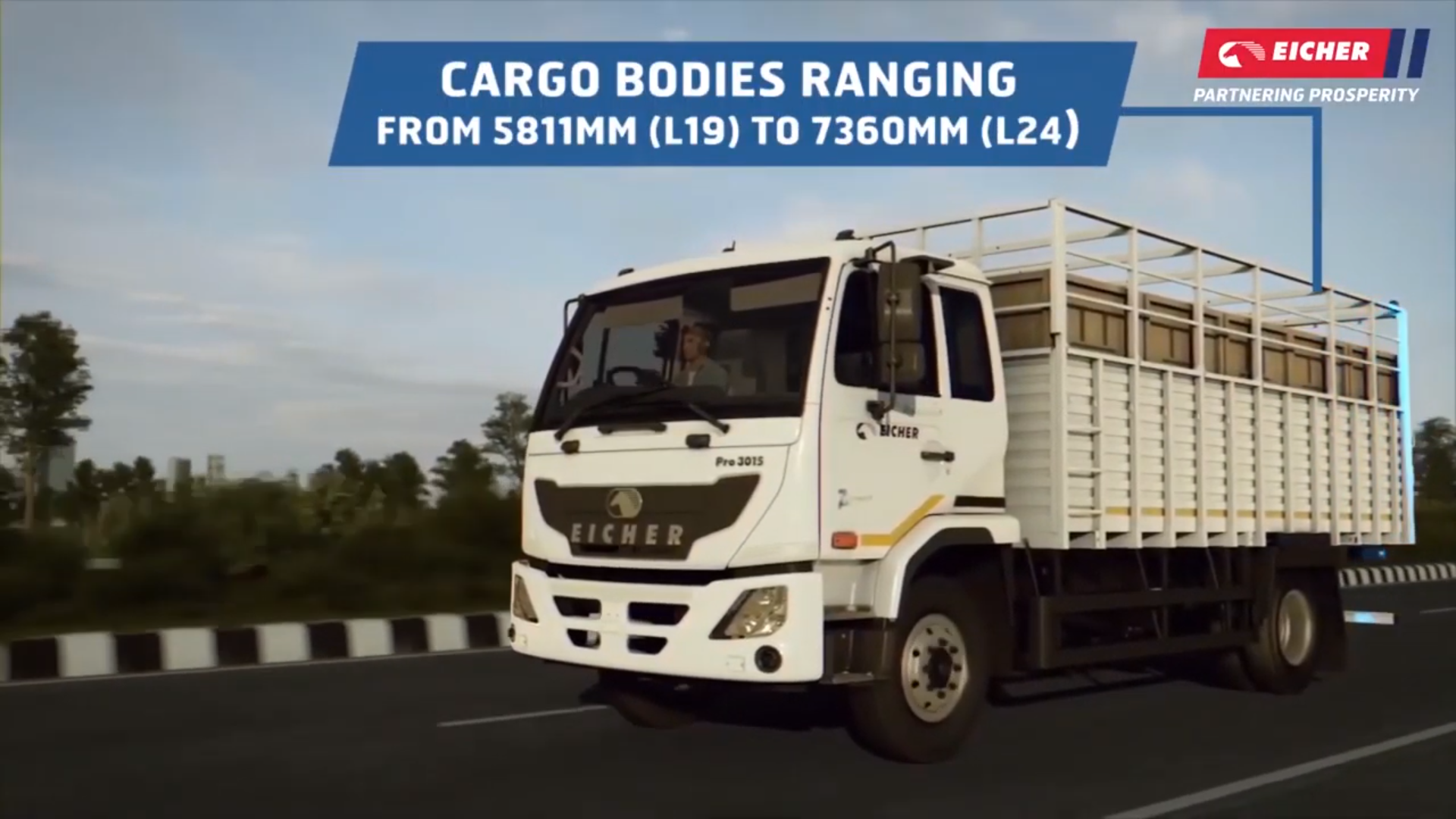

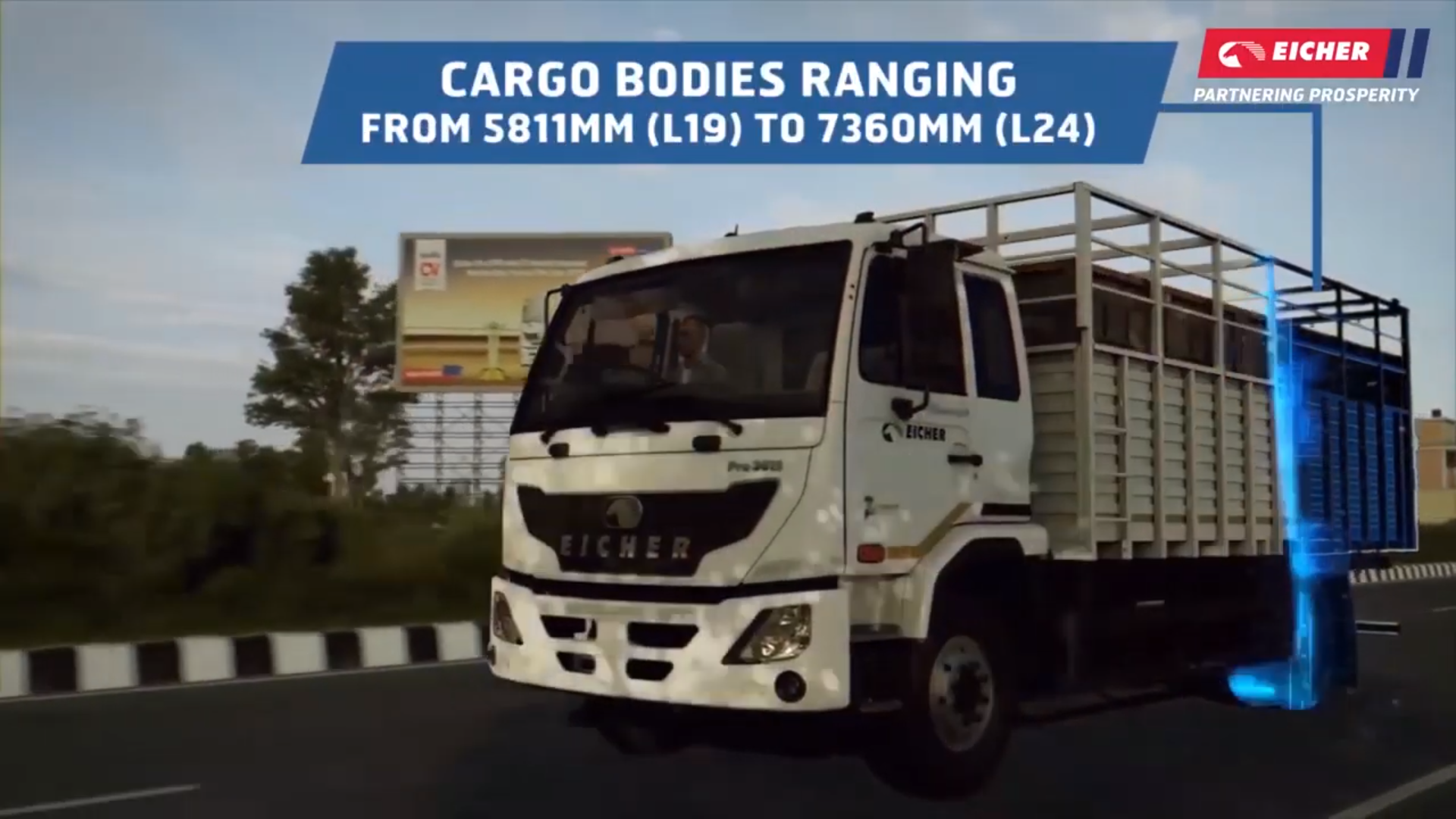

| Cargo Body Length | 6112 mm | 7364 mm |
| Cargo Body Width | 2125 mm | 2338 mm |
| Engine | E494 4 Cyl 4V CRS BSVI | |
| Max. Power Output | 120 kW/160 hp @2600 rpm | |
| Max. Torque Output(NM) | 500 Nm @1200-1800 rpm | |
| Battery | 12V - 100Ah | |
| Suspension | F - Front - Parabolic with shock absorber | |
| R - Rear - Semi elliptical laminated leaves with helper spring | ||
| Clutch Diameter | 330 mm | |
| Gearbox | ET 50S7 | |
| Brakes (Service) | Full Air brake divided line with auto slack adjuster at all wheel ends and APDA | |
| Ground Clearance | 220 mm | |
| Fuel Tank Capacity | 190 | 425 |
| Tyre Size | 8.25R20 - 16PR Radial Tyres | |
| Maintenance Interval (kms) | 80000 | |
| Steering | Hydraulic Assisted Power Steering (Tilt & Telescopic) | |
| Gradeability (%) | 30 | |
| Warranty** | 3 Years/ Unlimited KMs on vehicle | |
| 4 Years/ Unlimited KMs on Engine and Gearbox | ||
**For more details on warranty, please refer operator manual.
