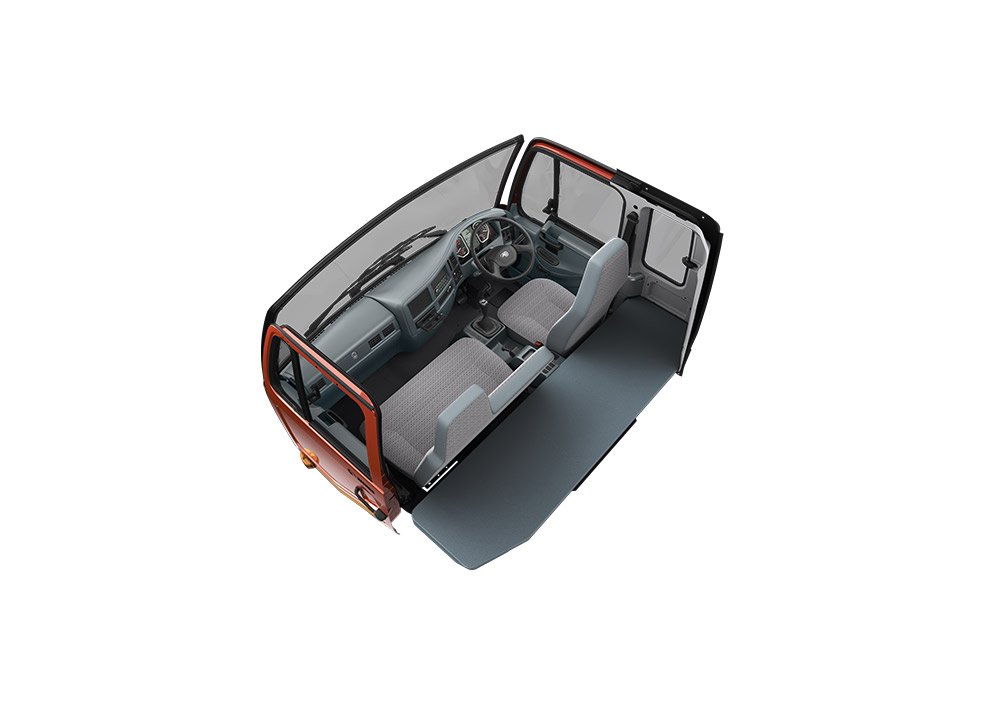

- Interior
- Video
Eicher Pro 3015XP
Redefining levels of performance & profitability to Stay Ahead in business with Eicher Pro 3015XP, the industry’s first 17.5 t GVW truck . It is packed with Eicher’s proven E494 engine & 7 Speed gearbox. Its revolutionary driver comfort, reliability and safety along with superior performance keeps you ‘Stay Ahead’.
GVW17.5 t
Engine3.8 litres
Power 135Kw/120Kw
Torque600Nm/500Nm
Gear Type7 Speed
- Specification
- Technology
- Applications
| SPECIFICATIONS | Pro 3015XP | |||
|---|---|---|---|---|
| GVW | 17500 kg | |||
| Wheelbase | 4490 mm | 5490 mm | 5490 mm | |
| Cargo Body Length | 6112 mm | 6782 mm | 7364 mm | |
| Cargo Body Width | 2338 mm | |||
| Engine | E494 4 Cyl 4 V CRS BS VI | |||
| Max. Power Output | 135Kw / 120Kw @2600 rpm | |||
| Max. Torque Output | 600Nm / 500Nm @ 1200-1800 rpm | |||
| Emission | BSVI | |||
| Fuel Type | Diesel | |||
| Transmission | ET60S7 | |||
| Gear Type | Hybrid Gear Shift | |||
| Clutch Dia | 362 mm | |||
| Gradeability (%) | 24/20 | |||
| Steering | Tilt and telescopic | |||
| Turning Circle Diameter | 17.8 m | 21.6 m | 21.6 m | |
| Ground Clearance | 241 mm | |||
| Battery | 24V - 100Ah / 12V - 100Ah | |||
| Fuel Tank Capacity | 190 litres | 425 / 190 litres | ||
| Brakes (Service) | Full Air brake divided line with auto slack adjuster at all wheel ends and APDA | |||
| Suspension | Front- Parabolic with shock absorber | |||
| Read- Semi elliptical laminated leaves with helper spring | ||||
| Tyre Size | 295/90 R 20 | |||
| Cabin | 2.1m Cockpit Design Sleeper cabin | |||
| Warranty** | 3 years/unlimited km on vehicle | |||
| 4 years/unlimited km on engine and gearbox | ||||
**For more details on warranty, please refer operator manual.
